| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T02_9000006546_55994cztM0_level2.fits | modeM0/AS1A14_066T02_9000006546_55994cztM0_level2_quad_clean.evt |
| Size (bytes) | 389,200,320 | 91,779,840 |
| Size | 371.2 MB | 87.5 MB |
| Events in quadrant A | 4,144,790 | 584,831 |
| Events in quadrant B | 3,261,359 | 636,446 |
| Events in quadrant C | 3,216,774 | 567,482 |
| Events in quadrant D | 3,285,618 | 543,692 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16526 | 1 |
| B | 0 | 14126 | 1 |
| C | 0 | 14392 | 1 |
| D | 0 | 14300 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6399 | 304 | 4.750742% |
| B | 6400 | 121 | 1.890625% |
| C | 6400 | 112 | 1.750000% |
| D | 6400 | 72 | 1.125000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7314 | 6399 | 267 | 267 | 3.65% | 4.17% |  |
| B | 7315 | 6400 | 44 | 44 | 0.60% | 0.69% |  |
| C | 7315 | 6400 | 95 | 95 | 1.30% | 1.48% |  |
| D | 7315 | 6400 | 42 | 42 | 0.57% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 772470 | 4633.79 | 677 | 660 | 166.6 |
| A | 12 | 115 | 287267 | 1720.73 | 677 | 660 | 166.6 |
| A | 0 | 8 | 278318 | 1667.0 | 677 | 660 | 166.6 |
| B | 2 | 249 | 193788 | 1330.41 | 673 | 649 | 145.2 |
| B | 0 | 199 | 73372 | 500.94 | 673 | 649 | 145.2 |
| B | 0 | 173 | 60788 | 414.26 | 673 | 649 | 145.2 |
| C | 12 | 254 | 490082 | 2706.75 | 657 | 649 | 180.8 |
| C | 14 | 80 | 55900 | 305.56 | 657 | 649 | 180.8 |
| C | 15 | 199 | 30265 | 163.79 | 657 | 649 | 180.8 |
| D | 2 | 249 | 142768 | 749.14 | 667 | 638 | 189.7 |
| D | 6 | 42 | 116072 | 608.43 | 667 | 638 | 189.7 |
| D | 7 | 129 | 89968 | 470.84 | 667 | 638 | 189.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

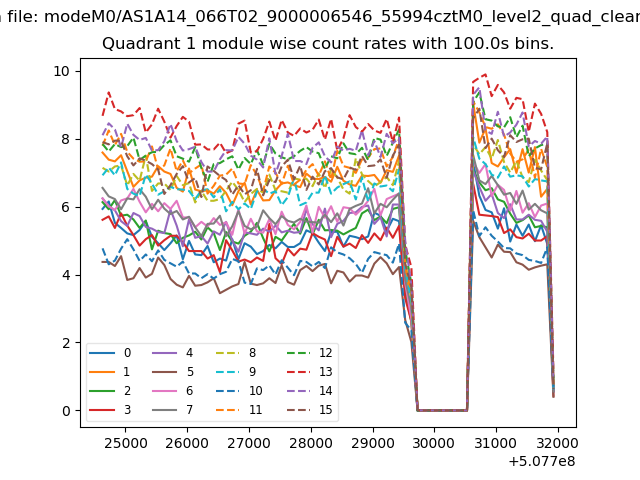

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

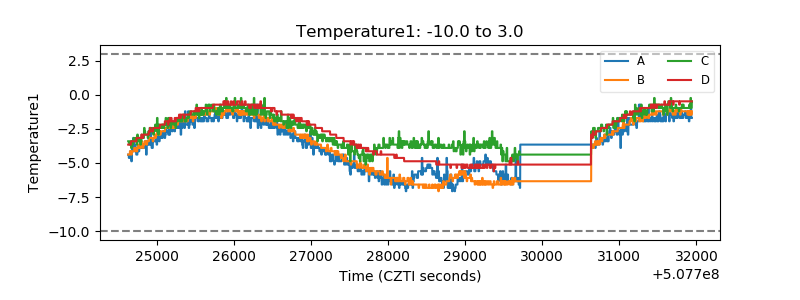

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

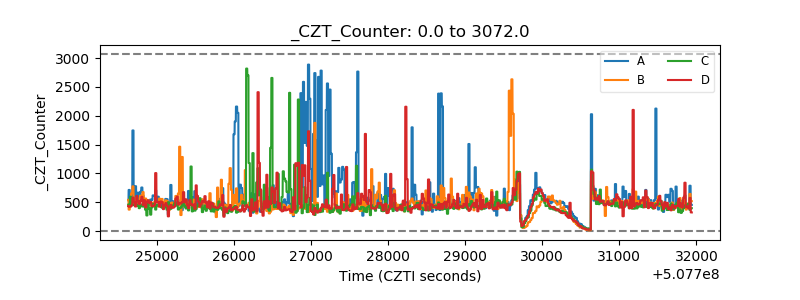

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

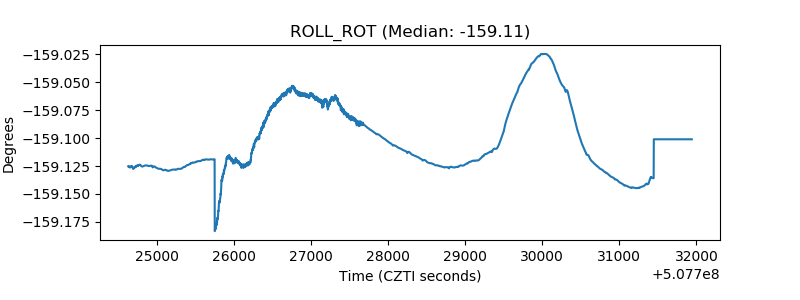

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
