| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T02_9000006546_55998cztM0_level2.fits | modeM0/AS1A14_066T02_9000006546_55998cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,340,800 | 90,406,080 |
| Size | 518.2 MB | 86.2 MB |
| Events in quadrant A | 5,818,063 | 543,035 |
| Events in quadrant B | 3,877,526 | 669,112 |
| Events in quadrant C | 4,678,661 | 548,402 |
| Events in quadrant D | 5,246,063 | 534,121 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21756 | 2 |
| B | 0 | 15912 | 2 |
| C | 0 | 18600 | 2 |
| D | 0 | 19910 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6346 | 991 | 15.616136% |
| B | 6346 | 104 | 1.638828% |
| C | 6346 | 580 | 9.139616% |
| D | 6346 | 414 | 6.523795% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7526 | 6347 | 955 | 955 | 12.69% | 15.05% |  |
| B | 7526 | 6347 | 46 | 46 | 0.61% | 0.72% |  |
| C | 7526 | 6347 | 580 | 580 | 7.71% | 9.14% |  |
| D | 7526 | 6347 | 381 | 381 | 5.06% | 6.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 1412029 | 8828.09 | 644 | 629 | 159.9 |
| A | 4 | 249 | 1215336 | 7597.8 | 644 | 629 | 159.9 |
| A | 0 | 8 | 388190 | 2424.13 | 644 | 629 | 159.9 |
| B | 5 | 236 | 457820 | 3148.12 | 683 | 659 | 145.2 |
| B | 7 | 252 | 142997 | 980.17 | 683 | 659 | 145.2 |
| B | 0 | 199 | 92867 | 634.97 | 683 | 659 | 145.2 |
| C | 12 | 254 | 1577700 | 8803.0 | 642 | 636 | 179.2 |
| C | 9 | 38 | 420341 | 2342.75 | 642 | 636 | 179.2 |
| C | 14 | 254 | 46248 | 254.6 | 642 | 636 | 179.2 |
| D | 11 | 129 | 1536378 | 8221.33 | 650 | 619 | 186.8 |
| D | 8 | 240 | 773412 | 4136.97 | 650 | 619 | 186.8 |
| D | 3 | 176 | 91019 | 483.94 | 650 | 619 | 186.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

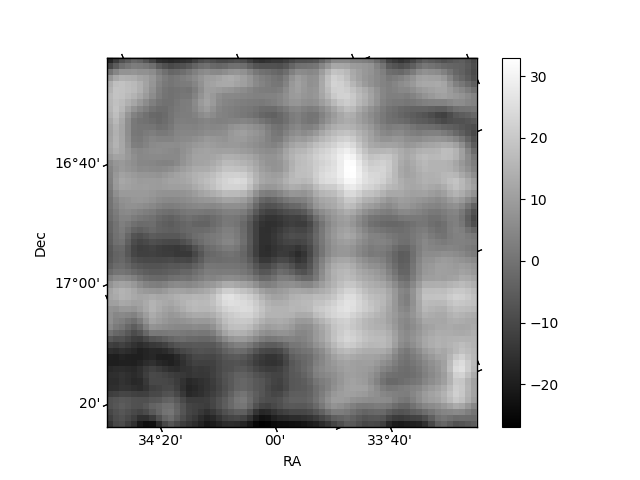

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

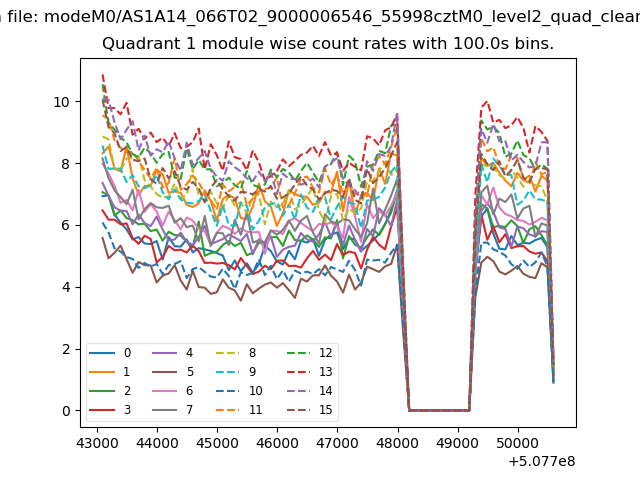

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

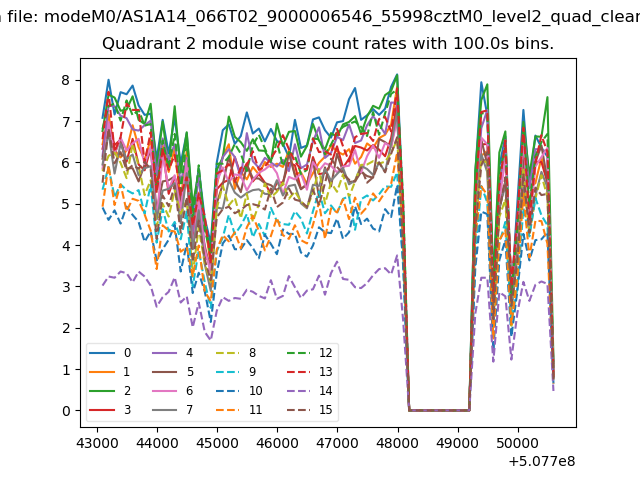

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

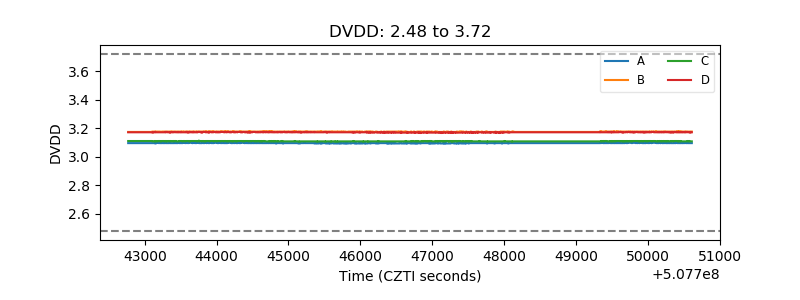

| D_VDD |  |

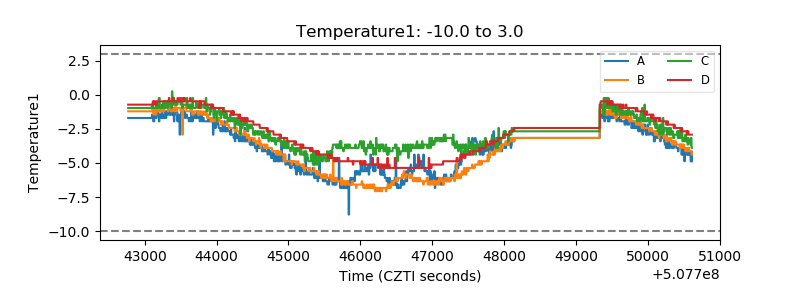

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

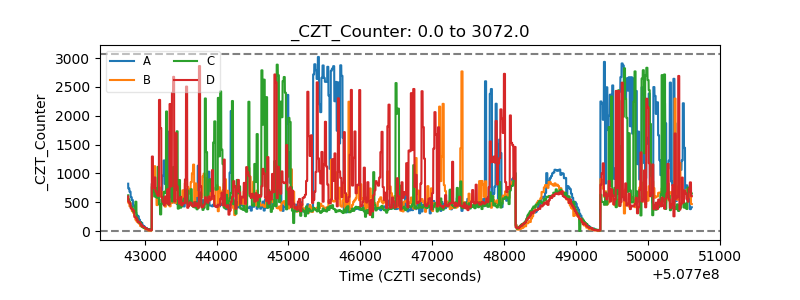

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

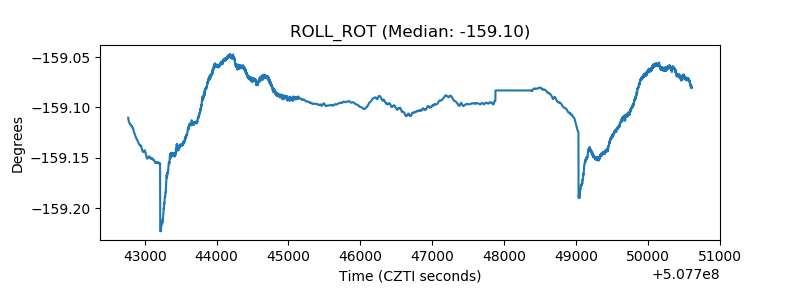

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

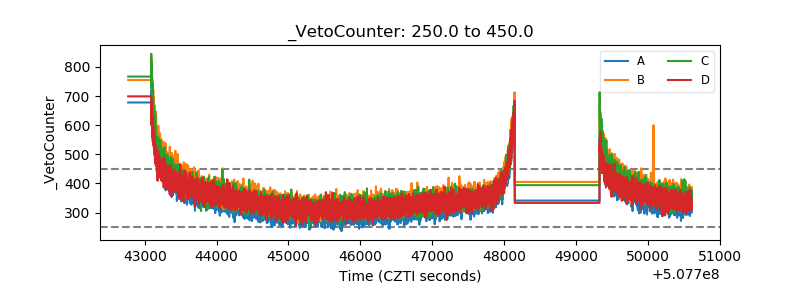

| Veto Counter |  |
