| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T02_9000006546_56017cztM0_level2.fits | modeM0/AS1A14_066T02_9000006546_56017cztM0_level2_quad_clean.evt |
| Size (bytes) | 775,696,320 | 112,106,880 |
| Size | 739.8 MB | 106.9 MB |
| Events in quadrant A | 10,416,762 | 629,646 |
| Events in quadrant B | 5,941,648 | 786,876 |
| Events in quadrant C | 4,520,581 | 736,166 |
| Events in quadrant D | 7,184,821 | 658,244 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36740 | 1 |
| B | 0 | 23542 | 1 |
| C | 0 | 19897 | 2 |
| D | 0 | 27168 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8394 | 1980 | 23.588277% |
| B | 8395 | 683 | 8.135795% |
| C | 8394 | 266 | 3.168930% |
| D | 8394 | 746 | 8.887300% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

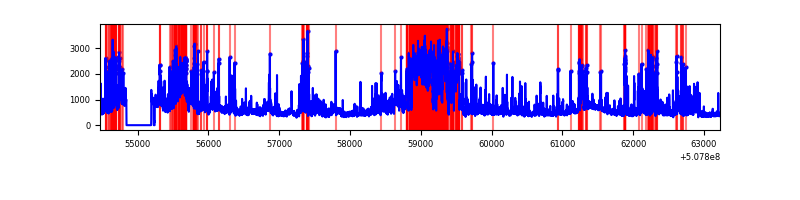

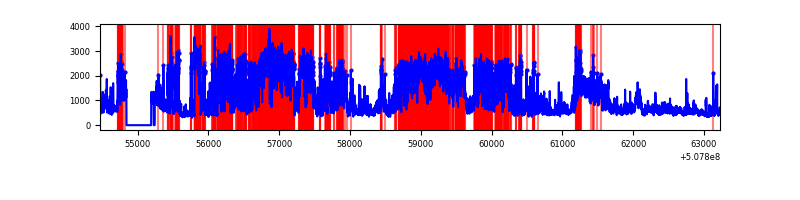

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8759 | 8396 | 1776 | 1776 | 20.28% | 21.15% |  |
| B | 8759 | 8396 | 363 | 363 | 4.14% | 4.32% |  |
| C | 8758 | 8395 | 169 | 169 | 1.93% | 2.01% |  |
| D | 8758 | 8395 | 687 | 687 | 7.84% | 8.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 5682123 | 26468.87 | 869 | 846 | 214.6 |
| A | 0 | 8 | 869073 | 4045.04 | 869 | 846 | 214.6 |
| A | 15 | 32 | 130742 | 605.18 | 869 | 846 | 214.6 |
| B | 5 | 172 | 1369095 | 6923.77 | 904 | 868 | 197.6 |
| B | 5 | 185 | 371582 | 1875.96 | 904 | 868 | 197.6 |
| B | 10 | 247 | 163816 | 824.58 | 904 | 868 | 197.6 |
| C | 15 | 199 | 588804 | 2400.49 | 897 | 890 | 244.9 |
| C | 14 | 80 | 153759 | 624.17 | 897 | 890 | 244.9 |
| C | 12 | 252 | 51691 | 207.42 | 897 | 890 | 244.9 |
| D | 11 | 129 | 2687286 | 10869.1 | 877 | 840 | 247.2 |
| D | 2 | 249 | 386963 | 1562.22 | 877 | 840 | 247.2 |
| D | 6 | 239 | 201959 | 813.71 | 877 | 840 | 247.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

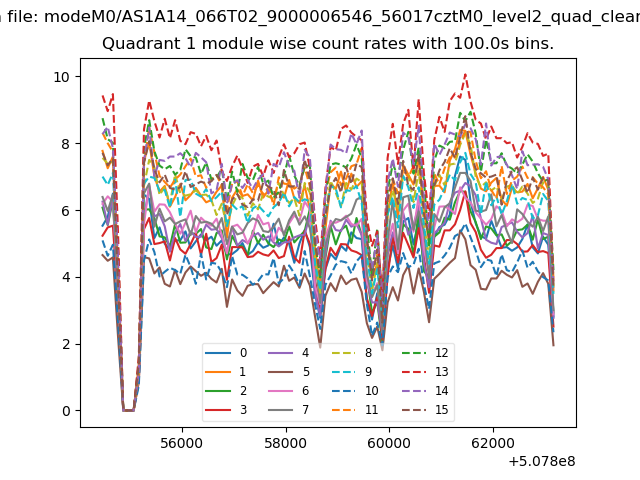

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

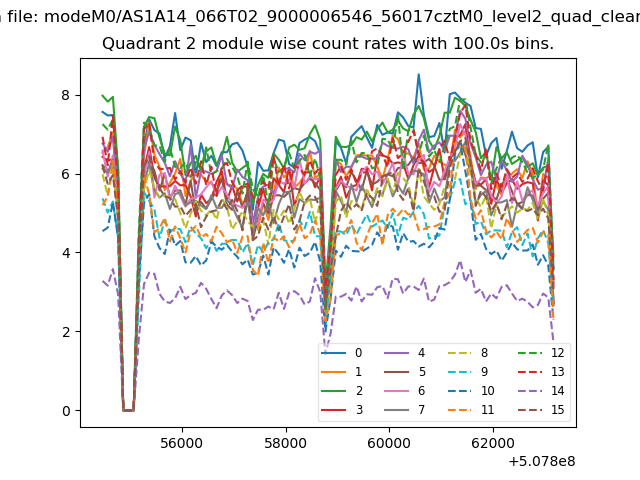

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

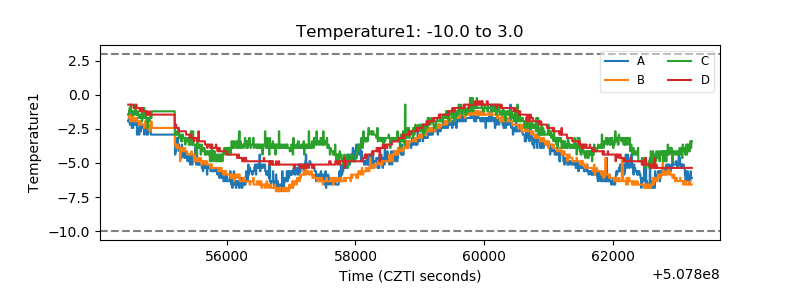

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

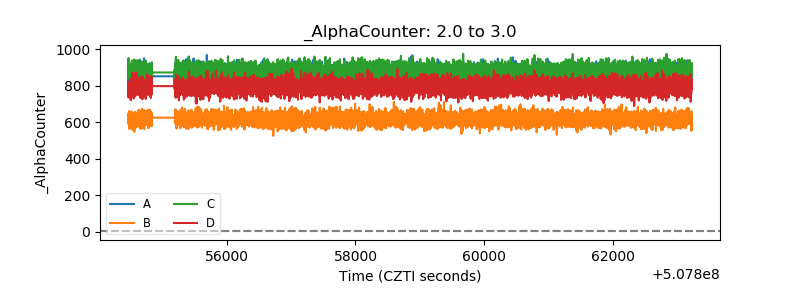

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

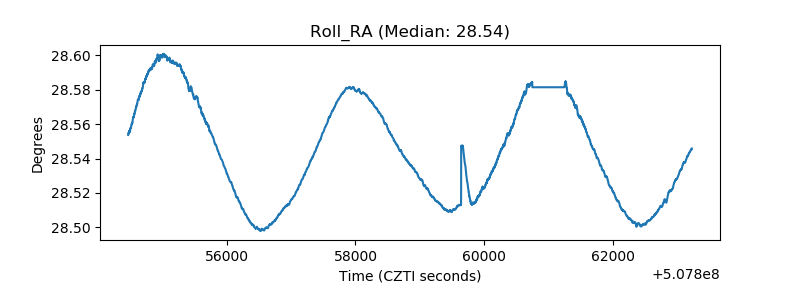

| _Roll_RA |  |
| Veto Counter |  |
