| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006548_56042cztM0_level2.fits | modeM0/AS1A14_083T03_9000006548_56042cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,699,200 | 93,631,680 |
| Size | 447.9 MB | 89.3 MB |
| Events in quadrant A | 3,149,481 | 633,223 |
| Events in quadrant B | 3,747,179 | 657,666 |
| Events in quadrant C | 4,069,604 | 580,725 |
| Events in quadrant D | 5,913,073 | 508,486 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14094 | 1 |
| B | 0 | 15768 | 1 |
| C | 0 | 16906 | 2 |
| D | 0 | 22145 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6527 | 68 | 1.041826% |
| B | 6527 | 286 | 4.381799% |
| C | 6527 | 247 | 3.784281% |
| D | 6527 | 752 | 11.521373% |

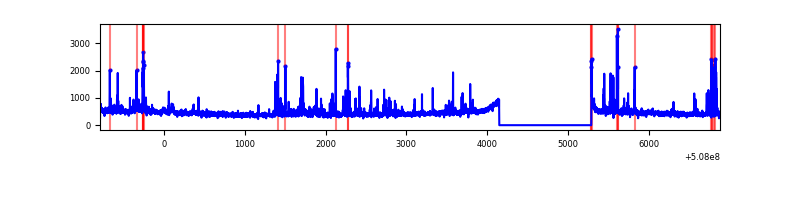

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7667 | 6528 | 24 | 24 | 0.31% | 0.37% |  |
| B | 7667 | 6528 | 163 | 163 | 2.13% | 2.50% |  |
| C | 7667 | 6528 | 190 | 190 | 2.48% | 2.91% |  |
| D | 7667 | 6528 | 710 | 710 | 9.26% | 10.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 139146 | 807.02 | 695 | 678 | 171.6 |
| A | 15 | 32 | 62338 | 359.37 | 695 | 678 | 171.6 |
| A | 3 | 62 | 60018 | 345.85 | 695 | 678 | 171.6 |
| B | 10 | 43 | 513003 | 3558.26 | 681 | 660 | 144.0 |
| B | 0 | 213 | 236872 | 1640.51 | 681 | 660 | 144.0 |
| B | 5 | 185 | 84808 | 584.41 | 681 | 660 | 144.0 |
| C | 2 | 12 | 344061 | 1921.66 | 650 | 644 | 178.7 |
| C | 15 | 147 | 268931 | 1501.25 | 650 | 644 | 178.7 |
| C | 12 | 252 | 260378 | 1453.39 | 650 | 644 | 178.7 |
| D | 11 | 129 | 2722165 | 15048.01 | 629 | 599 | 180.9 |
| D | 10 | 199 | 250356 | 1380.95 | 629 | 599 | 180.9 |
| D | 6 | 239 | 114170 | 627.95 | 629 | 599 | 180.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

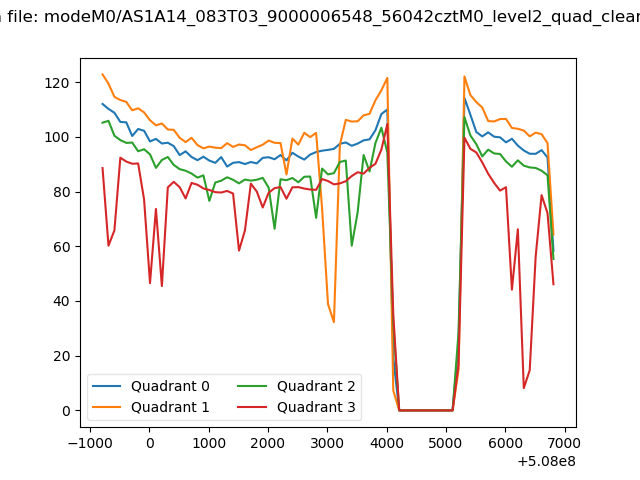

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

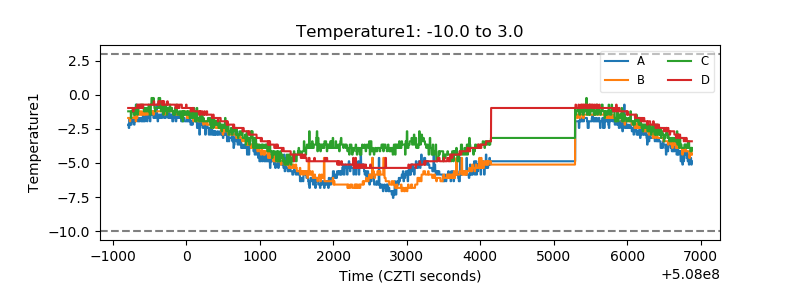

| Temperature 1 |  |

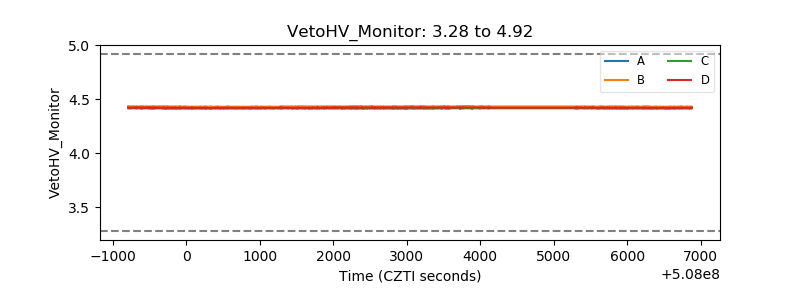

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

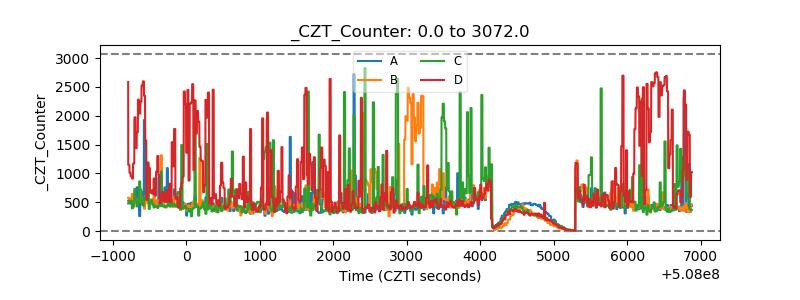

| CZT Counter |  |

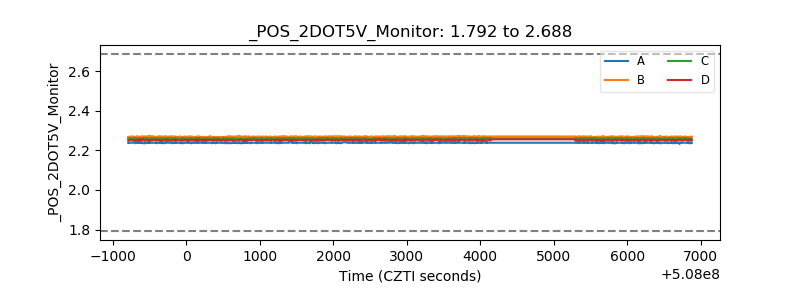

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

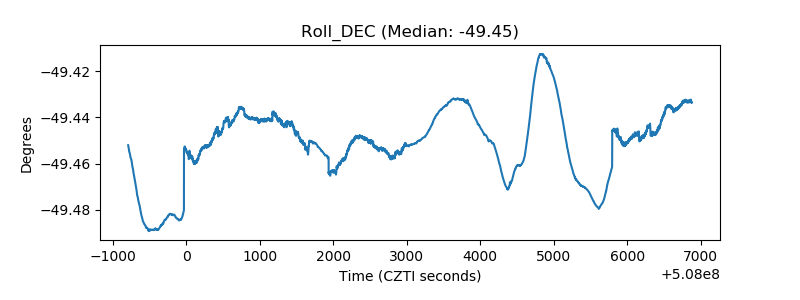

| _Roll_DEC |  |
| _Roll_RA |  |

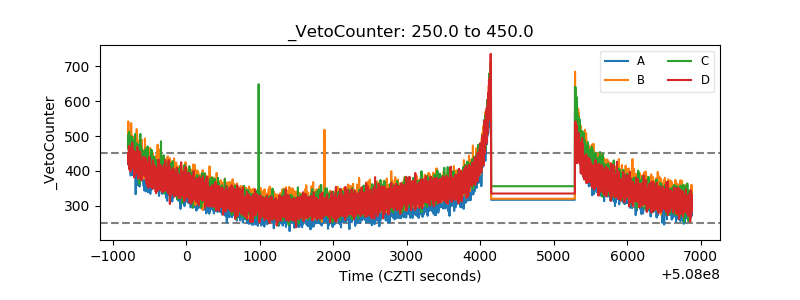

| Veto Counter |  |
