| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006548_56050cztM0_level2.fits | modeM0/AS1A14_083T03_9000006548_56050cztM0_level2_quad_clean.evt |
| Size (bytes) | 874,126,080 | 177,799,680 |
| Size | 833.6 MB | 169.6 MB |
| Events in quadrant A | 8,618,818 | 1,116,096 |
| Events in quadrant B | 6,889,366 | 1,243,515 |
| Events in quadrant C | 6,757,285 | 1,115,438 |
| Events in quadrant D | 9,088,150 | 1,013,124 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35166 | 2 |
| B | 0 | 29915 | 0 |
| C | 0 | 29934 | 3 |
| D | 0 | 36225 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 0 |
| B | 0 | 260 | 0 |
| C | 0 | 260 | 0 |
| D | 0 | 260 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12950 | 868 | 6.702703% |
| B | 12951 | 454 | 3.505521% |
| C | 12950 | 304 | 2.347490% |
| D | 12952 | 584 | 4.508956% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12950 | 12950 | 548 | 548 | 4.23% | 4.23% |  |
| B | 12951 | 12951 | 164 | 164 | 1.27% | 1.27% |  |
| C | 12952 | 12951 | 171 | 171 | 1.32% | 1.32% |  |
| D | 12952 | 12952 | 477 | 477 | 3.68% | 3.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 1703327 | 5132.82 | 1342 | 1306 | 331.6 |
| A | 12 | 79 | 690709 | 2079.05 | 1342 | 1306 | 331.6 |
| A | 0 | 8 | 323173 | 970.66 | 1342 | 1306 | 331.6 |
| B | 5 | 185 | 625492 | 2120.77 | 1363 | 1313 | 294.3 |
| B | 0 | 171 | 172641 | 582.12 | 1363 | 1313 | 294.3 |
| B | 10 | 247 | 163094 | 549.68 | 1363 | 1313 | 294.3 |
| C | 13 | 3 | 610869 | 1670.46 | 1342 | 1330 | 364.9 |
| C | 15 | 147 | 213619 | 581.78 | 1342 | 1330 | 364.9 |
| C | 12 | 249 | 194908 | 530.51 | 1342 | 1330 | 364.9 |
| D | 11 | 129 | 1903724 | 5170.41 | 1319 | 1260 | 368.0 |
| D | 2 | 249 | 716141 | 1942.86 | 1319 | 1260 | 368.0 |
| D | 3 | 12 | 263408 | 712.45 | 1319 | 1260 | 368.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

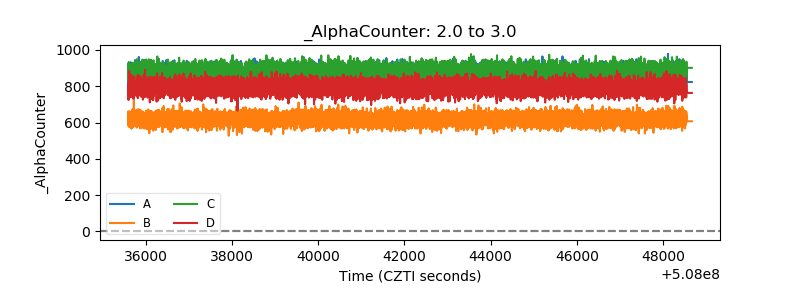

| Alpha Counter |  |

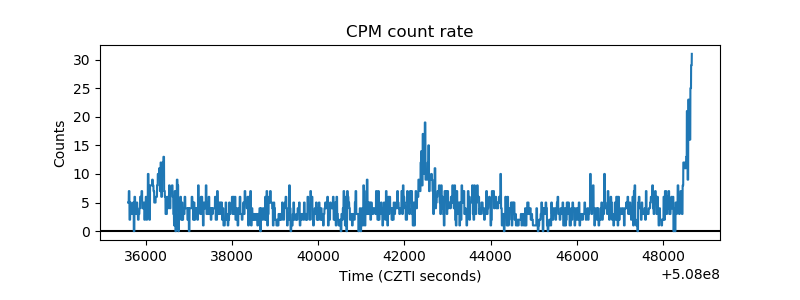

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

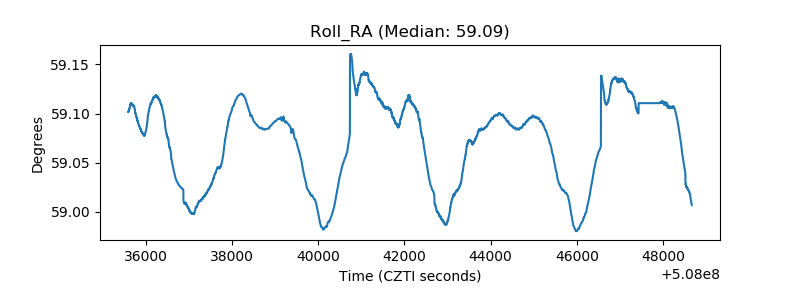

| _Roll_RA |  |
| Veto Counter |  |
