| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006548_56052cztM0_level2.fits | modeM0/AS1A14_083T03_9000006548_56052cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,215,360 | 79,499,520 |
| Size | 541.9 MB | 75.8 MB |
| Events in quadrant A | 8,456,969 | 382,113 |
| Events in quadrant B | 3,227,074 | 599,922 |
| Events in quadrant C | 3,370,887 | 539,998 |
| Events in quadrant D | 5,507,647 | 461,783 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29322 | 4 |
| B | 0 | 13886 | 1 |
| C | 0 | 14399 | 1 |
| D | 0 | 20505 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6063 | 2055 | 33.894112% |
| B | 6063 | 126 | 2.078179% |
| C | 6064 | 100 | 1.649077% |
| D | 6064 | 689 | 11.362137% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6983 | 6063 | 1936 | 1936 | 27.72% | 31.93% |  |
| B | 6983 | 6064 | 53 | 53 | 0.76% | 0.87% |  |
| C | 6983 | 6064 | 71 | 71 | 1.02% | 1.17% |  |
| D | 6984 | 6065 | 651 | 651 | 9.32% | 10.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 3491966 | 27041.78 | 516 | 503 | 129.1 |
| A | 12 | 115 | 2802912 | 21704.98 | 516 | 503 | 129.1 |
| A | 3 | 62 | 69308 | 532.9 | 516 | 503 | 129.1 |
| B | 5 | 185 | 293078 | 2174.23 | 629 | 606 | 134.5 |
| B | 0 | 213 | 117520 | 869.13 | 629 | 606 | 134.5 |
| B | 10 | 247 | 65054 | 479.1 | 629 | 606 | 134.5 |
| C | 13 | 3 | 291703 | 1716.2 | 617 | 611 | 169.6 |
| C | 9 | 38 | 271925 | 1599.6 | 617 | 611 | 169.6 |
| C | 15 | 147 | 184452 | 1083.88 | 617 | 611 | 169.6 |
| D | 6 | 42 | 1461873 | 8828.81 | 584 | 560 | 165.5 |
| D | 11 | 129 | 952455 | 5751.06 | 584 | 560 | 165.5 |
| D | 2 | 249 | 265297 | 1599.46 | 584 | 560 | 165.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

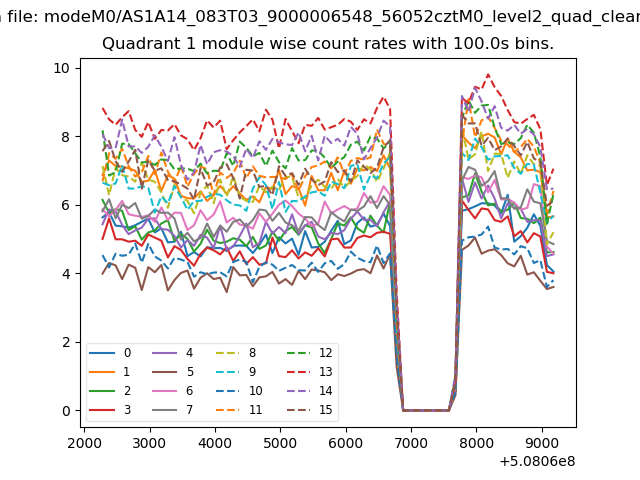

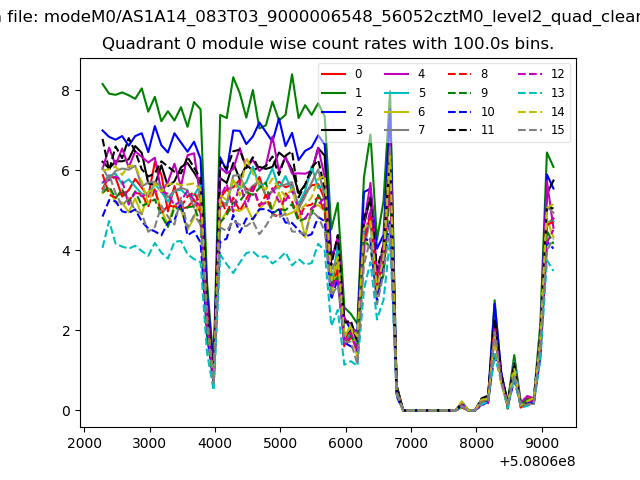

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

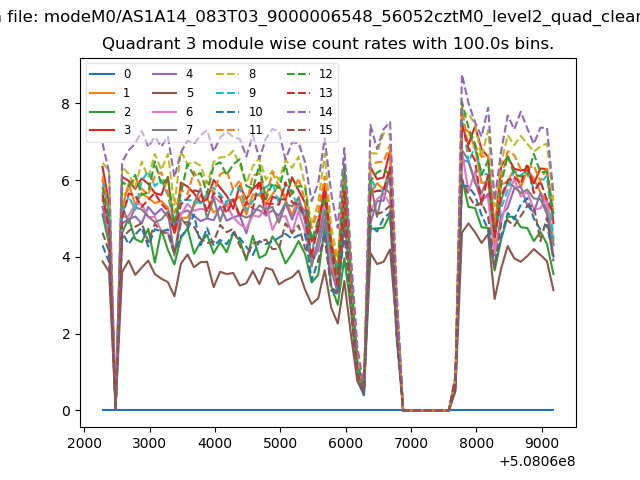

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

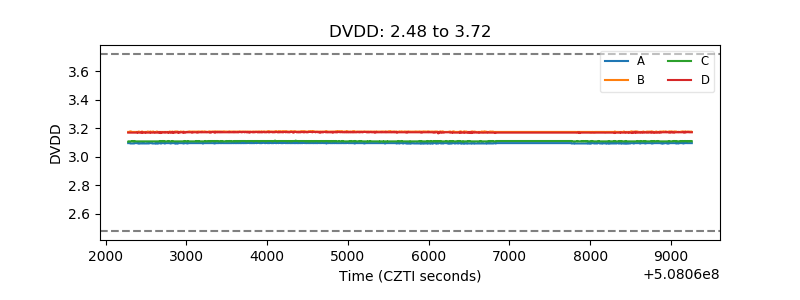

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

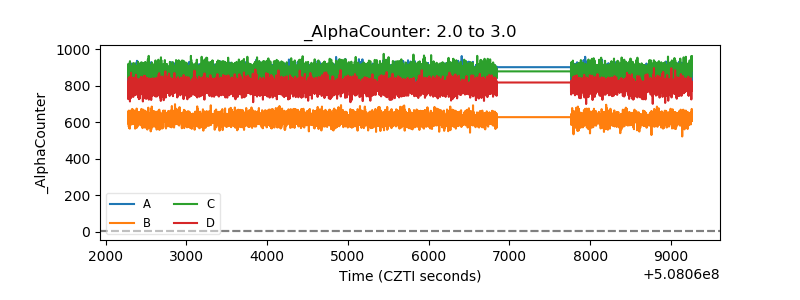

| Alpha Counter |  |

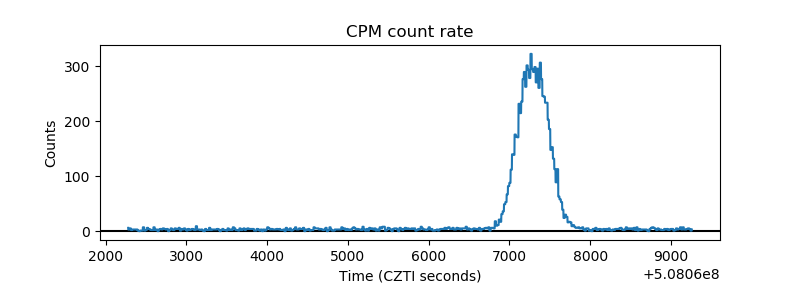

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

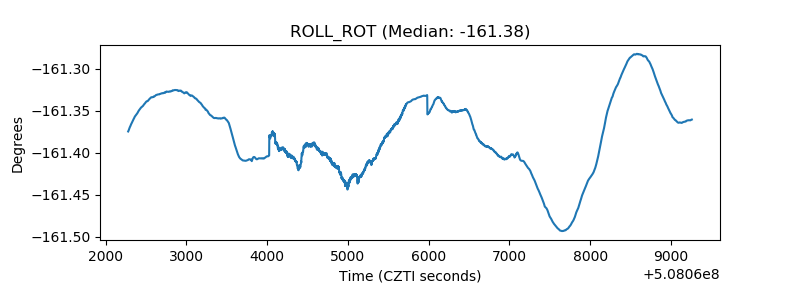

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
