| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006548_56056cztM0_level2.fits | modeM0/AS1A14_083T03_9000006548_56056cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,547,840 | 90,930,240 |
| Size | 463.1 MB | 86.7 MB |
| Events in quadrant A | 6,944,306 | 529,595 |
| Events in quadrant B | 3,401,938 | 657,200 |
| Events in quadrant C | 3,117,840 | 582,630 |
| Events in quadrant D | 4,017,612 | 542,327 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24956 | 1 |
| B | 0 | 14705 | 1 |
| C | 0 | 14044 | 1 |
| D | 0 | 16076 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6327 | 1100 | 17.385807% |
| B | 6328 | 158 | 2.496839% |
| C | 6328 | 110 | 1.738306% |
| D | 6328 | 155 | 2.449431% |

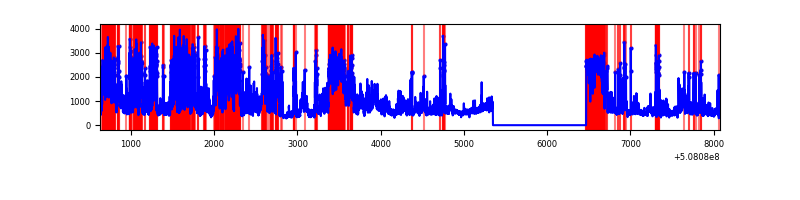

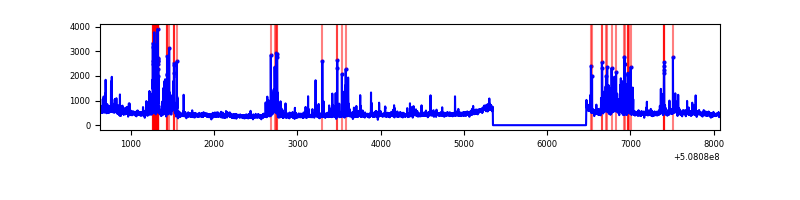

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7447 | 6327 | 978 | 978 | 13.13% | 15.46% |  |
| B | 7448 | 6328 | 61 | 61 | 0.82% | 0.96% |  |
| C | 7448 | 6329 | 60 | 60 | 0.81% | 0.95% |  |
| D | 7448 | 6328 | 114 | 114 | 1.53% | 1.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 3199326 | 20072.98 | 640 | 625 | 159.4 |
| A | 15 | 32 | 537068 | 3366.37 | 640 | 625 | 159.4 |
| A | 0 | 8 | 241808 | 1513.51 | 640 | 625 | 159.4 |
| B | 5 | 185 | 360696 | 2509.29 | 669 | 644 | 143.5 |
| B | 10 | 247 | 89063 | 616.21 | 669 | 644 | 143.5 |
| B | 15 | 32 | 68684 | 474.19 | 669 | 644 | 143.5 |
| C | 15 | 147 | 202739 | 1129.19 | 649 | 640 | 179.0 |
| C | 12 | 252 | 107475 | 596.92 | 649 | 640 | 179.0 |
| C | 13 | 3 | 96457 | 535.36 | 649 | 640 | 179.0 |
| D | 11 | 129 | 526863 | 2883.91 | 645 | 617 | 182.5 |
| D | 3 | 13 | 362195 | 1981.51 | 645 | 617 | 182.5 |
| D | 2 | 249 | 232140 | 1268.78 | 645 | 617 | 182.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

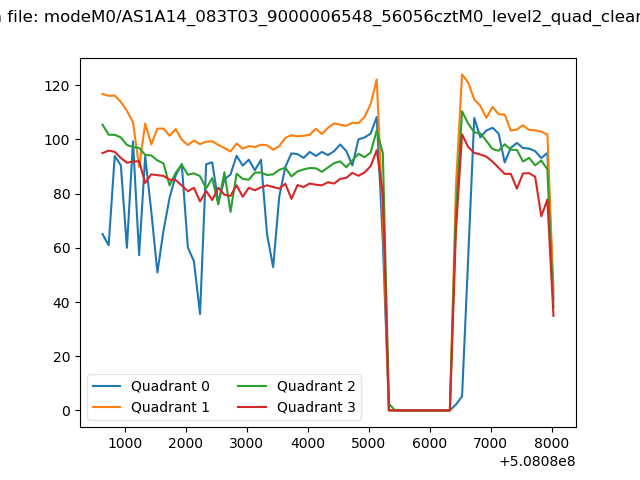

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

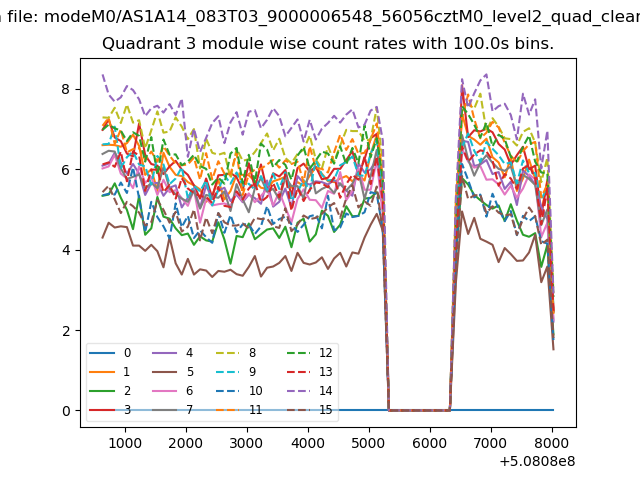

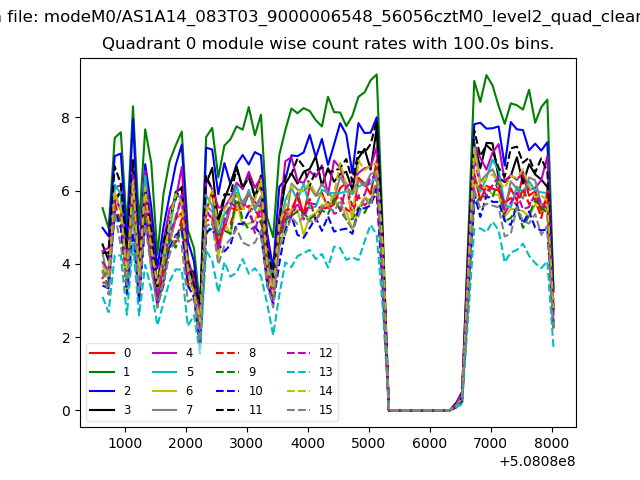

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

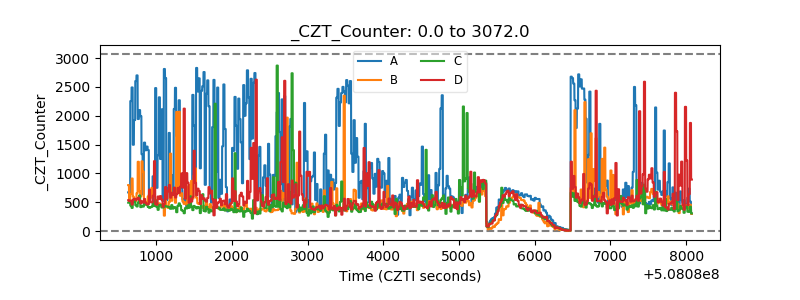

| CZT Counter |  |

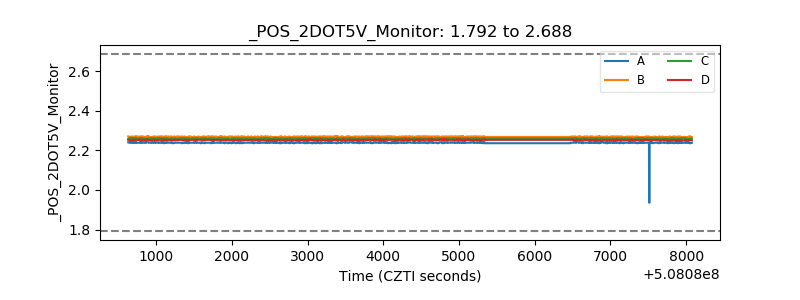

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

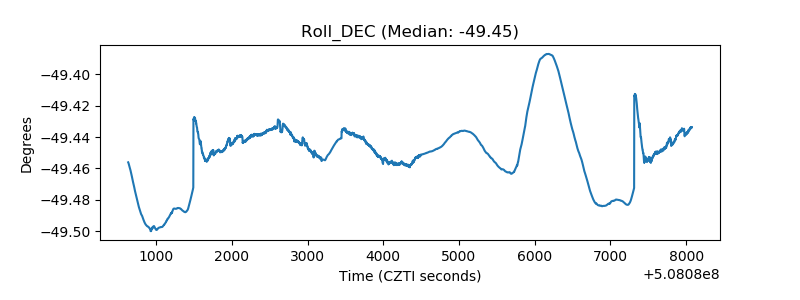

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
