| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006548_56061cztM0_level2.fits | modeM0/AS1A14_083T03_9000006548_56061cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,520,000 | 121,386,240 |
| Size | 534.6 MB | 115.8 MB |
| Events in quadrant A | 4,671,667 | 803,532 |
| Events in quadrant B | 5,183,489 | 839,220 |
| Events in quadrant C | 4,068,076 | 762,463 |
| Events in quadrant D | 6,148,110 | 665,051 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20485 | 1 |
| B | 0 | 21793 | 1 |
| C | 0 | 19057 | 1 |
| D | 0 | 24871 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8721 | 82 | 0.940259% |
| B | 8721 | 399 | 4.575163% |
| C | 8721 | 74 | 0.848527% |
| D | 8721 | 582 | 6.673547% |

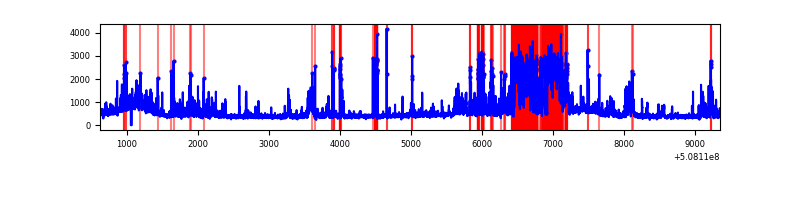

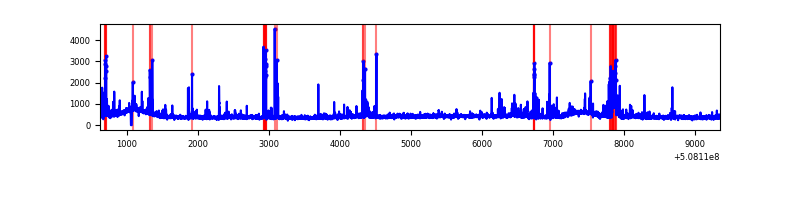

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8736 | 8722 | 41 | 41 | 0.47% | 0.47% |  |
| B | 8736 | 8722 | 272 | 272 | 3.11% | 3.12% |  |
| C | 8736 | 8722 | 52 | 52 | 0.60% | 0.60% |  |
| D | 8736 | 8722 | 543 | 543 | 6.22% | 6.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 688100 | 2983.6 | 923 | 899 | 230.3 |
| A | 15 | 32 | 143042 | 617.14 | 923 | 899 | 230.3 |
| A | 7 | 14 | 85408 | 366.91 | 923 | 899 | 230.3 |
| B | 5 | 185 | 450765 | 2350.67 | 903 | 870 | 191.4 |
| B | 2 | 249 | 376000 | 1960.03 | 903 | 870 | 191.4 |
| B | 10 | 247 | 206333 | 1073.53 | 903 | 870 | 191.4 |
| C | 15 | 230 | 133563 | 539.89 | 897 | 887 | 245.7 |
| C | 6 | 223 | 114084 | 460.62 | 897 | 887 | 245.7 |
| C | 13 | 3 | 93405 | 376.48 | 897 | 887 | 245.7 |
| D | 10 | 102 | 914052 | 3732.31 | 871 | 832 | 244.7 |
| D | 11 | 129 | 504254 | 2057.47 | 871 | 832 | 244.7 |
| D | 6 | 42 | 497866 | 2031.37 | 871 | 832 | 244.7 |

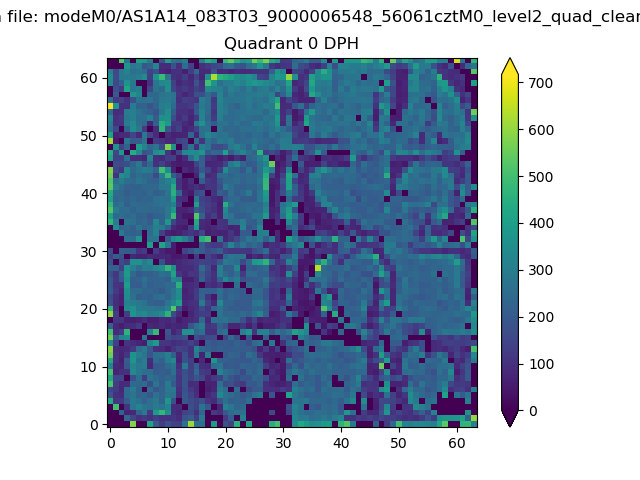

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

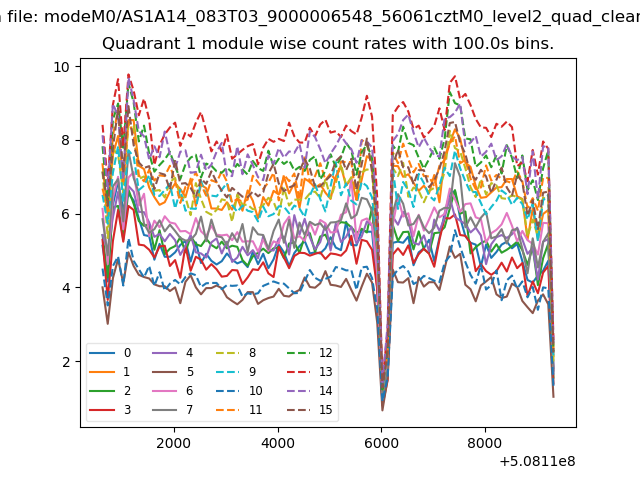

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

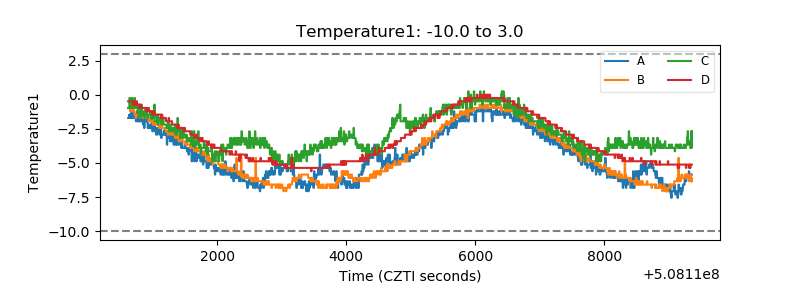

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

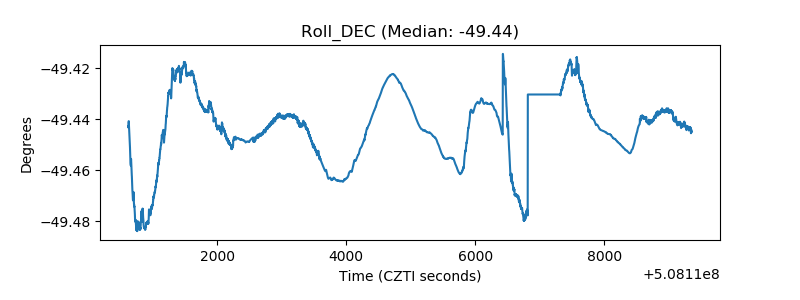

| _Roll_DEC |  |
| _Roll_RA |  |

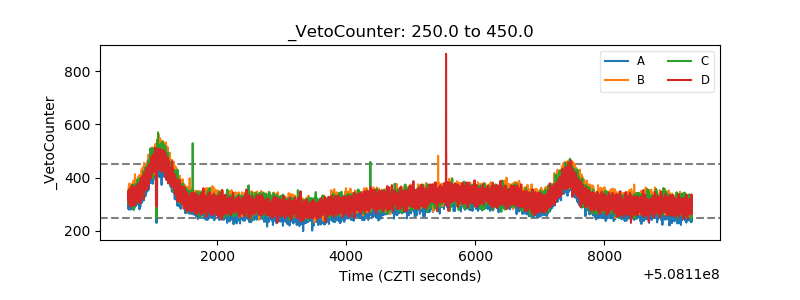

| Veto Counter |  |
