| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006548_56087cztM0_level2.fits | modeM0/AS1A14_083T03_9000006548_56087cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,856,960 | 75,977,280 |
| Size | 586.4 MB | 72.5 MB |
| Events in quadrant A | 6,926,357 | 459,620 |
| Events in quadrant B | 2,764,440 | 600,301 |
| Events in quadrant C | 3,911,150 | 508,462 |
| Events in quadrant D | 8,700,237 | 319,697 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24664 | 1 |
| B | 0 | 12667 | 1 |
| C | 0 | 15916 | 1 |
| D | 0 | 29941 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5897 | 1211 | 20.535866% |
| B | 5897 | 101 | 1.712735% |
| C | 5897 | 341 | 5.782601% |
| D | 5897 | 2370 | 40.189927% |

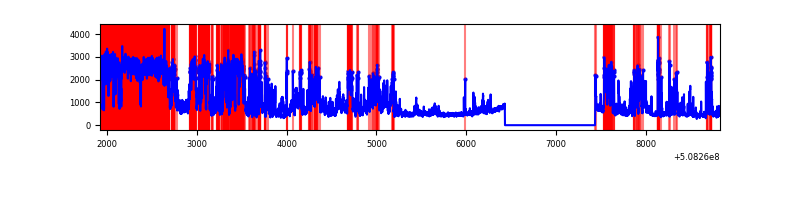

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6902 | 5898 | 1272 | 1272 | 18.43% | 21.57% |  |
| B | 6902 | 5898 | 17 | 17 | 0.25% | 0.29% |  |
| C | 6902 | 5898 | 295 | 295 | 4.27% | 5.00% |  |
| D | 6902 | 5898 | 1973 | 1973 | 28.59% | 33.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 3573400 | 24889.55 | 570 | 554 | 143.5 |
| A | 15 | 32 | 573099 | 3988.53 | 570 | 554 | 143.5 |
| A | 7 | 64 | 257155 | 1787.56 | 570 | 554 | 143.5 |
| B | 5 | 185 | 70921 | 535.92 | 615 | 594 | 131.2 |
| B | 10 | 247 | 39306 | 295.0 | 615 | 594 | 131.2 |
| B | 9 | 254 | 39103 | 293.45 | 615 | 594 | 131.2 |
| C | 12 | 254 | 1130284 | 7119.57 | 576 | 570 | 158.7 |
| C | 12 | 252 | 226860 | 1426.1 | 576 | 570 | 158.7 |
| C | 6 | 223 | 92265 | 577.87 | 576 | 570 | 158.7 |
| D | 2 | 62 | 5455603 | 40451.34 | 476 | 454 | 134.9 |
| D | 11 | 129 | 842419 | 6243.39 | 476 | 454 | 134.9 |
| D | 8 | 129 | 116998 | 864.2 | 476 | 454 | 134.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

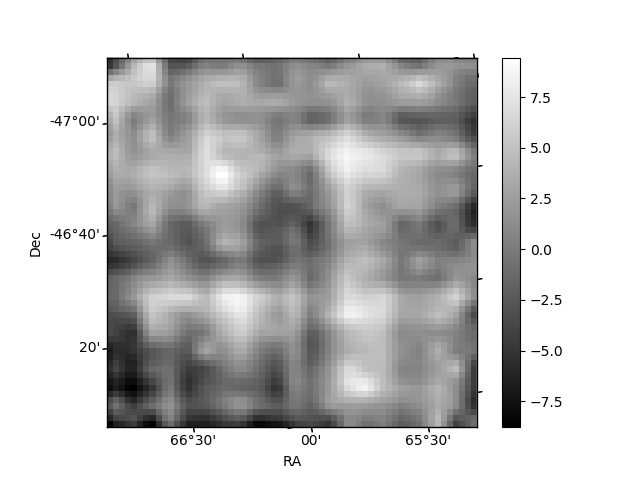

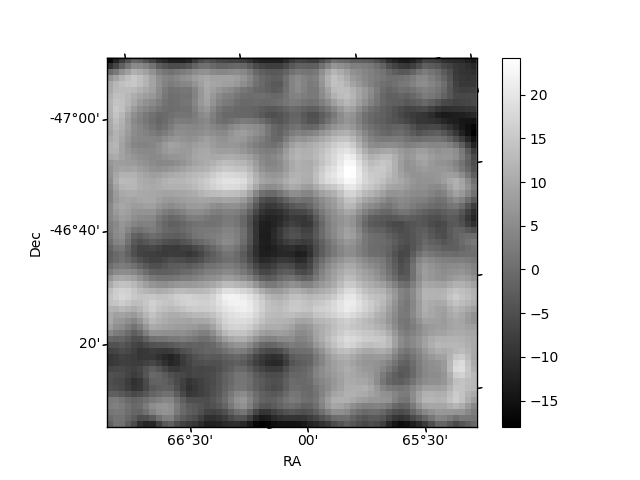

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

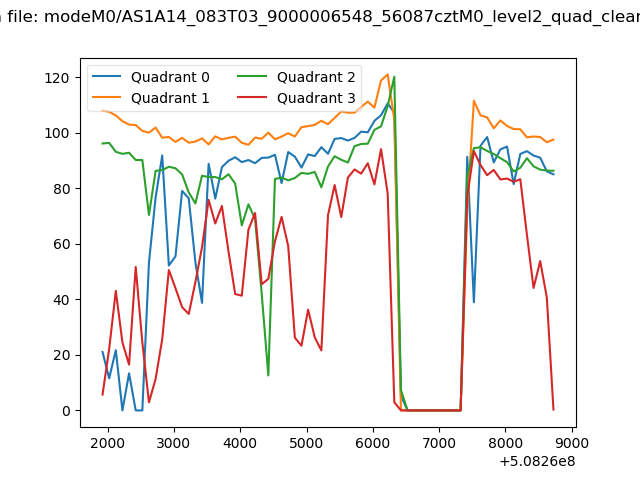

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

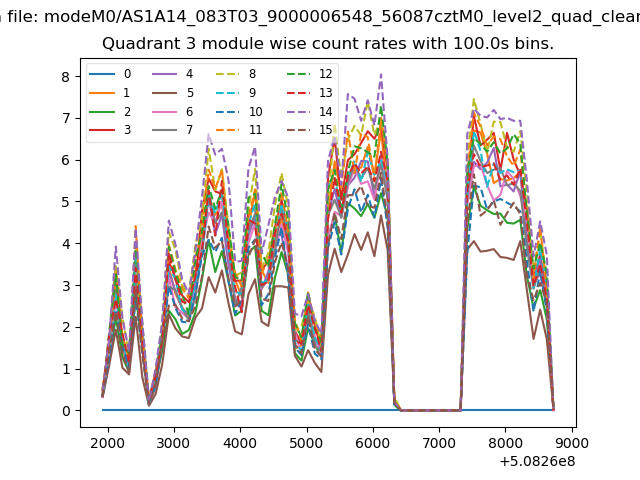

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

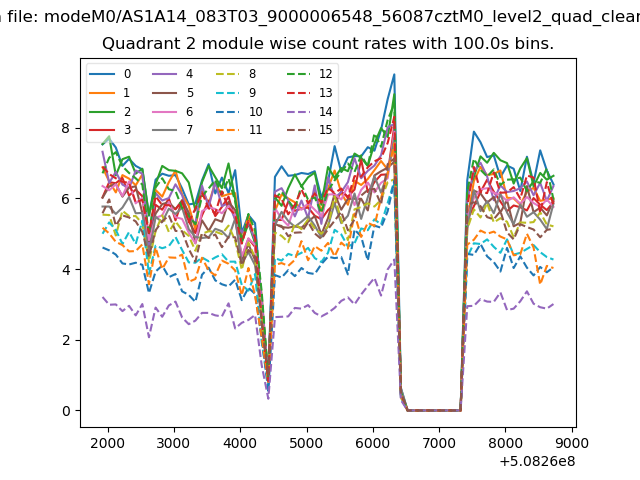

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

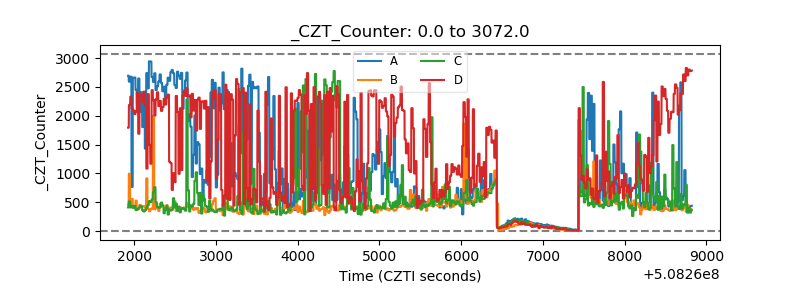

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

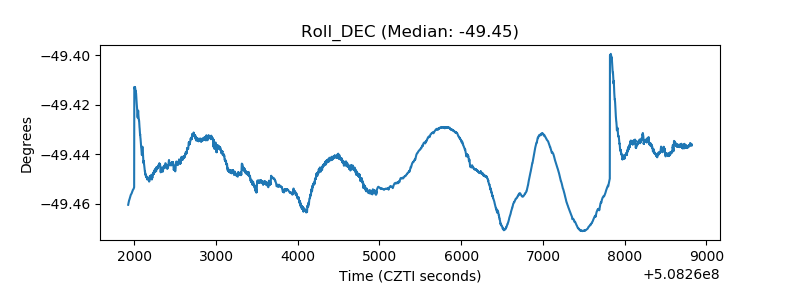

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
