| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006548_56088cztM0_level2.fits | modeM0/AS1A14_083T03_9000006548_56088cztM0_level2_quad_clean.evt |
| Size (bytes) | 591,324,480 | 95,604,480 |
| Size | 563.9 MB | 91.2 MB |
| Events in quadrant A | 4,982,767 | 615,249 |
| Events in quadrant B | 3,320,813 | 697,765 |
| Events in quadrant C | 4,257,101 | 603,367 |
| Events in quadrant D | 8,788,412 | 493,322 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19860 | 3 |
| B | 0 | 15036 | 3 |
| C | 0 | 17783 | 4 |
| D | 0 | 31042 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6959 | 552 | 7.932174% |
| B | 6959 | 112 | 1.609427% |
| C | 6958 | 310 | 4.455303% |
| D | 6958 | 1240 | 17.821213% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

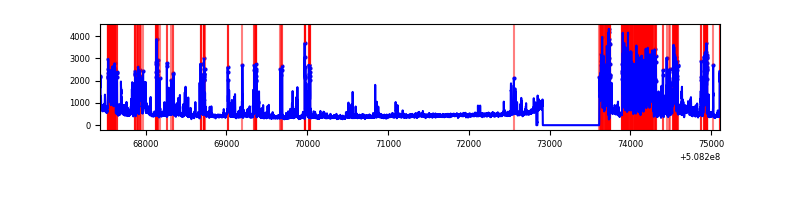

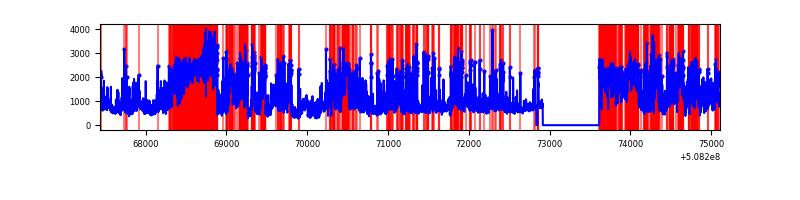

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7674 | 6961 | 414 | 414 | 5.39% | 5.95% |  |
| B | 7674 | 6961 | 18 | 18 | 0.23% | 0.26% |  |
| C | 7673 | 6960 | 250 | 250 | 3.26% | 3.59% |  |
| D | 7673 | 6960 | 1288 | 1288 | 16.79% | 18.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 1166536 | 6539.96 | 710 | 688 | 178.3 |
| A | 0 | 8 | 487231 | 2729.32 | 710 | 688 | 178.3 |
| A | 12 | 115 | 228949 | 1280.46 | 710 | 688 | 178.3 |
| B | 5 | 185 | 71059 | 454.23 | 729 | 705 | 154.9 |
| B | 10 | 247 | 63900 | 408.01 | 729 | 705 | 154.9 |
| B | 0 | 231 | 57163 | 364.51 | 729 | 705 | 154.9 |
| C | 12 | 254 | 1012856 | 5312.05 | 691 | 683 | 190.5 |
| C | 12 | 252 | 149181 | 779.34 | 691 | 683 | 190.5 |
| C | 12 | 249 | 112499 | 586.83 | 691 | 683 | 190.5 |
| D | 2 | 62 | 3873123 | 20813.87 | 654 | 624 | 186.1 |
| D | 11 | 129 | 1236010 | 6639.94 | 654 | 624 | 186.1 |
| D | 2 | 31 | 210403 | 1127.52 | 654 | 624 | 186.1 |

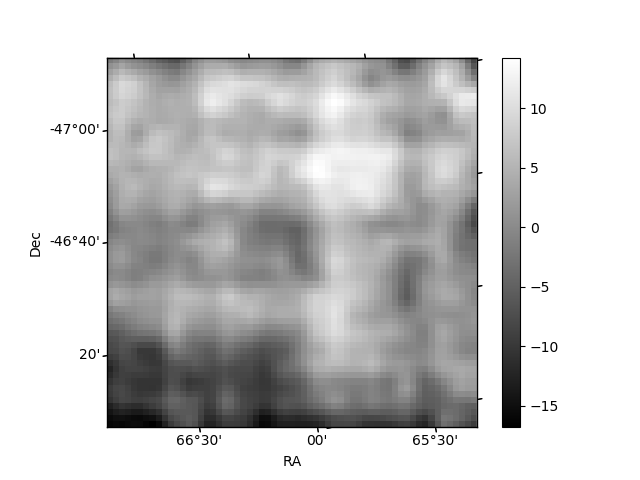

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

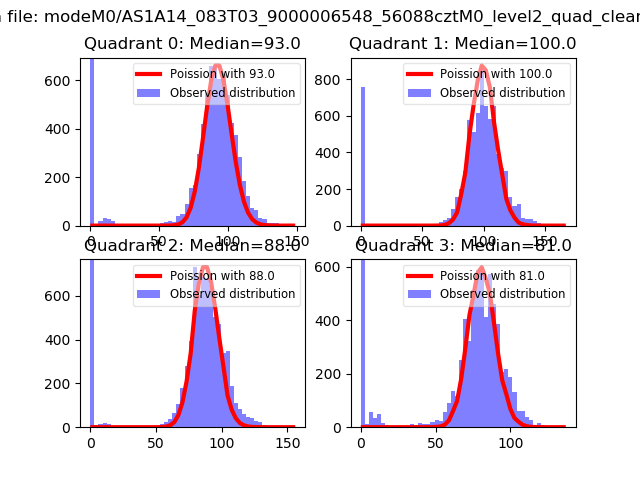

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

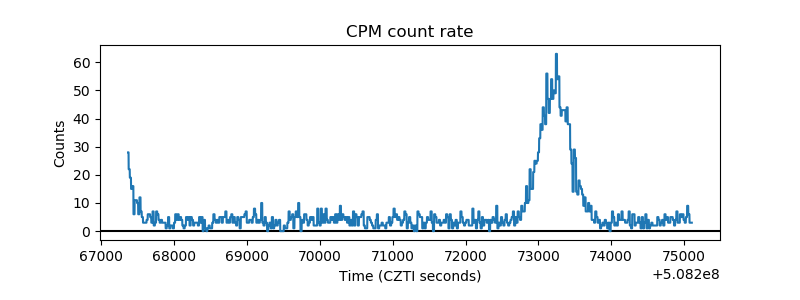

| _CPM_Rate |  |

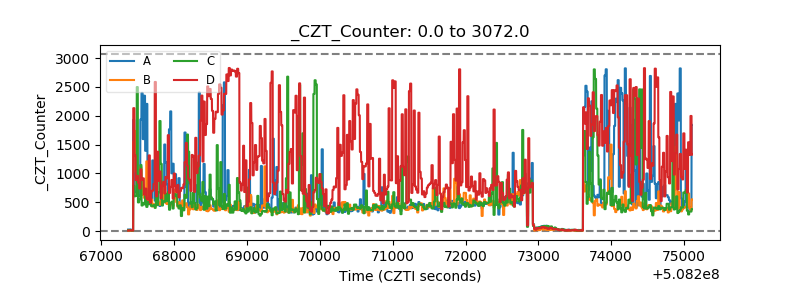

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

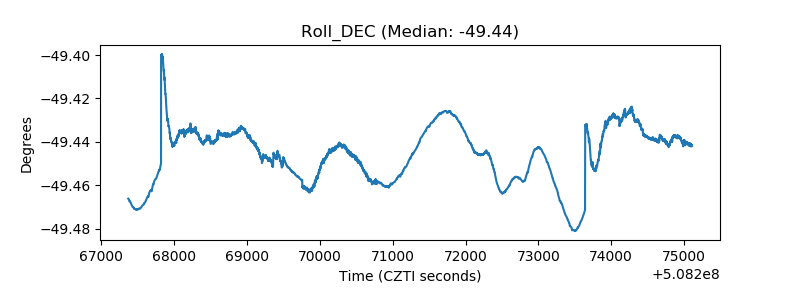

| _Roll_DEC |  |
| _Roll_RA |  |

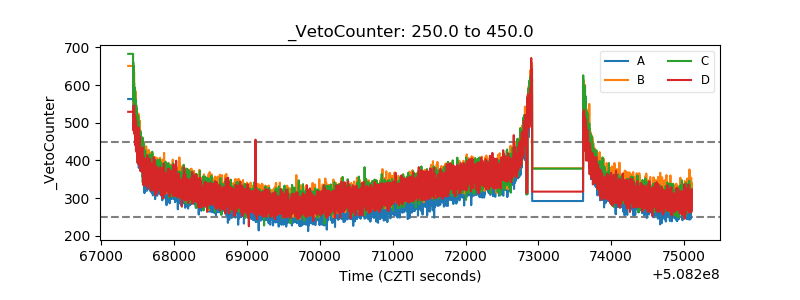

| Veto Counter |  |
