| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006548_56090cztM0_level2.fits | modeM0/AS1A14_083T03_9000006548_56090cztM0_level2_quad_clean.evt |
| Size (bytes) | 638,392,320 | 112,518,720 |
| Size | 608.8 MB | 107.3 MB |
| Events in quadrant A | 6,301,626 | 707,373 |
| Events in quadrant B | 4,425,474 | 813,575 |
| Events in quadrant C | 6,592,421 | 661,983 |
| Events in quadrant D | 5,671,249 | 649,588 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24691 | 1 |
| B | 0 | 18752 | 1 |
| C | 0 | 25280 | 1 |
| D | 0 | 22936 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8257 | 742 | 8.986315% |
| B | 8258 | 149 | 1.804311% |
| C | 8258 | 866 | 10.486801% |
| D | 8258 | 483 | 5.848874% |

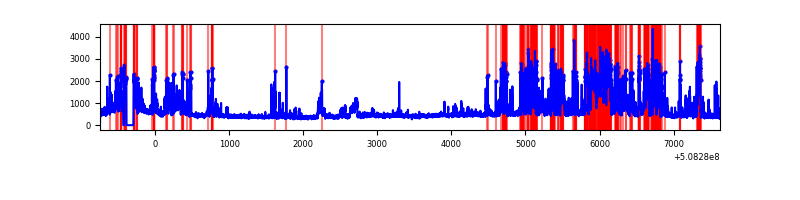

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8367 | 8259 | 547 | 547 | 6.54% | 6.62% |  |
| B | 8368 | 8260 | 19 | 19 | 0.23% | 0.23% |  |
| C | 8368 | 8260 | 611 | 611 | 7.30% | 7.40% |  |
| D | 8368 | 8260 | 409 | 409 | 4.89% | 4.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 984786 | 4673.25 | 844 | 823 | 210.6 |
| A | 8 | 9 | 842662 | 3998.25 | 844 | 823 | 210.6 |
| A | 0 | 8 | 461954 | 2190.1 | 844 | 823 | 210.6 |
| B | 9 | 254 | 350332 | 1923.93 | 866 | 839 | 181.7 |
| B | 0 | 171 | 163733 | 896.72 | 866 | 839 | 181.7 |
| B | 7 | 252 | 75486 | 410.93 | 866 | 839 | 181.7 |
| C | 12 | 254 | 1052813 | 4801.71 | 801 | 796 | 219.1 |
| C | 15 | 147 | 873953 | 3985.34 | 801 | 796 | 219.1 |
| C | 9 | 38 | 361819 | 1647.81 | 801 | 796 | 219.1 |
| D | 2 | 120 | 1018949 | 4432.58 | 815 | 779 | 229.7 |
| D | 2 | 62 | 653123 | 2839.96 | 815 | 779 | 229.7 |
| D | 2 | 249 | 270499 | 1174.22 | 815 | 779 | 229.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

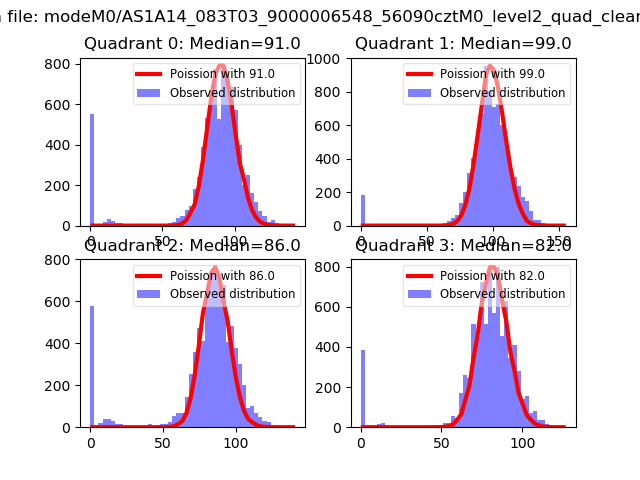

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

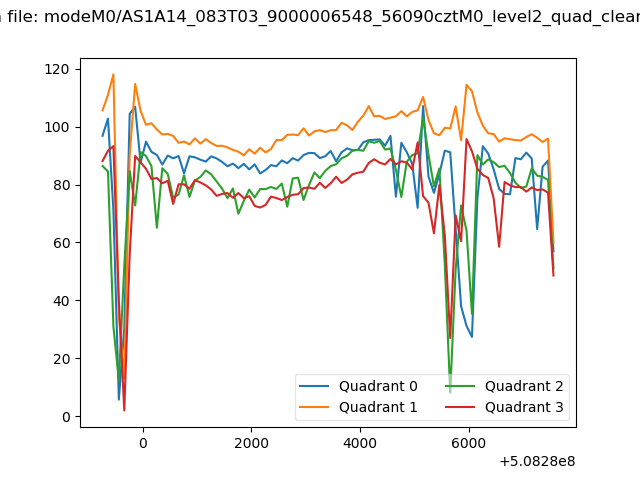

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

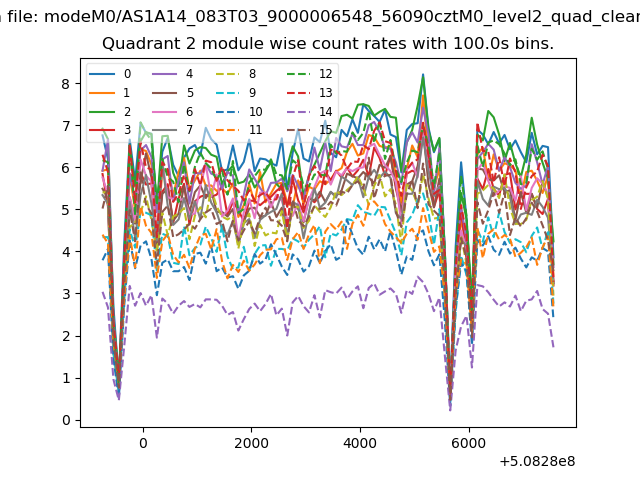

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

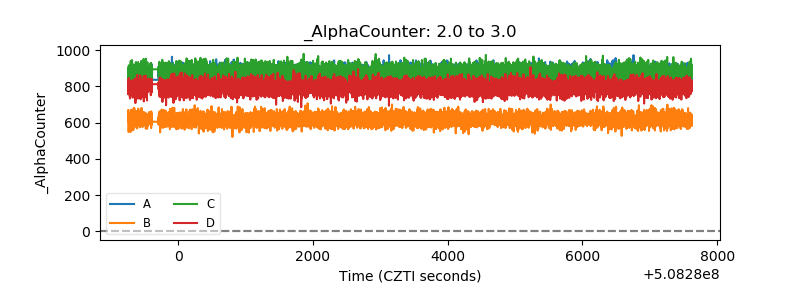

| Alpha Counter |  |

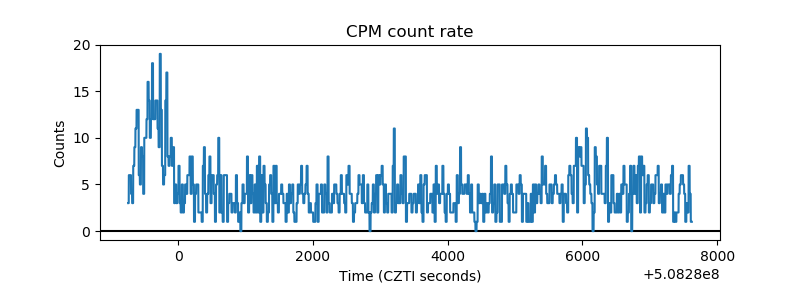

| _CPM_Rate |  |

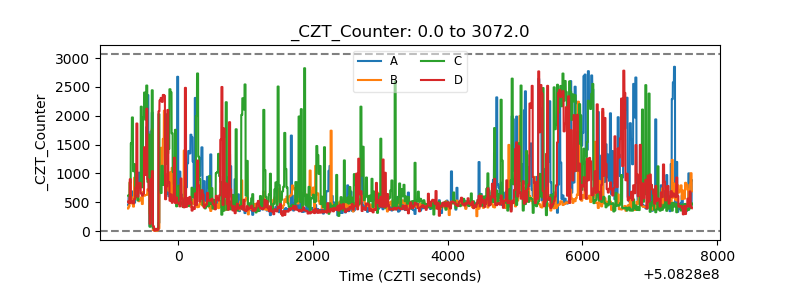

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

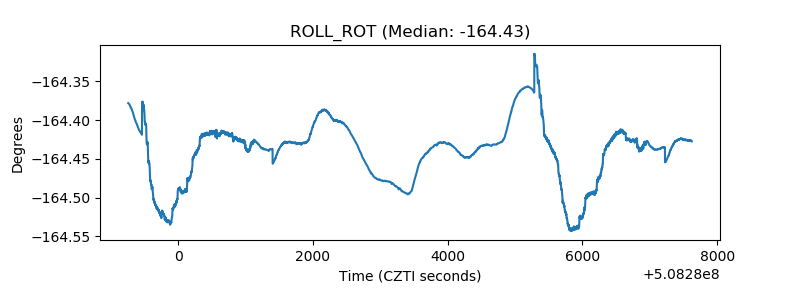

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
