| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006548_56102cztM0_level2.fits | modeM0/AS1A14_083T03_9000006548_56102cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,054,400 | 89,832,960 |
| Size | 434.0 MB | 85.7 MB |
| Events in quadrant A | 4,368,368 | 563,205 |
| Events in quadrant B | 3,108,316 | 643,127 |
| Events in quadrant C | 5,639,428 | 529,589 |
| Events in quadrant D | 3,230,395 | 537,184 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17732 | 1 |
| B | 0 | 14046 | 1 |
| C | 0 | 21229 | 1 |
| D | 0 | 14466 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6403 | 511 | 7.980634% |
| B | 6404 | 133 | 2.076827% |
| C | 6404 | 703 | 10.977514% |
| D | 6403 | 42 | 0.655943% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7273 | 6404 | 391 | 391 | 5.38% | 6.11% |  |
| B | 7274 | 6405 | 34 | 34 | 0.47% | 0.53% |  |
| C | 7274 | 6405 | 602 | 602 | 8.28% | 9.40% |  |
| D | 7273 | 6404 | 25 | 25 | 0.34% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 831624 | 5171.49 | 648 | 632 | 160.7 |
| A | 7 | 64 | 496285 | 3084.59 | 648 | 632 | 160.7 |
| A | 3 | 14 | 302326 | 1877.53 | 648 | 632 | 160.7 |
| B | 10 | 247 | 215429 | 1508.06 | 665 | 643 | 142.4 |
| B | 5 | 185 | 92953 | 648.13 | 665 | 643 | 142.4 |
| B | 0 | 231 | 34752 | 239.49 | 665 | 643 | 142.4 |
| C | 12 | 254 | 2604294 | 15245.07 | 623 | 616 | 170.8 |
| C | 12 | 252 | 313428 | 1831.58 | 623 | 616 | 170.8 |
| C | 9 | 38 | 136112 | 793.36 | 623 | 616 | 170.8 |
| D | 14 | 52 | 249898 | 1370.06 | 642 | 611 | 182.0 |
| D | 11 | 129 | 157485 | 862.16 | 642 | 611 | 182.0 |
| D | 2 | 249 | 86755 | 473.44 | 642 | 611 | 182.0 |

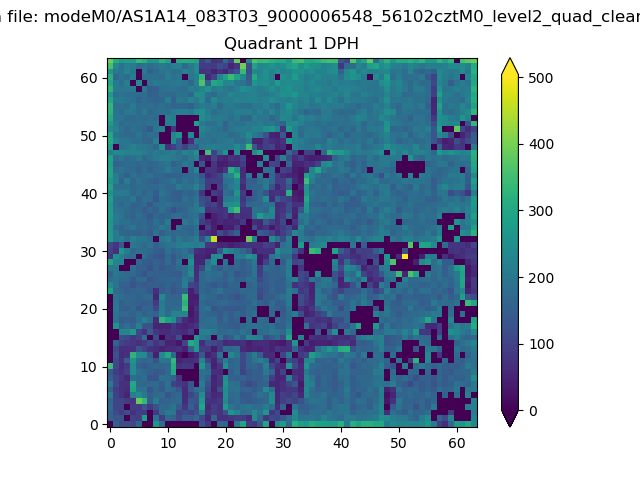

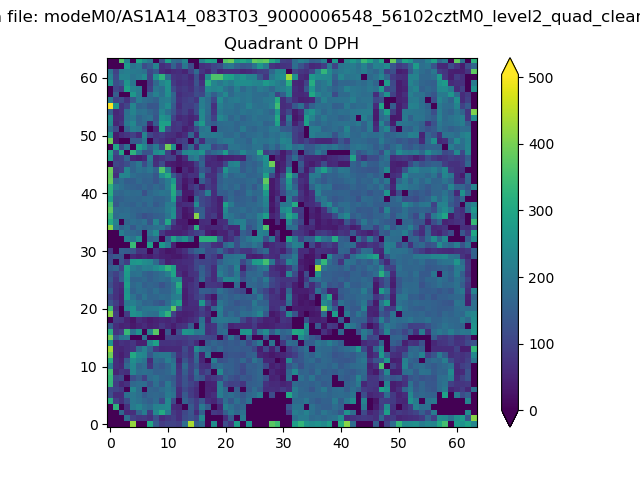

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

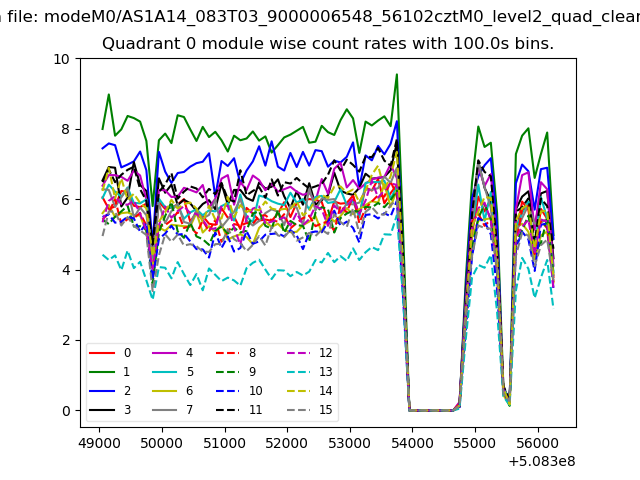

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

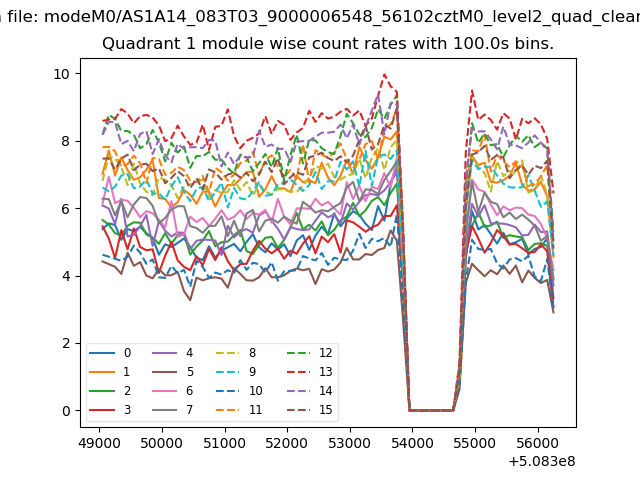

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

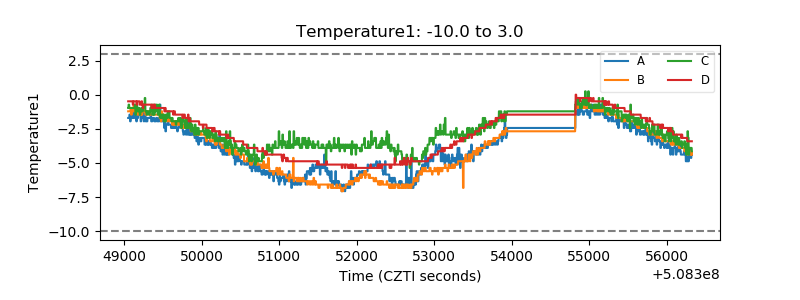

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

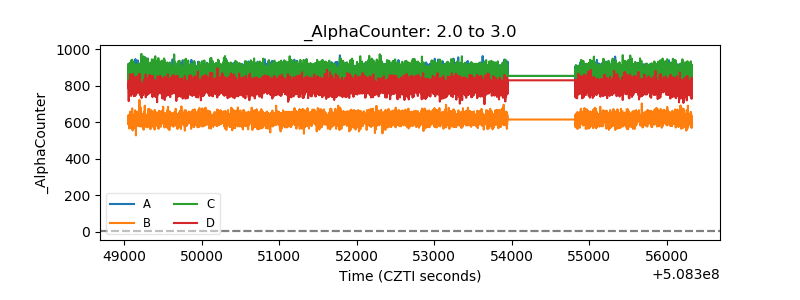

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
