| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006548_56116cztM0_level2.fits | modeM0/AS1A14_083T03_9000006548_56116cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,318,400 | 86,742,720 |
| Size | 525.8 MB | 82.7 MB |
| Events in quadrant A | 8,744,449 | 466,656 |
| Events in quadrant B | 3,047,962 | 647,168 |
| Events in quadrant C | 4,659,560 | 541,554 |
| Events in quadrant D | 3,466,422 | 530,817 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30383 | 3 |
| B | 0 | 13571 | 1 |
| C | 0 | 18533 | 1 |
| D | 0 | 15092 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6305 | 1753 | 27.803331% |
| B | 6306 | 83 | 1.316207% |
| C | 6306 | 469 | 7.437361% |
| D | 6306 | 174 | 2.759277% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7285 | 6306 | 1475 | 1475 | 20.25% | 23.39% |  |
| B | 7286 | 6307 | 10 | 10 | 0.14% | 0.16% |  |
| C | 7286 | 6307 | 347 | 347 | 4.76% | 5.50% |  |
| D | 7286 | 6307 | 130 | 130 | 1.78% | 2.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 2123093 | 13971.43 | 608 | 592 | 151.9 |
| A | 15 | 32 | 2103845 | 13844.73 | 608 | 592 | 151.9 |
| A | 12 | 115 | 1644984 | 10824.27 | 608 | 592 | 151.9 |
| B | 4 | 171 | 112653 | 791.26 | 666 | 642 | 141.6 |
| B | 9 | 254 | 92492 | 648.84 | 666 | 642 | 141.6 |
| B | 10 | 247 | 53067 | 370.34 | 666 | 642 | 141.6 |
| C | 9 | 38 | 947130 | 5514.42 | 622 | 615 | 171.6 |
| C | 12 | 254 | 664731 | 3869.16 | 622 | 615 | 171.6 |
| C | 13 | 3 | 321306 | 1868.35 | 622 | 615 | 171.6 |
| D | 8 | 240 | 418371 | 2305.96 | 636 | 608 | 181.2 |
| D | 6 | 239 | 260412 | 1434.06 | 636 | 608 | 181.2 |
| D | 2 | 249 | 73696 | 403.43 | 636 | 608 | 181.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

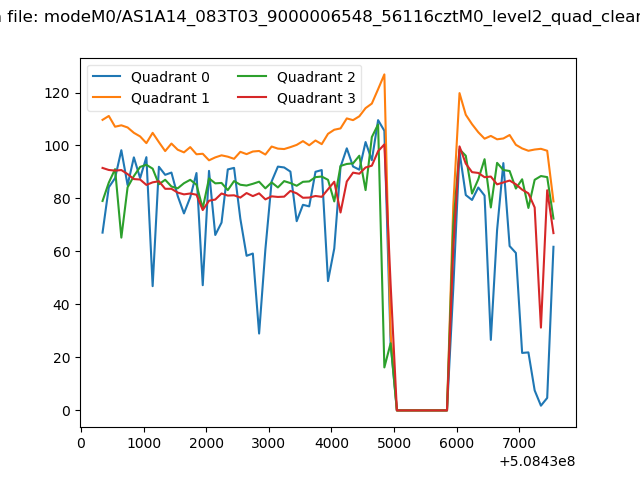

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

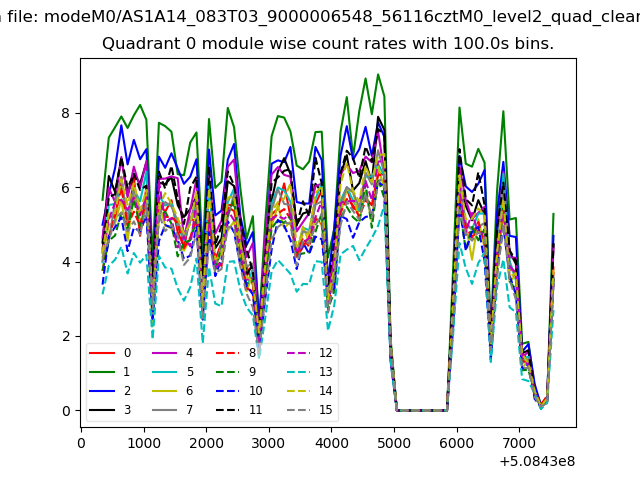

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

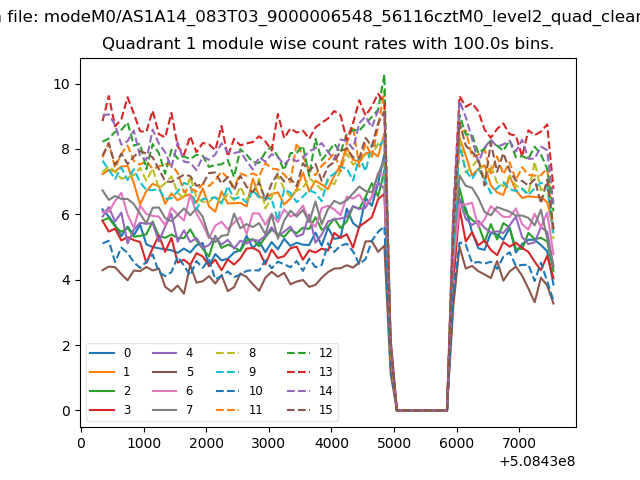

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

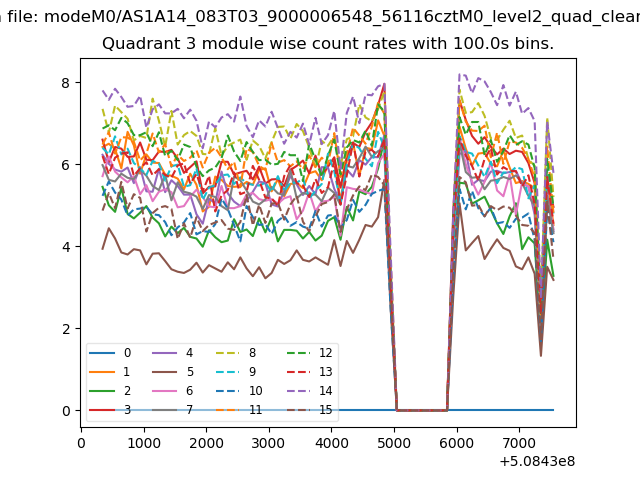

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

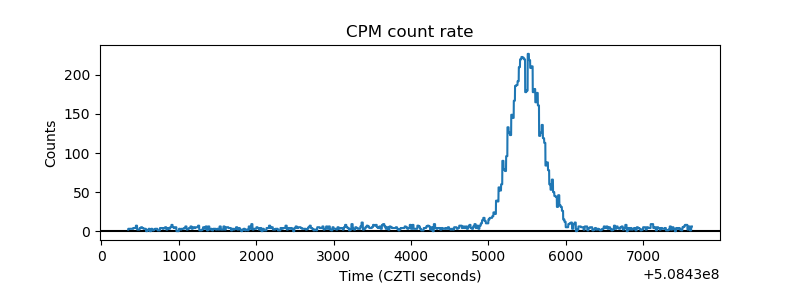

| _CPM_Rate |  |

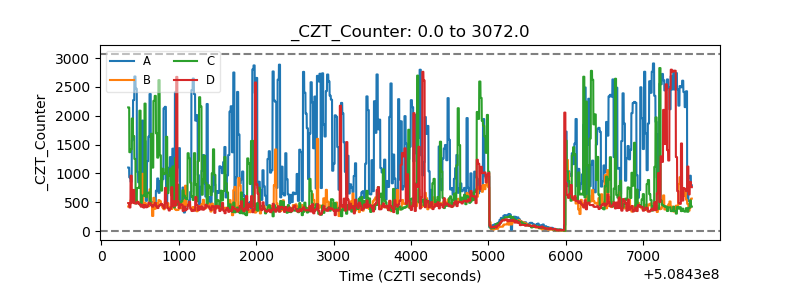

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

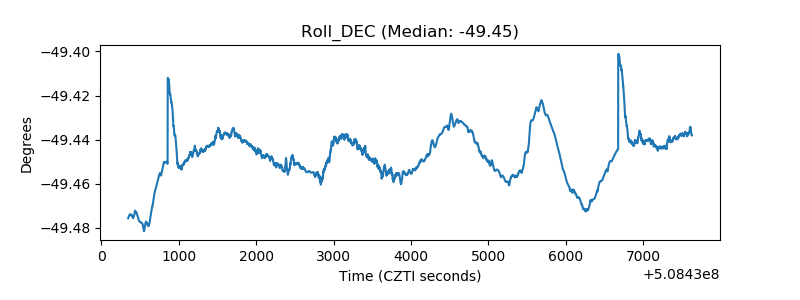

| _Roll_DEC |  |

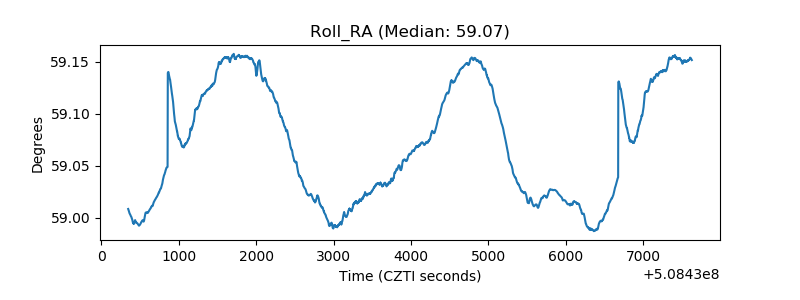

| _Roll_RA |  |
| Veto Counter |  |
