| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006548_56126cztM0_level2.fits | modeM0/AS1A14_083T03_9000006548_56126cztM0_level2_quad_clean.evt |
| Size (bytes) | 615,957,120 | 87,143,040 |
| Size | 587.4 MB | 83.1 MB |
| Events in quadrant A | 7,827,053 | 466,761 |
| Events in quadrant B | 3,206,136 | 649,305 |
| Events in quadrant C | 7,549,252 | 536,954 |
| Events in quadrant D | 3,724,695 | 541,272 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27805 | 1 |
| B | 0 | 14087 | 1 |
| C | 0 | 26941 | 1 |
| D | 0 | 15717 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6368 | 1791 | 28.125000% |
| B | 6368 | 139 | 2.182789% |
| C | 6368 | 676 | 10.615578% |
| D | 6368 | 175 | 2.748116% |

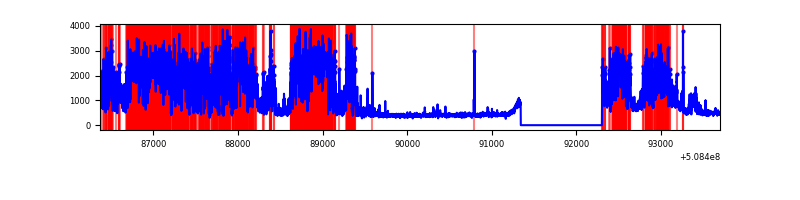

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7328 | 6368 | 1532 | 1532 | 20.91% | 24.06% |  |
| B | 7328 | 6369 | 37 | 37 | 0.50% | 0.58% |  |
| C | 7328 | 6368 | 383 | 383 | 5.23% | 6.01% |  |
| D | 7328 | 6368 | 87 | 87 | 1.19% | 1.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 4375659 | 27810.69 | 628 | 612 | 157.3 |
| A | 8 | 253 | 504438 | 3202.65 | 628 | 612 | 157.3 |
| A | 8 | 237 | 235519 | 1493.22 | 628 | 612 | 157.3 |
| B | 4 | 156 | 217743 | 1515.81 | 677 | 653 | 143.2 |
| B | 9 | 254 | 77448 | 536.21 | 677 | 653 | 143.2 |
| B | 10 | 247 | 66247 | 458.0 | 677 | 653 | 143.2 |
| C | 9 | 38 | 4737415 | 26850.02 | 648 | 644 | 176.4 |
| C | 12 | 252 | 101275 | 570.42 | 648 | 644 | 176.4 |
| C | 12 | 254 | 65624 | 368.33 | 648 | 644 | 176.4 |
| D | 2 | 31 | 356342 | 1891.88 | 664 | 634 | 188.0 |
| D | 2 | 120 | 206008 | 1092.31 | 664 | 634 | 188.0 |
| D | 2 | 249 | 114571 | 605.99 | 664 | 634 | 188.0 |

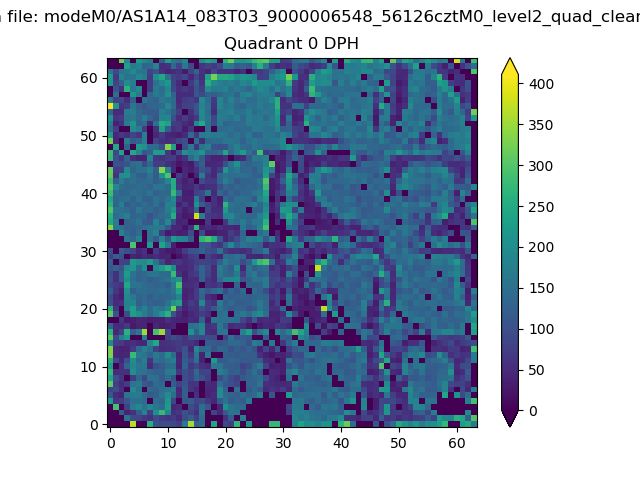

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

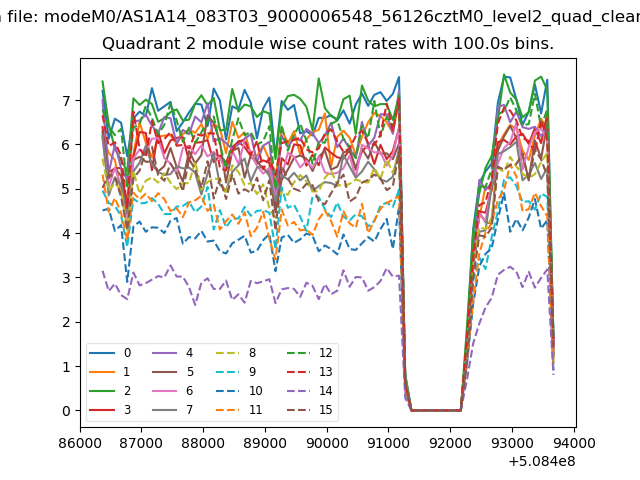

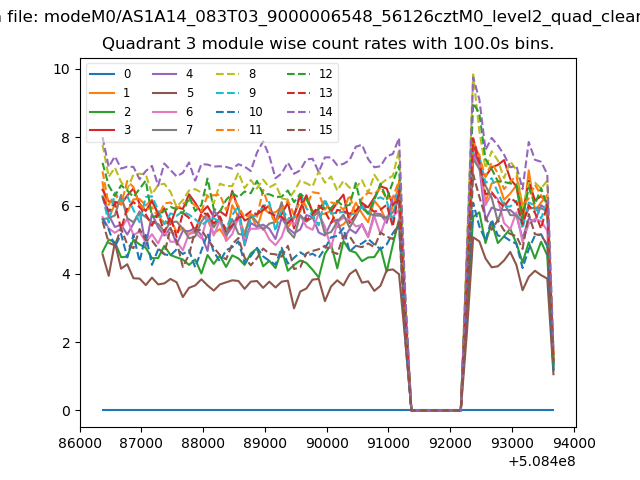

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

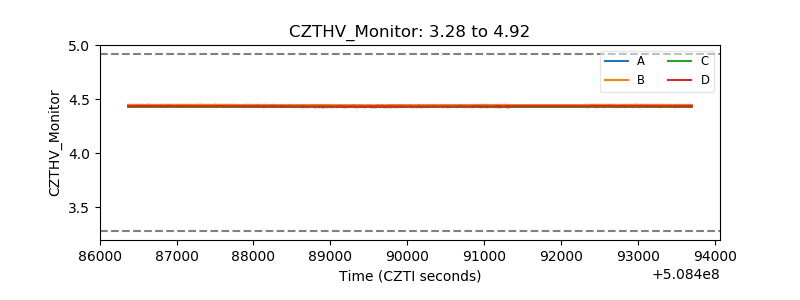

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

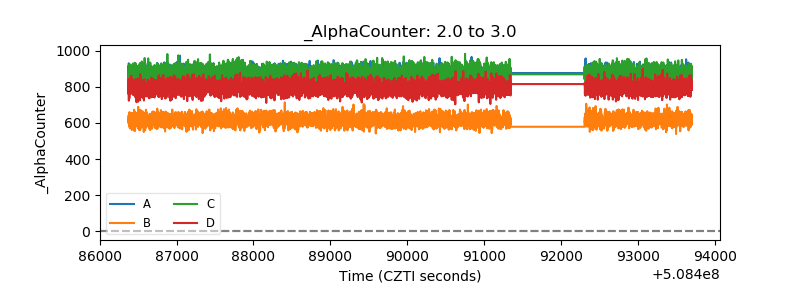

| Alpha Counter |  |

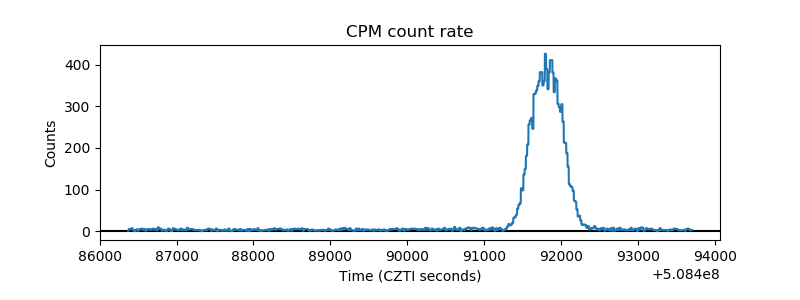

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

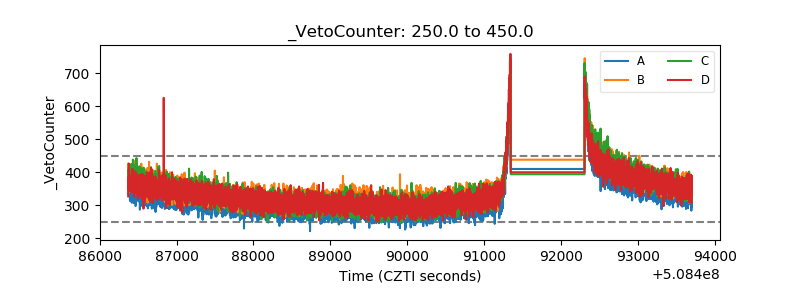

| Veto Counter |  |
