| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006548_56139cztM0_level2.fits | modeM0/AS1A14_083T03_9000006548_56139cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,784,320 | 92,531,520 |
| Size | 535.8 MB | 88.2 MB |
| Events in quadrant A | 8,194,290 | 494,518 |
| Events in quadrant B | 3,695,789 | 675,932 |
| Events in quadrant C | 3,621,860 | 607,570 |
| Events in quadrant D | 4,758,259 | 552,050 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28920 | 1 |
| B | 0 | 15852 | 1 |
| C | 0 | 15689 | 1 |
| D | 0 | 18796 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6763 | 1726 | 25.521218% |
| B | 6763 | 189 | 2.794618% |
| C | 6764 | 142 | 2.099349% |
| D | 6764 | 328 | 4.849202% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7668 | 6763 | 1655 | 1655 | 21.58% | 24.47% |  |
| B | 7668 | 6763 | 87 | 87 | 1.13% | 1.29% |  |
| C | 7669 | 6764 | 85 | 85 | 1.11% | 1.26% |  |
| D | 7669 | 6764 | 282 | 282 | 3.68% | 4.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 5058087 | 30641.05 | 664 | 647 | 165.1 |
| A | 3 | 14 | 104015 | 626.27 | 664 | 647 | 165.1 |
| A | 15 | 32 | 92585 | 557.02 | 664 | 647 | 165.1 |
| B | 5 | 185 | 309394 | 2016.31 | 713 | 687 | 153.1 |
| B | 5 | 172 | 170090 | 1106.45 | 713 | 687 | 153.1 |
| B | 10 | 247 | 129724 | 842.8 | 713 | 687 | 153.1 |
| C | 12 | 252 | 598928 | 3089.72 | 707 | 700 | 193.6 |
| C | 12 | 254 | 72845 | 372.61 | 707 | 700 | 193.6 |
| C | 1 | 246 | 41666 | 211.58 | 707 | 700 | 193.6 |
| D | 11 | 129 | 900182 | 4583.06 | 691 | 657 | 196.3 |
| D | 3 | 12 | 296005 | 1504.79 | 691 | 657 | 196.3 |
| D | 2 | 62 | 238279 | 1210.68 | 691 | 657 | 196.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

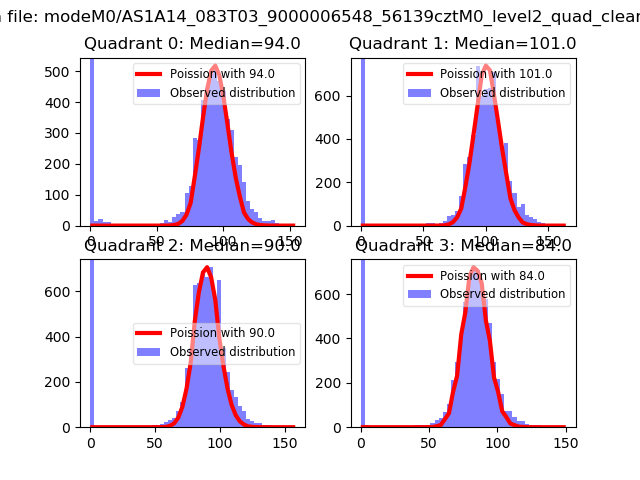

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

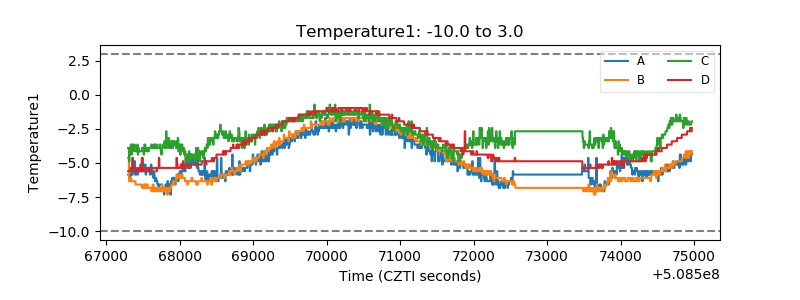

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

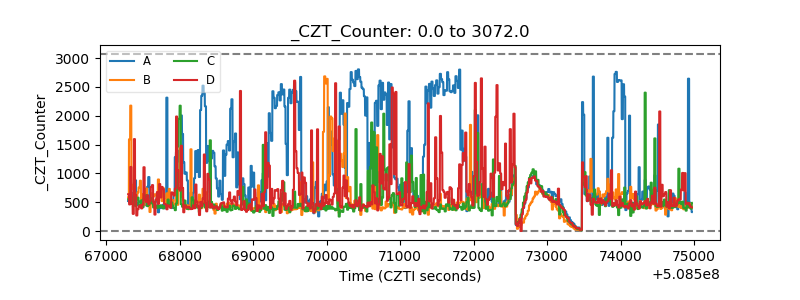

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
