| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T04_9000006550_56174cztM0_level2.fits | modeM0/AS1A14_083T04_9000006550_56174cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,402,560 | 85,322,880 |
| Size | 542.1 MB | 81.4 MB |
| Events in quadrant A | 8,788,454 | 421,735 |
| Events in quadrant B | 3,890,511 | 639,210 |
| Events in quadrant C | 4,657,107 | 551,987 |
| Events in quadrant D | 3,224,127 | 538,646 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30357 | 1 |
| B | 0 | 15976 | 1 |
| C | 0 | 18688 | 1 |
| D | 0 | 13970 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6186 | 2095 | 33.866796% |
| B | 6187 | 171 | 2.763860% |
| C | 6187 | 379 | 6.125748% |
| D | 6187 | 104 | 1.680944% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

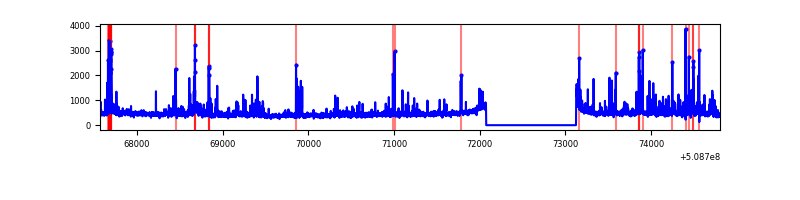

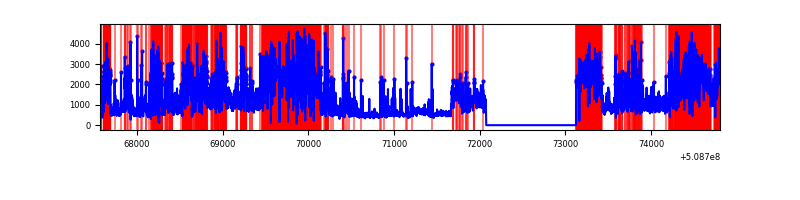

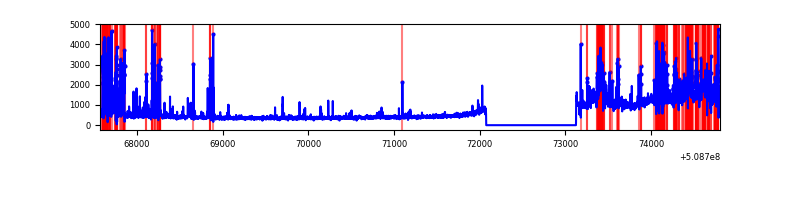

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

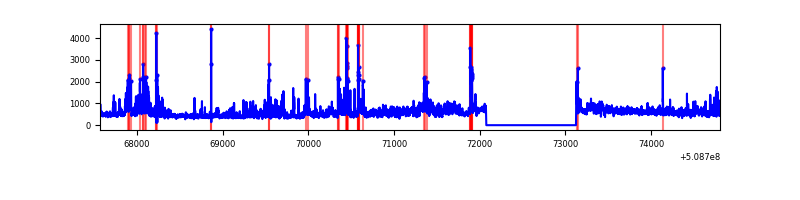

| A | 7235 | 6186 | 1642 | 1642 | 22.70% | 26.54% |  |
| B | 7237 | 6188 | 58 | 58 | 0.80% | 0.94% |  |
| C | 7237 | 6188 | 301 | 301 | 4.16% | 4.86% |  |
| D | 7237 | 6188 | 40 | 40 | 0.55% | 0.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 3355527 | 24658.05 | 550 | 538 | 136.1 |
| A | 12 | 115 | 1398314 | 10273.19 | 550 | 538 | 136.1 |
| A | 8 | 176 | 717887 | 5272.28 | 550 | 538 | 136.1 |
| B | 15 | 52 | 534526 | 3881.16 | 652 | 630 | 137.6 |
| B | 4 | 171 | 172793 | 1251.54 | 652 | 630 | 137.6 |
| B | 5 | 185 | 160001 | 1158.55 | 652 | 630 | 137.6 |
| C | 9 | 38 | 1076035 | 6265.98 | 623 | 615 | 171.6 |
| C | 12 | 254 | 987667 | 5751.1 | 623 | 615 | 171.6 |
| C | 14 | 254 | 90438 | 523.36 | 623 | 615 | 171.6 |
| D | 11 | 129 | 147603 | 820.22 | 636 | 607 | 179.2 |
| D | 2 | 249 | 114748 | 636.89 | 636 | 607 | 179.2 |
| D | 8 | 240 | 95330 | 528.54 | 636 | 607 | 179.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

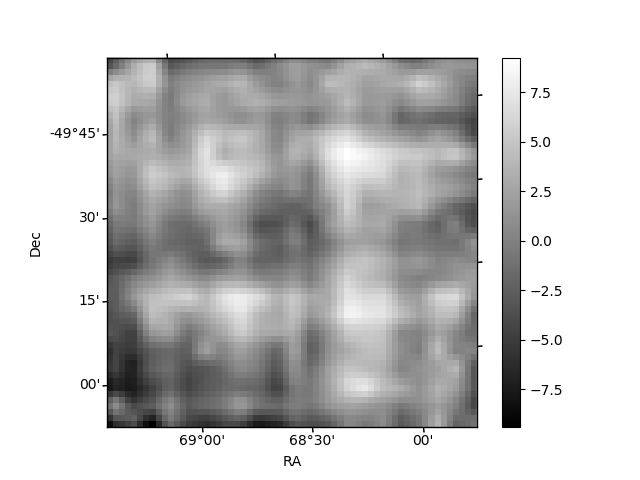

| Plot type | Count rate plots | Images |
|---|---|---|

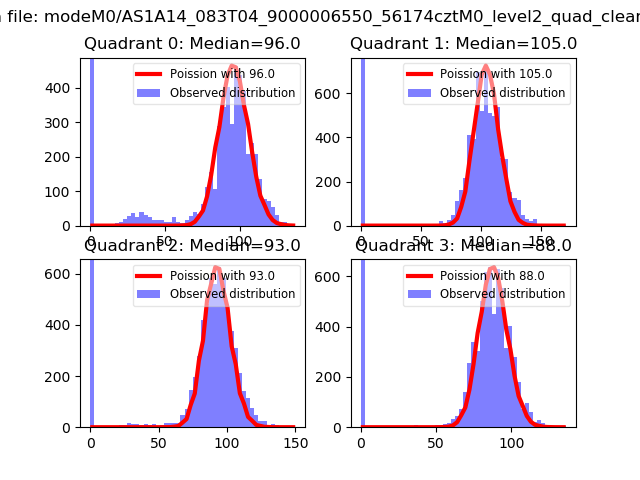

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

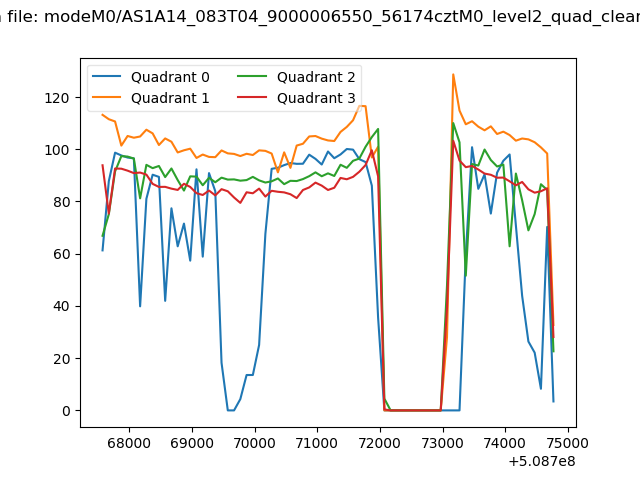

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

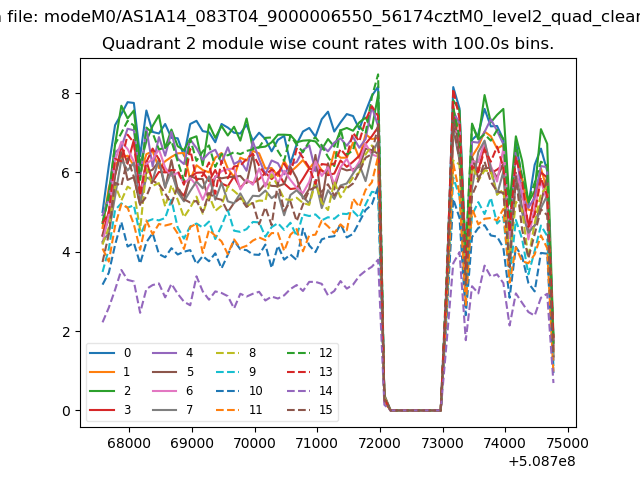

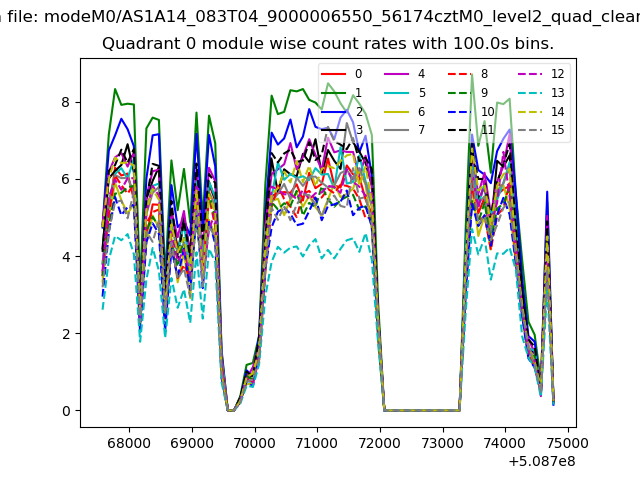

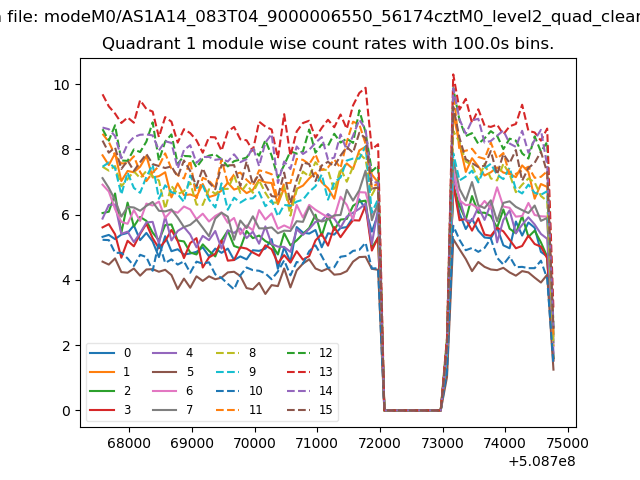

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

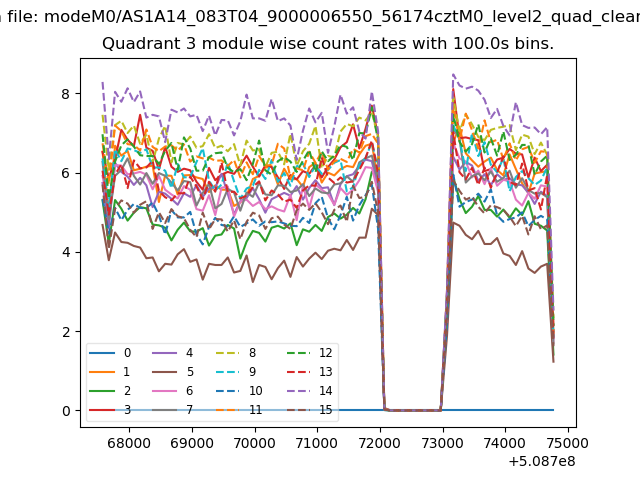

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

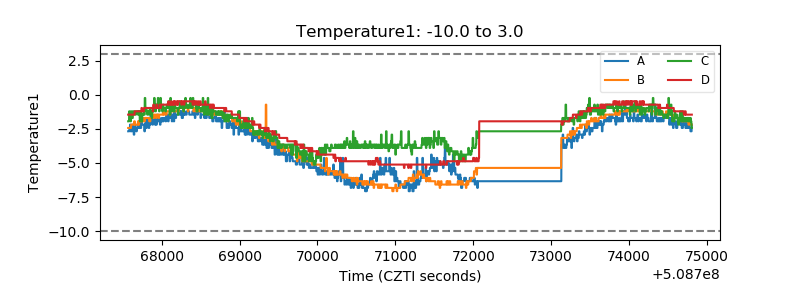

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

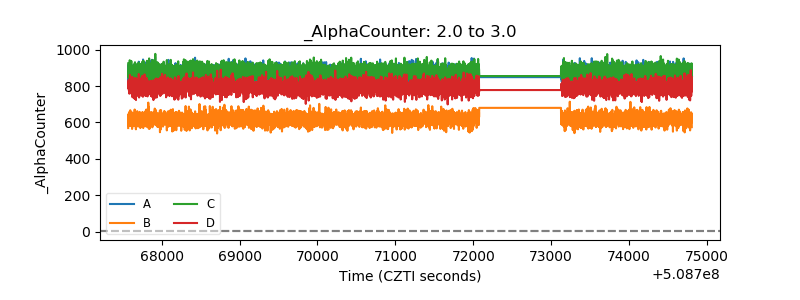

| Alpha Counter |  |

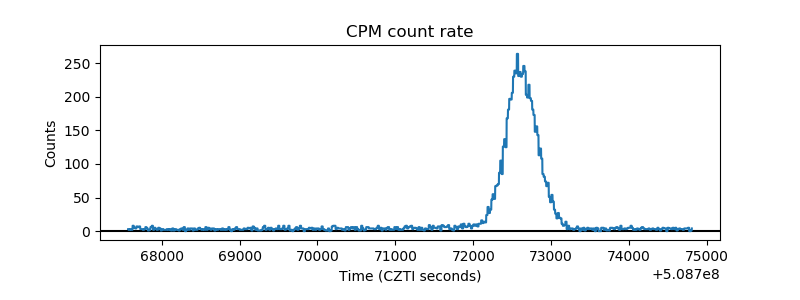

| _CPM_Rate |  |

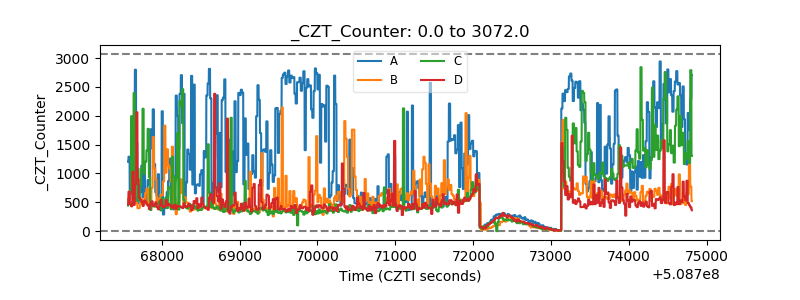

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

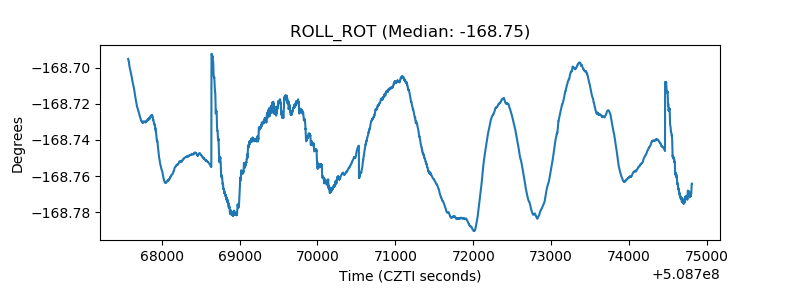

| _ROLL_ROT |  |

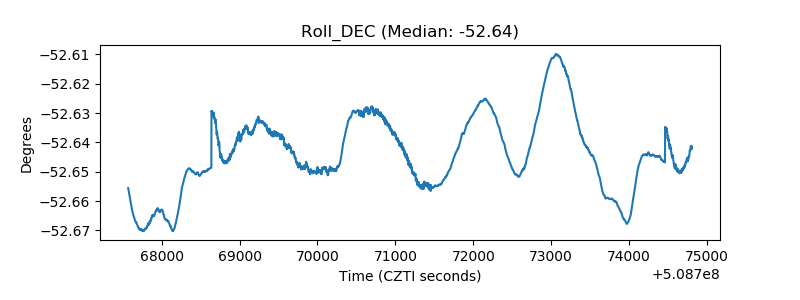

| _Roll_DEC |  |

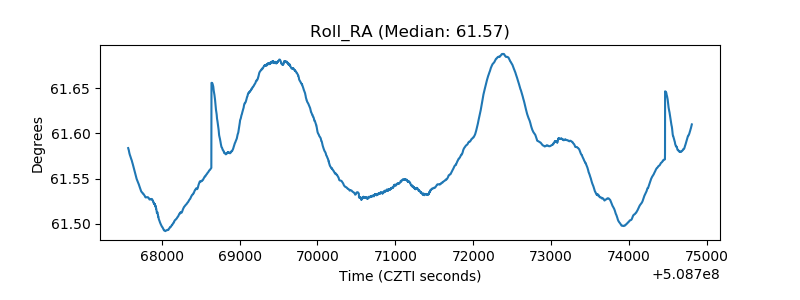

| _Roll_RA |  |

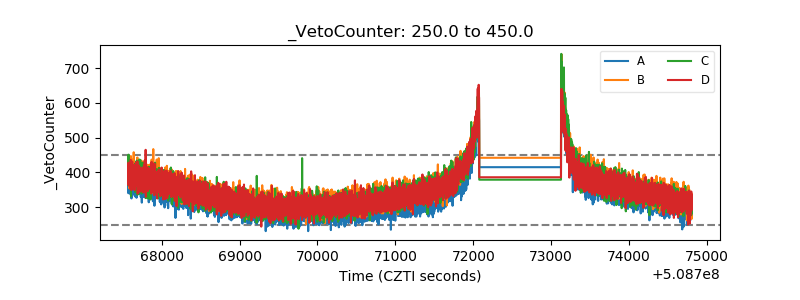

| Veto Counter |  |
