| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T04_9000006550_56229cztM0_level2.fits | modeM0/AS1A14_083T04_9000006550_56229cztM0_level2_quad_clean.evt |
| Size (bytes) | 760,291,200 | 87,912,000 |
| Size | 725.1 MB | 83.8 MB |
| Events in quadrant A | 15,054,159 | 234,027 |
| Events in quadrant B | 4,291,599 | 723,225 |
| Events in quadrant C | 3,457,945 | 647,145 |
| Events in quadrant D | 4,806,574 | 578,547 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49450 | 4 |
| B | 0 | 17461 | 2 |
| C | 0 | 15253 | 2 |
| D | 0 | 19048 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6871 | 4804 | 69.917043% |
| B | 6872 | 253 | 3.681607% |
| C | 6872 | 146 | 2.124563% |
| D | 6872 | 482 | 7.013970% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8981 | 6873 | 4657 | 4657 | 51.85% | 67.76% |  |
| B | 8982 | 6874 | 53 | 53 | 0.59% | 0.77% |  |
| C | 8982 | 6874 | 42 | 42 | 0.47% | 0.61% |  |
| D | 8982 | 6874 | 412 | 412 | 4.59% | 5.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 5446275 | 44218.0 | 489 | 476 | 123.2 |
| A | 15 | 32 | 4602656 | 37368.11 | 489 | 476 | 123.2 |
| A | 8 | 176 | 2209904 | 17939.79 | 489 | 476 | 123.2 |
| B | 4 | 171 | 762196 | 4794.67 | 750 | 724 | 158.8 |
| B | 4 | 206 | 171367 | 1074.47 | 750 | 724 | 158.8 |
| B | 10 | 59 | 132217 | 827.96 | 750 | 724 | 158.8 |
| C | 12 | 252 | 226906 | 1117.97 | 744 | 736 | 202.3 |
| C | 6 | 223 | 156904 | 771.95 | 744 | 736 | 202.3 |
| C | 12 | 254 | 89550 | 439.01 | 744 | 736 | 202.3 |
| D | 8 | 129 | 1095428 | 5388.34 | 721 | 688 | 203.2 |
| D | 2 | 249 | 294306 | 1445.19 | 721 | 688 | 203.2 |
| D | 3 | 12 | 147999 | 725.07 | 721 | 688 | 203.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

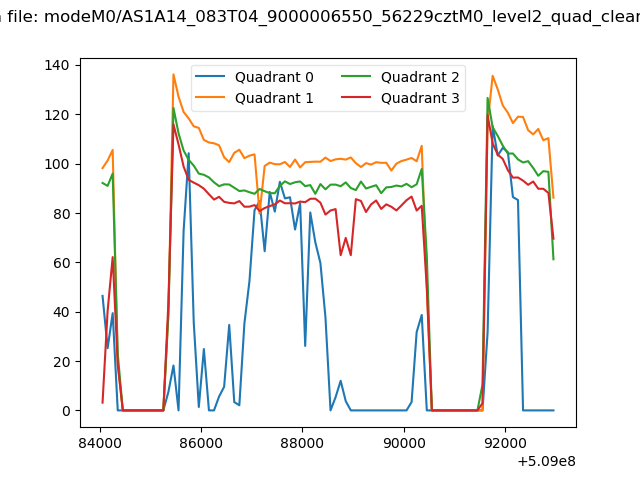

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

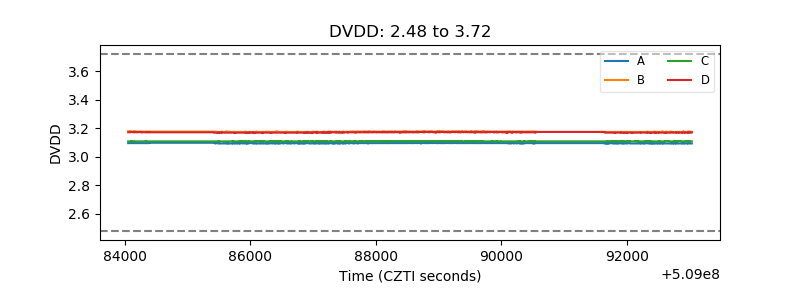

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

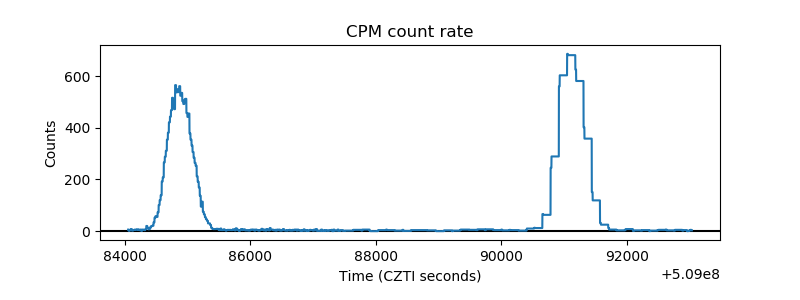

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

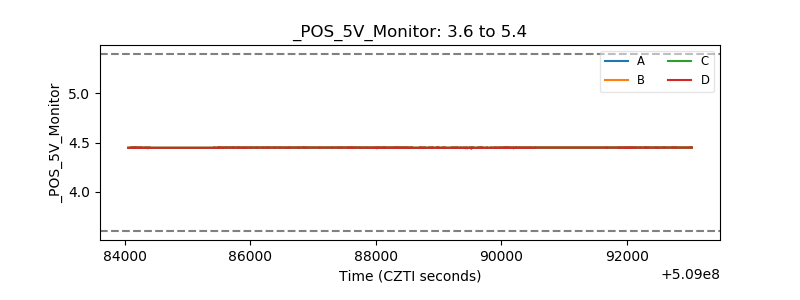

| +5 Volts monitor |  |

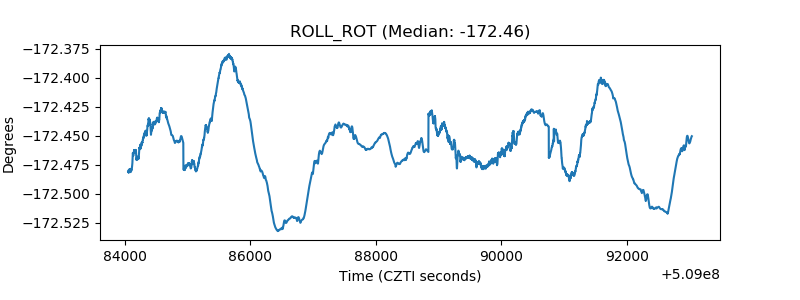

| _ROLL_ROT |  |

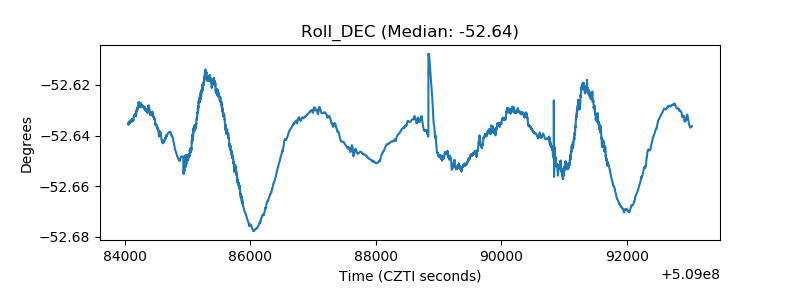

| _Roll_DEC |  |
| _Roll_RA |  |

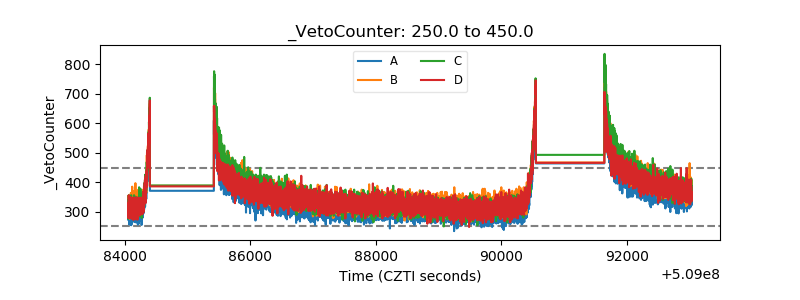

| Veto Counter |  |
