| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_049T01_9000006552_56255cztM0_level2.fits | modeM0/AS1A14_049T01_9000006552_56255cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,351,862,720 | 289,287,360 |
| Size | 2.2 GB | 275.9 MB |
| Events in quadrant A | 42,515,532 | 911,493 |
| Events in quadrant B | 12,884,752 | 2,307,650 |
| Events in quadrant C | 14,068,346 | 2,022,789 |
| Events in quadrant D | 15,759,641 | 1,883,085 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 484 | 0 |
| B | 0 | 484 | 0 |
| C | 0 | 484 | 0 |
| D | 0 | 484 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142843 | 5 |
| B | 0 | 55361 | 6 |
| C | 0 | 59147 | 5 |
| D | 0 | 64016 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23717 | 10932 | 46.093519% |
| B | 23716 | 542 | 2.285377% |
| C | 23717 | 822 | 3.465868% |
| D | 23717 | 986 | 4.157355% |

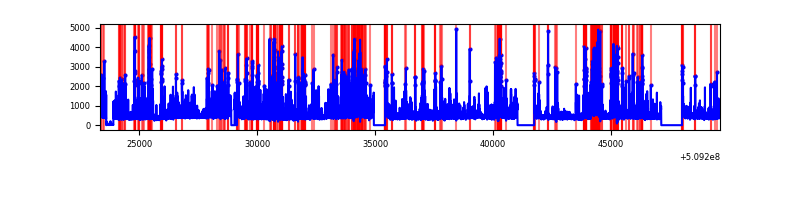

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26276 | 23912 | 9390 | 9390 | 35.74% | 39.27% |  |
| B | 26275 | 24005 | 224 | 224 | 0.85% | 0.93% |  |
| C | 26276 | 24002 | 587 | 587 | 2.23% | 2.45% |  |
| D | 26276 | 24006 | 939 | 939 | 3.57% | 3.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 16727823 | 33754.22 | 1989 | 1941 | 495.5 |
| A | 8 | 176 | 10733302 | 21656.78 | 1989 | 1941 | 495.5 |
| A | 4 | 95 | 1635919 | 3297.5 | 1989 | 1941 | 495.5 |
| B | 5 | 185 | 963676 | 1843.1 | 2470 | 2379 | 521.6 |
| B | 4 | 171 | 450262 | 858.73 | 2470 | 2379 | 521.6 |
| B | 10 | 247 | 390364 | 743.89 | 2470 | 2379 | 521.6 |
| C | 12 | 254 | 1776064 | 2715.31 | 2398 | 2377 | 653.2 |
| C | 6 | 223 | 635554 | 969.32 | 2398 | 2377 | 653.2 |
| C | 12 | 252 | 592747 | 903.79 | 2398 | 2377 | 653.2 |
| D | 8 | 129 | 3203120 | 4712.11 | 2388 | 2278 | 679.3 |
| D | 2 | 249 | 1475856 | 2169.32 | 2388 | 2278 | 679.3 |
| D | 15 | 115 | 651548 | 955.82 | 2388 | 2278 | 679.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

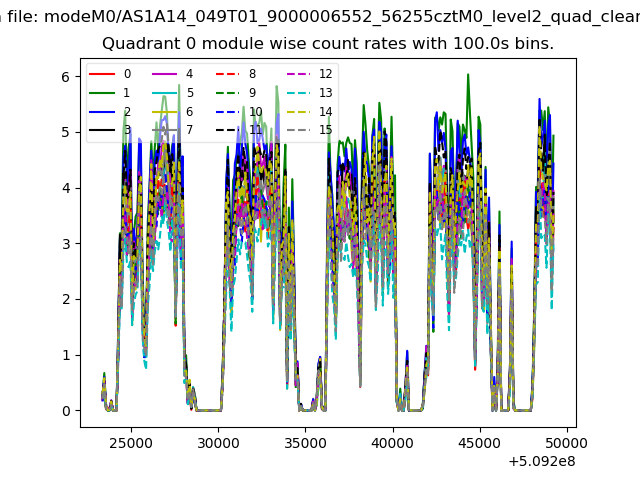

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

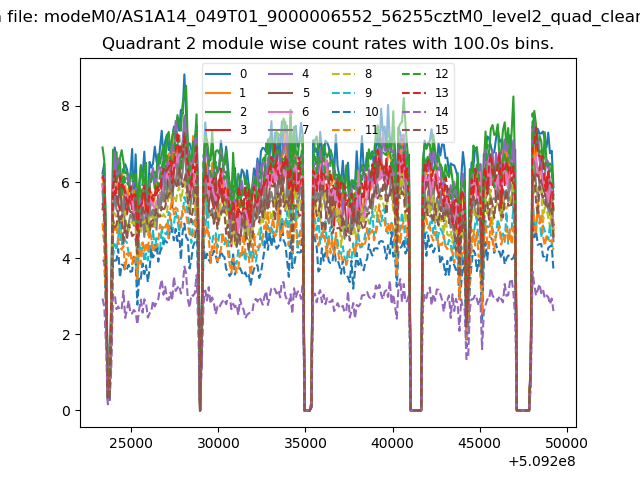

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

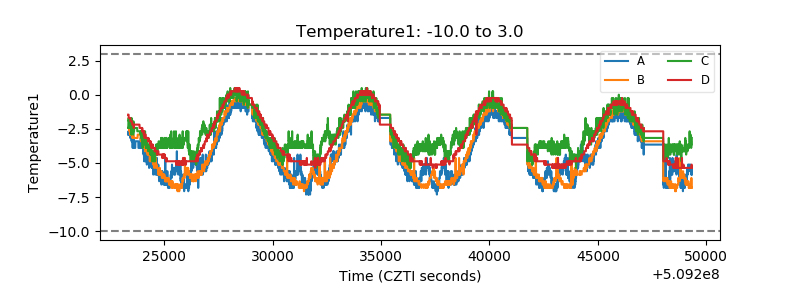

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

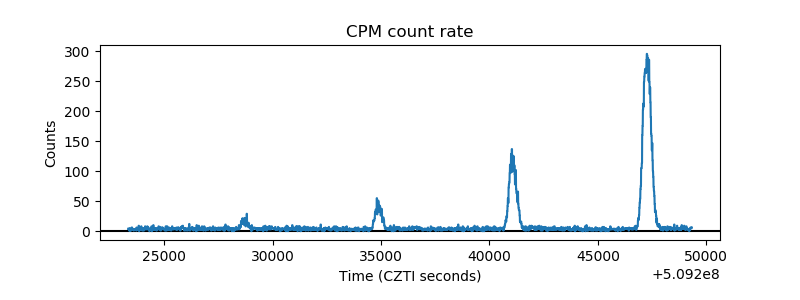

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
