| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_049T01_9000006552_56333cztM0_level2.fits | modeM0/AS1A14_049T01_9000006552_56333cztM0_level2_quad_clean.evt |
| Size (bytes) | 844,894,080 | 69,828,480 |
| Size | 805.8 MB | 66.6 MB |
| Events in quadrant A | 8,439,280 | 453,217 |
| Events in quadrant B | 3,671,090 | 643,138 |
| Events in quadrant C | 3,773,054 | 568,202 |
| Events in quadrant D | 14,917,155 | 22,498 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29316 | 1 |
| B | 0 | 15005 | 1 |
| C | 0 | 15579 | 1 |
| D | 0 | 48479 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6118 | 1762 | 28.800262% |
| B | 6119 | 210 | 3.431933% |
| C | 6119 | 240 | 3.922210% |
| D | 6119 | 5937 | 97.025658% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7243 | 6119 | 1492 | 1492 | 20.60% | 24.38% |  |
| B | 7244 | 6120 | 66 | 66 | 0.91% | 1.08% |  |
| C | 7244 | 6120 | 144 | 144 | 1.99% | 2.35% |  |
| D | 7244 | 6119 | 5264 | 5264 | 72.67% | 86.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 95 | 3942145 | 25455.01 | 622 | 606 | 154.8 |
| A | 7 | 64 | 789597 | 5095.41 | 622 | 606 | 154.8 |
| A | 4 | 249 | 356296 | 2297.1 | 622 | 606 | 154.8 |
| B | 3 | 145 | 341496 | 2394.7 | 668 | 644 | 142.3 |
| B | 5 | 185 | 247440 | 1733.9 | 668 | 644 | 142.3 |
| B | 0 | 231 | 105406 | 736.02 | 668 | 644 | 142.3 |
| C | 5 | 250 | 461853 | 2599.82 | 655 | 648 | 177.4 |
| C | 12 | 252 | 224948 | 1264.38 | 655 | 648 | 177.4 |
| C | 5 | 233 | 148812 | 835.2 | 655 | 648 | 177.4 |
| D | 8 | 129 | 13205518 | 201554.5 | 222 | 211 | 65.5 |
| D | 12 | 3 | 343387 | 5237.94 | 222 | 211 | 65.5 |
| D | 2 | 249 | 309694 | 4723.68 | 222 | 211 | 65.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

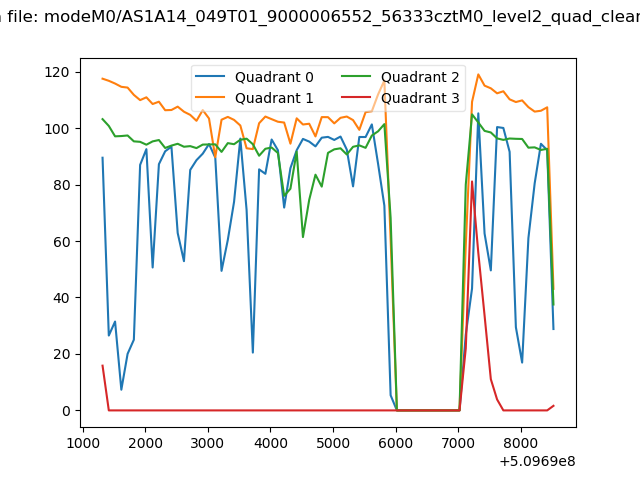

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

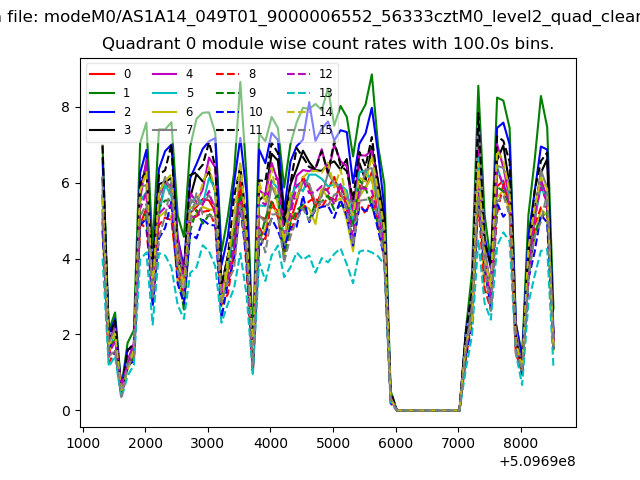

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
