| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T05_9000006554_56415cztM0_level2.fits | modeM0/AS1A14_083T05_9000006554_56415cztM0_level2_quad_clean.evt |
| Size (bytes) | 864,950,400 | 77,022,720 |
| Size | 824.9 MB | 73.5 MB |
| Events in quadrant A | 14,284,246 | 213,219 |
| Events in quadrant B | 6,240,000 | 571,191 |
| Events in quadrant C | 4,384,816 | 572,114 |
| Events in quadrant D | 6,594,520 | 511,427 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46874 | 1 |
| B | 0 | 23082 | 1 |
| C | 0 | 18039 | 1 |
| D | 0 | 24411 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6646 | 4538 | 68.281673% |
| B | 6646 | 1167 | 17.559434% |
| C | 6647 | 339 | 5.100045% |
| D | 6647 | 615 | 9.252294% |

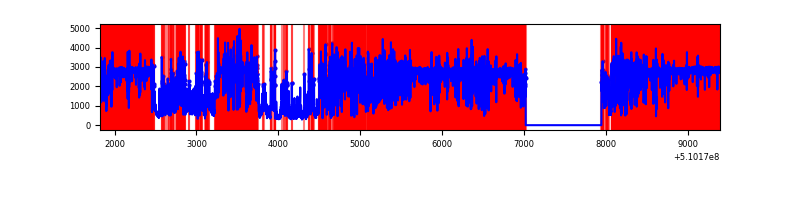

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7570 | 6645 | 4184 | 4184 | 55.27% | 62.96% |  |
| B | 7571 | 6647 | 754 | 754 | 9.96% | 11.34% |  |
| C | 7572 | 6648 | 294 | 294 | 3.88% | 4.42% |  |
| D | 7572 | 6648 | 510 | 510 | 6.74% | 7.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 8938912 | 85874.66 | 410 | 398 | 104.1 |
| A | 7 | 64 | 1396665 | 13414.3 | 410 | 398 | 104.1 |
| A | 12 | 194 | 1141176 | 10959.75 | 410 | 398 | 104.1 |
| B | 4 | 206 | 2445075 | 17495.16 | 648 | 626 | 139.7 |
| B | 5 | 185 | 527344 | 3769.77 | 648 | 626 | 139.7 |
| B | 8 | 128 | 344038 | 2457.83 | 648 | 626 | 139.7 |
| C | 12 | 254 | 1179658 | 6568.57 | 658 | 651 | 179.5 |
| C | 15 | 230 | 462894 | 2575.28 | 658 | 651 | 179.5 |
| C | 12 | 252 | 50853 | 279.69 | 658 | 651 | 179.5 |
| D | 2 | 120 | 1092388 | 5939.98 | 639 | 608 | 183.8 |
| D | 8 | 129 | 1020652 | 5549.69 | 639 | 608 | 183.8 |
| D | 5 | 113 | 750184 | 4078.17 | 639 | 608 | 183.8 |

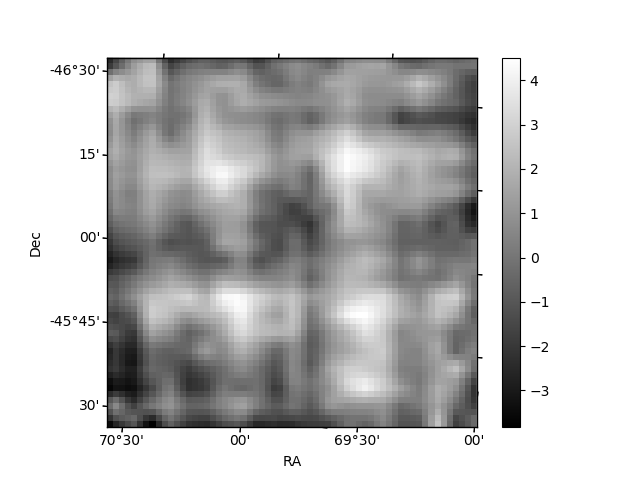

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

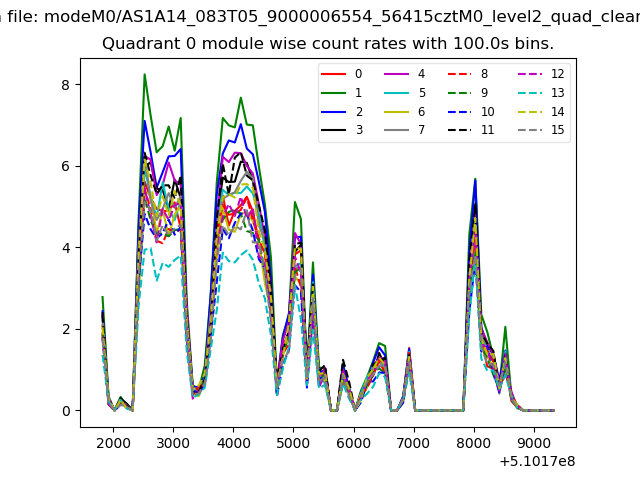

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

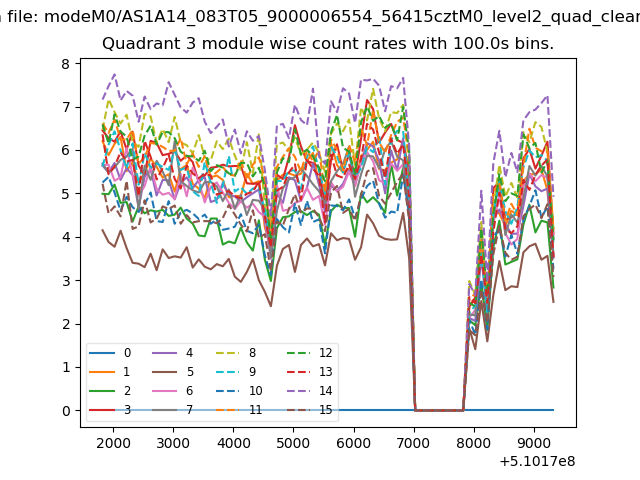

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

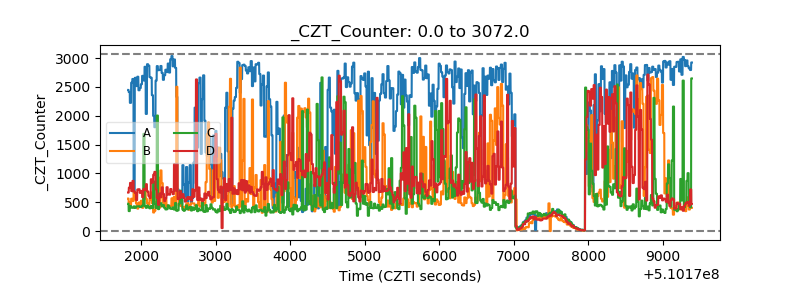

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

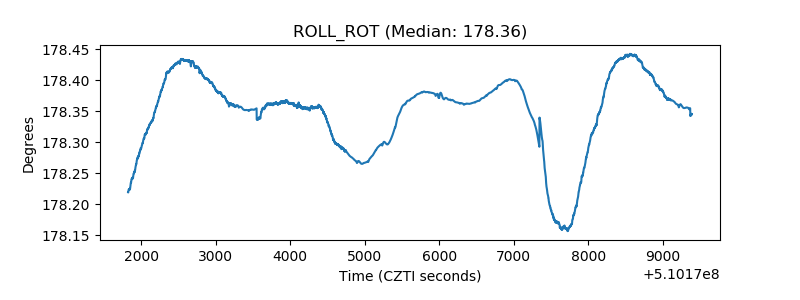

| _ROLL_ROT |  |

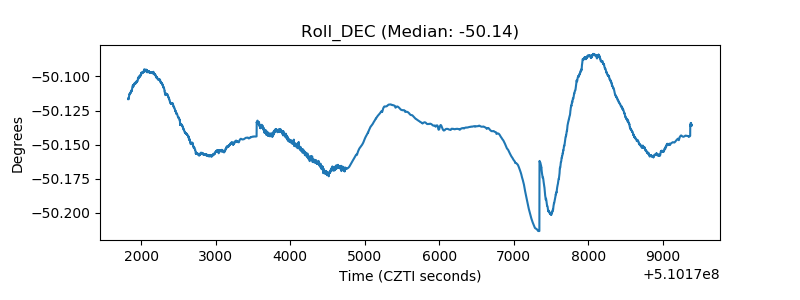

| _Roll_DEC |  |

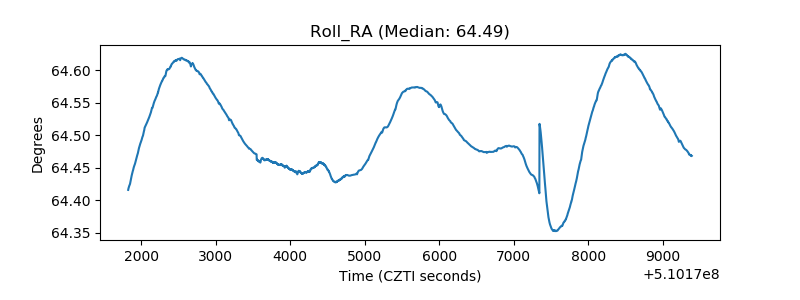

| _Roll_RA |  |
| Veto Counter |  |
