| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T05_9000006554_56436cztM0_level2.fits | modeM0/AS1A14_083T05_9000006554_56436cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,825,920 | 95,238,720 |
| Size | 482.4 MB | 90.8 MB |
| Events in quadrant A | 4,986,046 | 582,383 |
| Events in quadrant B | 4,486,101 | 662,525 |
| Events in quadrant C | 4,397,444 | 602,460 |
| Events in quadrant D | 4,324,548 | 561,564 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19627 | 2 |
| B | 0 | 18017 | 2 |
| C | 0 | 17722 | 2 |
| D | 0 | 17654 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6813 | 785 | 11.522090% |
| B | 6813 | 612 | 8.982827% |
| C | 6813 | 381 | 5.592250% |
| D | 6813 | 349 | 5.122560% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

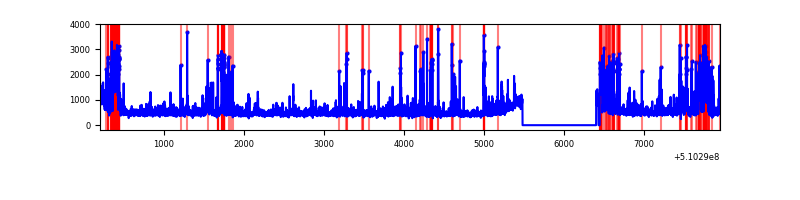

| A | 7748 | 6814 | 676 | 676 | 8.72% | 9.92% |  |
| B | 7748 | 6814 | 287 | 287 | 3.70% | 4.21% |  |
| C | 7748 | 6814 | 237 | 237 | 3.06% | 3.48% |  |
| D | 7748 | 6813 | 267 | 267 | 3.45% | 3.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 1703656 | 9708.86 | 713 | 695 | 175.4 |
| A | 12 | 194 | 227093 | 1290.73 | 713 | 695 | 175.4 |
| A | 0 | 8 | 170367 | 967.33 | 713 | 695 | 175.4 |
| B | 4 | 206 | 1166954 | 7564.31 | 721 | 695 | 154.2 |
| B | 0 | 231 | 175093 | 1131.14 | 721 | 695 | 154.2 |
| B | 10 | 247 | 77773 | 499.92 | 721 | 695 | 154.2 |
| C | 12 | 252 | 408410 | 2064.46 | 728 | 720 | 197.5 |
| C | 12 | 254 | 396937 | 2006.36 | 728 | 720 | 197.5 |
| C | 1 | 16 | 325382 | 1644.02 | 728 | 720 | 197.5 |
| D | 2 | 31 | 333420 | 1662.54 | 716 | 683 | 200.1 |
| D | 2 | 249 | 217984 | 1085.76 | 716 | 683 | 200.1 |
| D | 8 | 129 | 193591 | 963.88 | 716 | 683 | 200.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

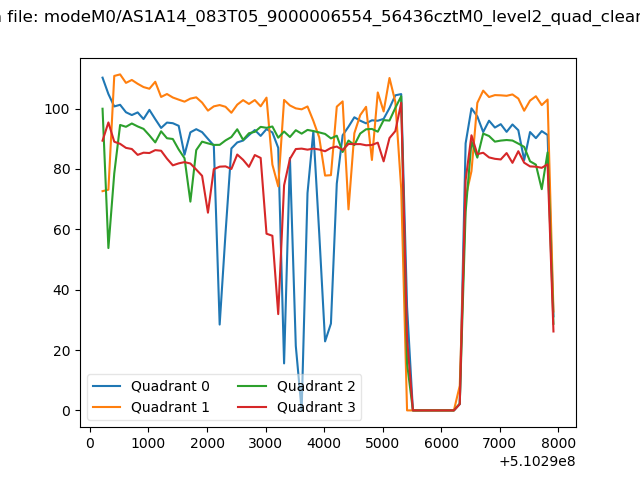

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

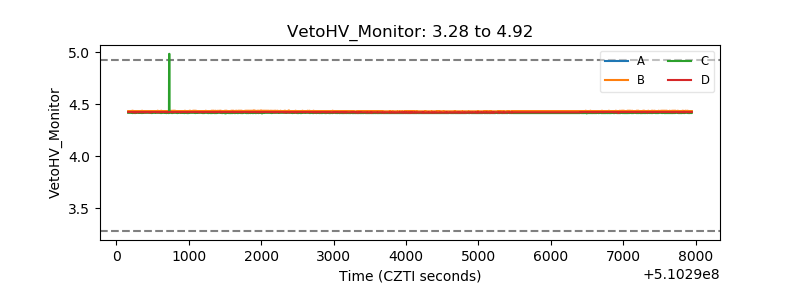

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

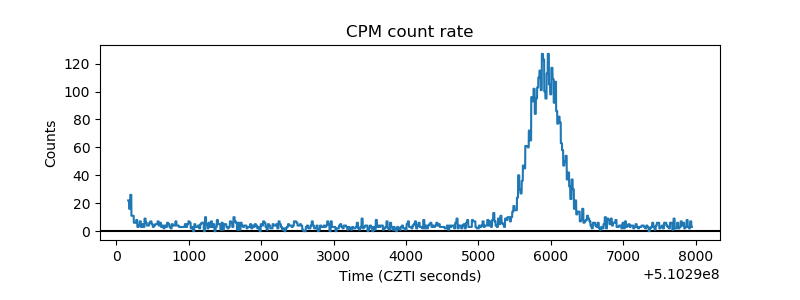

| _CPM_Rate |  |

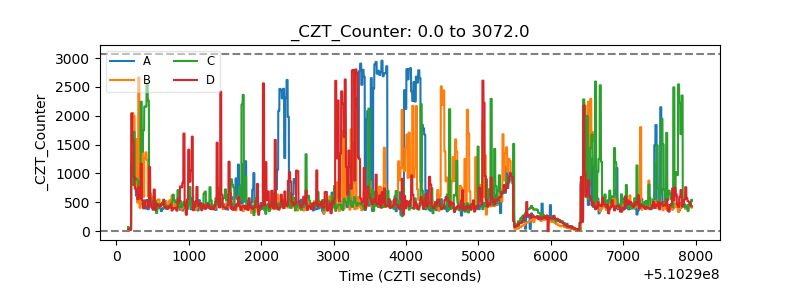

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

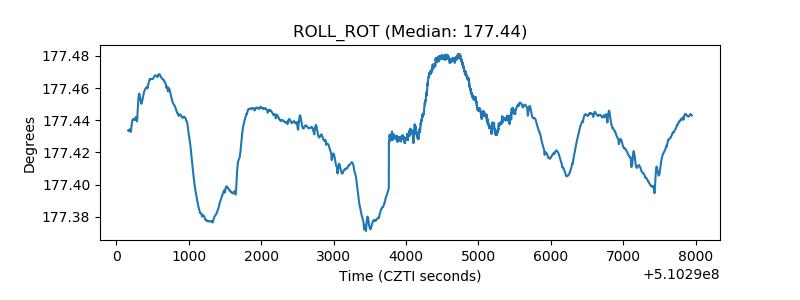

| _ROLL_ROT |  |

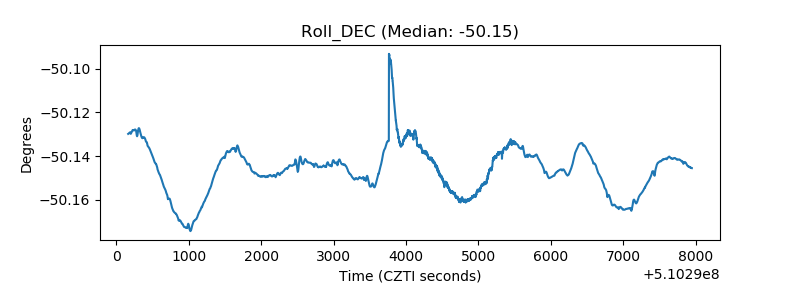

| _Roll_DEC |  |
| _Roll_RA |  |

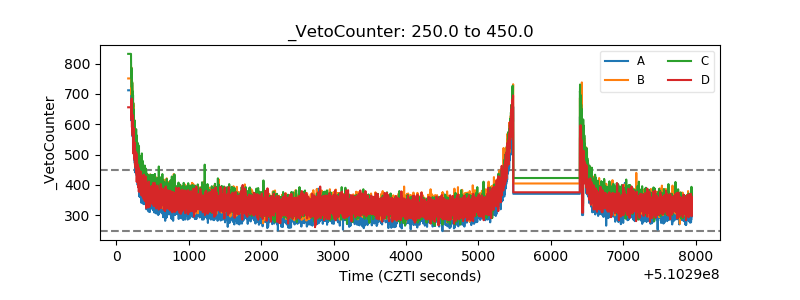

| Veto Counter |  |
