| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_060T01_9000006556_56494cztM0_level2.fits | modeM0/AS1A14_060T01_9000006556_56494cztM0_level2_quad_clean.evt |
| Size (bytes) | 428,074,560 | 98,527,680 |
| Size | 408.2 MB | 94.0 MB |
| Events in quadrant A | 3,742,188 | 637,308 |
| Events in quadrant B | 3,337,192 | 701,677 |
| Events in quadrant C | 3,720,715 | 612,956 |
| Events in quadrant D | 4,521,093 | 561,162 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15898 | 2 |
| B | 0 | 14548 | 2 |
| C | 0 | 16002 | 2 |
| D | 0 | 18077 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6742 | 183 | 2.714328% |
| B | 6743 | 102 | 1.512680% |
| C | 6743 | 229 | 3.396114% |
| D | 6743 | 334 | 4.953285% |

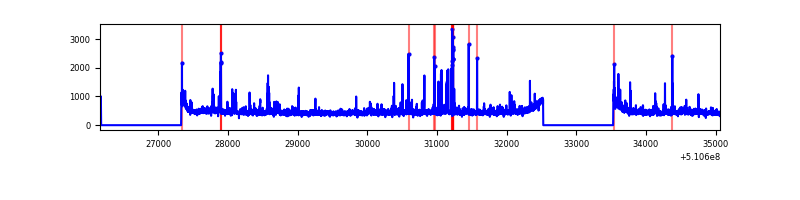

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8897 | 6744 | 122 | 122 | 1.37% | 1.81% |  |
| B | 8898 | 6745 | 21 | 21 | 0.24% | 0.31% |  |
| C | 8898 | 6744 | 144 | 144 | 1.62% | 2.14% |  |
| D | 8898 | 6745 | 279 | 279 | 3.14% | 4.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 230883 | 1251.24 | 746 | 725 | 183.9 |
| A | 4 | 95 | 224928 | 1218.86 | 746 | 725 | 183.9 |
| A | 3 | 45 | 103811 | 560.42 | 746 | 725 | 183.9 |
| B | 10 | 246 | 60129 | 368.81 | 748 | 720 | 161.1 |
| B | 0 | 213 | 57121 | 350.14 | 748 | 720 | 161.1 |
| B | 4 | 206 | 52950 | 324.25 | 748 | 720 | 161.1 |
| C | 13 | 3 | 601913 | 3029.78 | 729 | 723 | 198.4 |
| C | 6 | 223 | 128878 | 645.85 | 729 | 723 | 198.4 |
| C | 12 | 252 | 46960 | 233.02 | 729 | 723 | 198.4 |
| D | 2 | 249 | 699267 | 3482.67 | 717 | 685 | 200.6 |
| D | 11 | 176 | 469146 | 2335.44 | 717 | 685 | 200.6 |
| D | 3 | 12 | 174259 | 865.33 | 717 | 685 | 200.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

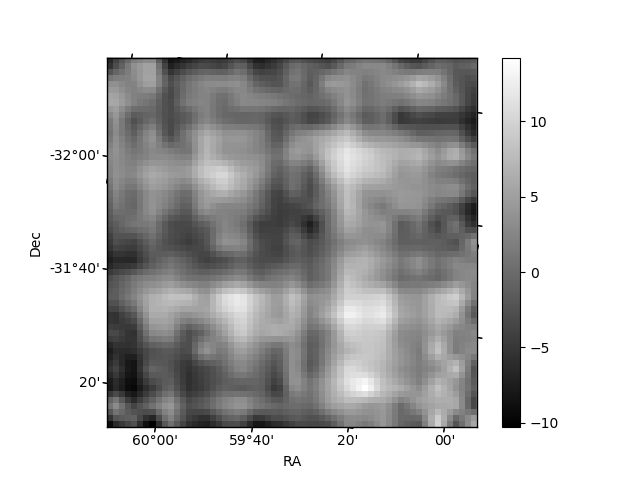

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

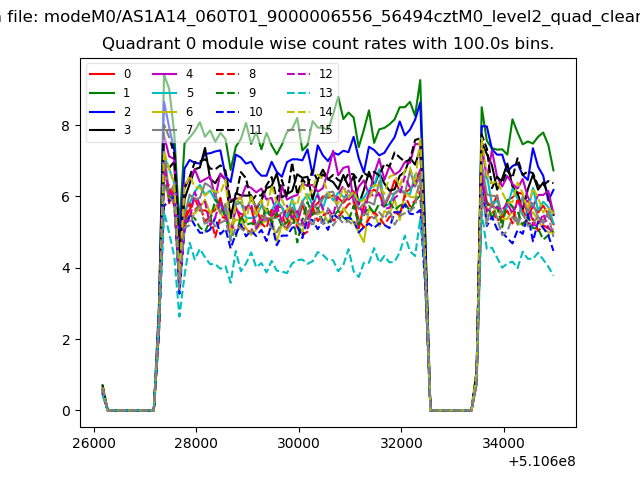

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

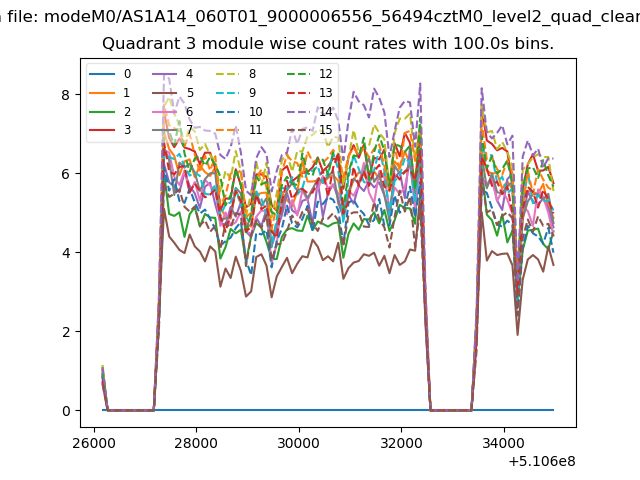

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

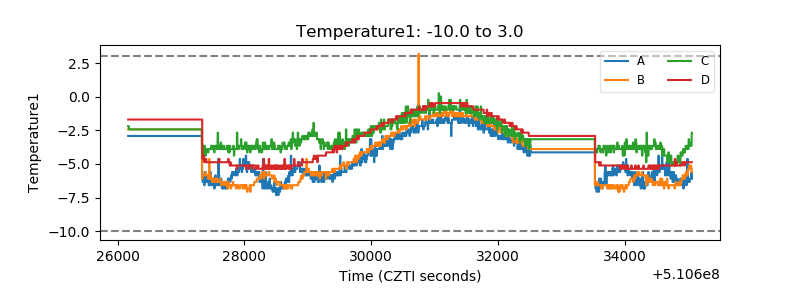

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

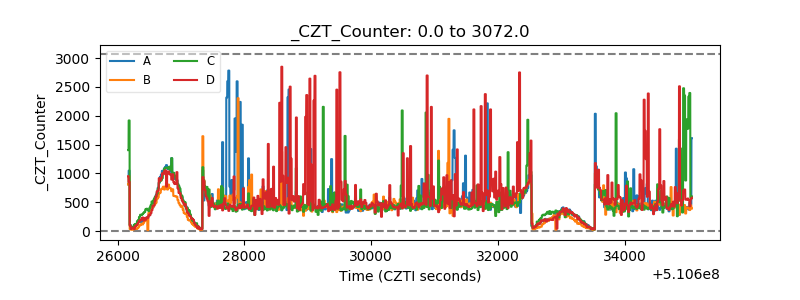

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

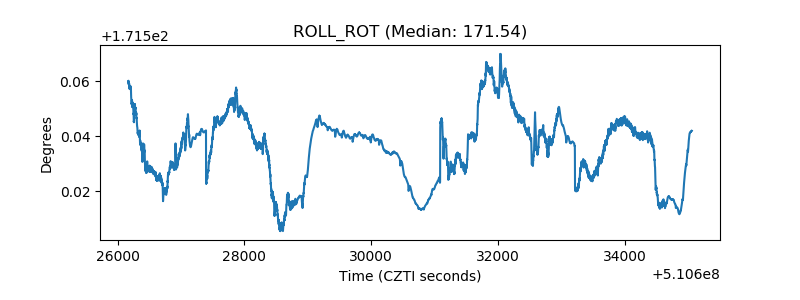

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

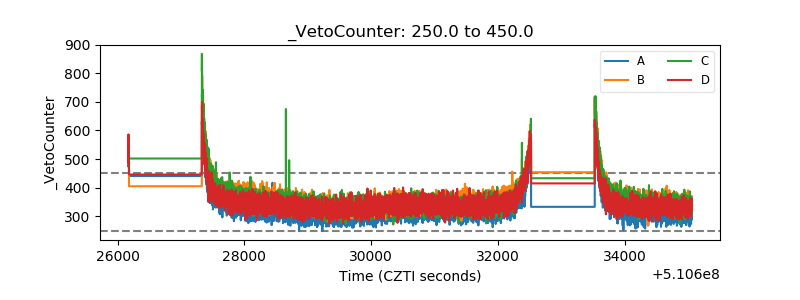

| Veto Counter |  |
