| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_060T01_9000006556_56522cztM0_level2.fits | modeM0/AS1A14_060T01_9000006556_56522cztM0_level2_quad_clean.evt |
| Size (bytes) | 653,575,680 | 85,271,040 |
| Size | 623.3 MB | 81.3 MB |
| Events in quadrant A | 10,425,188 | 396,134 |
| Events in quadrant B | 4,879,718 | 634,059 |
| Events in quadrant C | 4,267,405 | 568,373 |
| Events in quadrant D | 4,132,733 | 543,667 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35302 | 2 |
| B | 0 | 18821 | 2 |
| C | 0 | 17172 | 2 |
| D | 0 | 16735 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6297 | 2587 | 41.083055% |
| B | 6297 | 594 | 9.433063% |
| C | 6297 | 400 | 6.352231% |
| D | 6297 | 252 | 4.001906% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7482 | 6298 | 2502 | 2502 | 33.44% | 39.73% |  |
| B | 7482 | 6297 | 307 | 307 | 4.10% | 4.88% |  |
| C | 7482 | 6298 | 396 | 396 | 5.29% | 6.29% |  |
| D | 7482 | 6298 | 225 | 225 | 3.01% | 3.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 5949623 | 41622.18 | 576 | 562 | 142.9 |
| A | 0 | 12 | 1355660 | 9480.85 | 576 | 562 | 142.9 |
| A | 4 | 95 | 434568 | 3036.49 | 576 | 562 | 142.9 |
| B | 4 | 206 | 1873538 | 13152.98 | 673 | 648 | 142.4 |
| B | 4 | 169 | 59297 | 411.88 | 673 | 648 | 142.4 |
| B | 10 | 247 | 55400 | 384.51 | 673 | 648 | 142.4 |
| C | 15 | 230 | 1266769 | 6950.58 | 661 | 657 | 182.2 |
| C | 13 | 3 | 229347 | 1255.44 | 661 | 657 | 182.2 |
| C | 6 | 223 | 82233 | 447.83 | 661 | 657 | 182.2 |
| D | 2 | 249 | 877046 | 4624.56 | 663 | 633 | 189.5 |
| D | 11 | 176 | 181721 | 955.54 | 663 | 633 | 189.5 |
| D | 9 | 49 | 135100 | 709.54 | 663 | 633 | 189.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

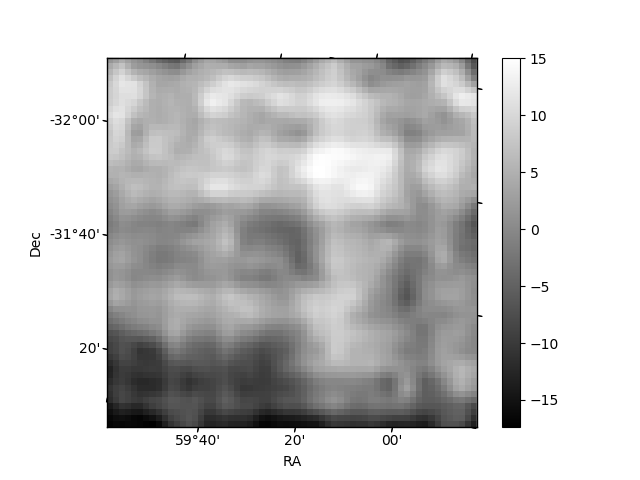

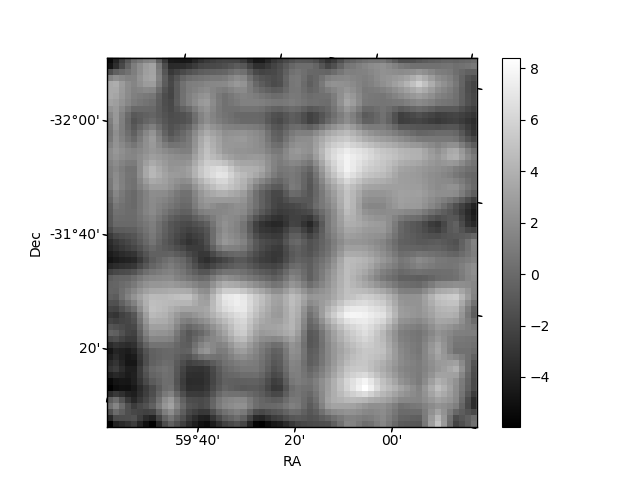

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

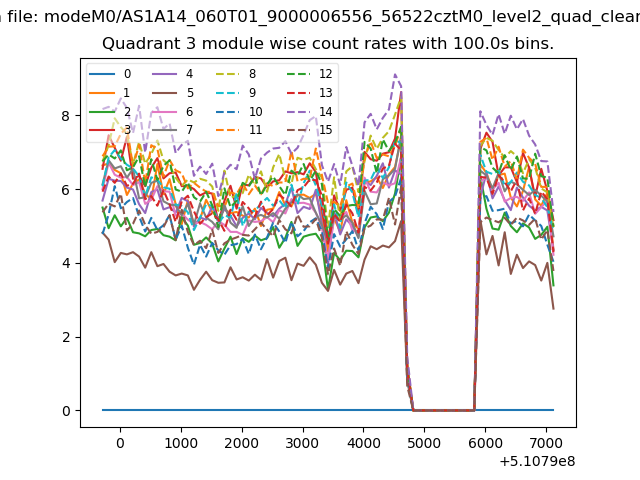

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

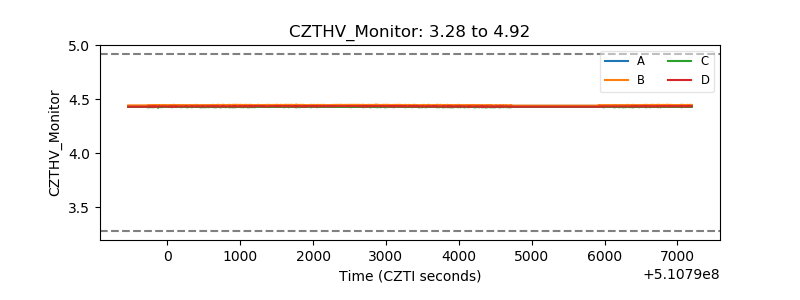

| CZT HV Monitor |  |
| D_VDD |  |

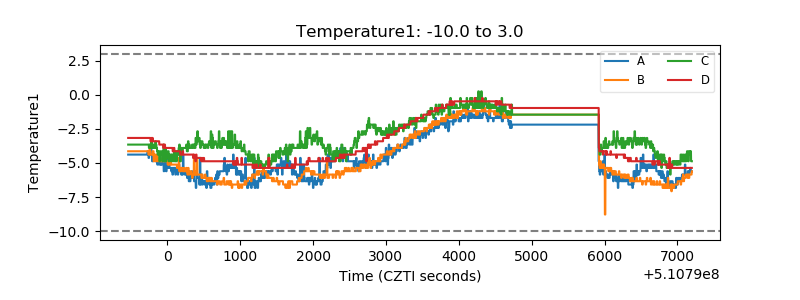

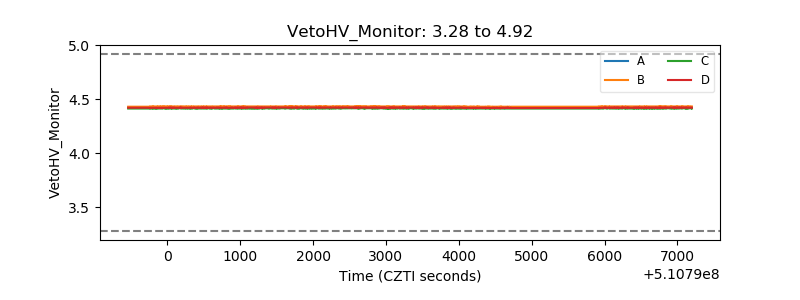

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

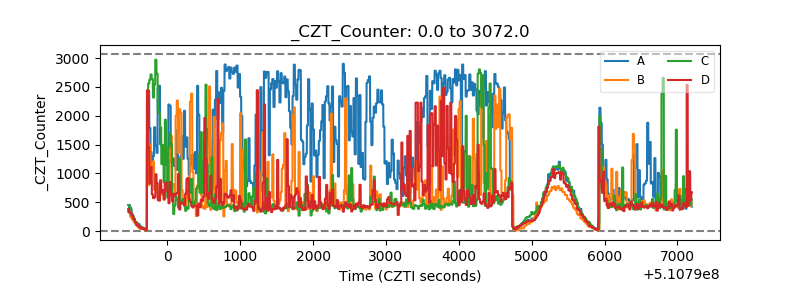

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

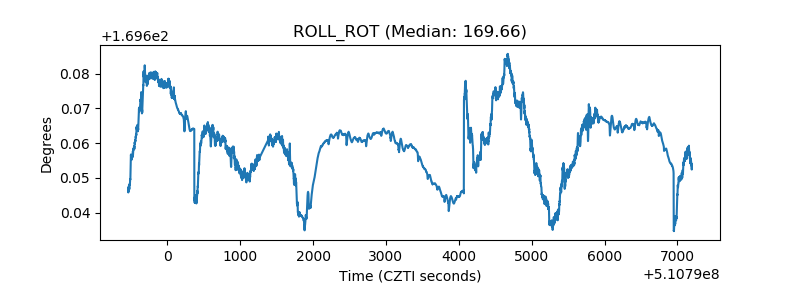

| _ROLL_ROT |  |

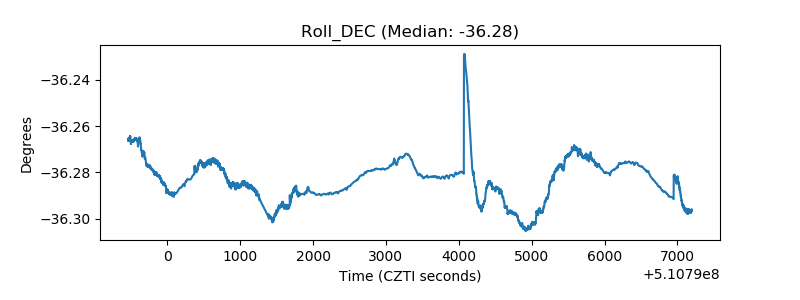

| _Roll_DEC |  |
| _Roll_RA |  |

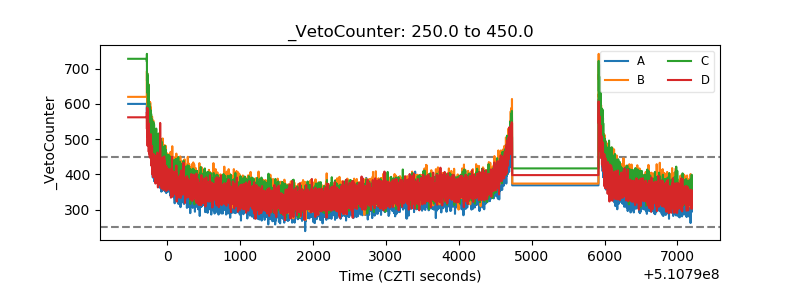

| Veto Counter |  |
