| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56560cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56560cztM0_level2_quad_clean.evt |
| Size (bytes) | 610,845,120 | 89,902,080 |
| Size | 582.5 MB | 85.7 MB |
| Events in quadrant A | 8,011,208 | 534,857 |
| Events in quadrant B | 3,371,833 | 669,217 |
| Events in quadrant C | 5,451,757 | 537,407 |
| Events in quadrant D | 5,260,914 | 516,318 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28354 | 1 |
| B | 0 | 14699 | 1 |
| C | 0 | 20991 | 1 |
| D | 0 | 20253 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6652 | 1311 | 19.708358% |
| B | 6652 | 101 | 1.518340% |
| C | 6653 | 788 | 11.844281% |
| D | 6653 | 622 | 9.349166% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7467 | 6653 | 1117 | 1117 | 14.96% | 16.79% |  |
| B | 7467 | 6653 | 23 | 23 | 0.31% | 0.35% |  |
| C | 7468 | 6654 | 628 | 628 | 8.41% | 9.44% |  |
| D | 7468 | 6654 | 482 | 482 | 6.45% | 7.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 5008199 | 29847.63 | 673 | 655 | 167.8 |
| A | 0 | 8 | 96299 | 570.09 | 673 | 655 | 167.8 |
| A | 4 | 78 | 79914 | 472.43 | 673 | 655 | 167.8 |
| B | 4 | 171 | 96679 | 633.82 | 708 | 683 | 151.5 |
| B | 0 | 63 | 84465 | 553.18 | 708 | 683 | 151.5 |
| B | 5 | 185 | 76585 | 501.15 | 708 | 683 | 151.5 |
| C | 15 | 230 | 1790487 | 10016.02 | 652 | 646 | 178.7 |
| C | 12 | 252 | 536670 | 2999.61 | 652 | 646 | 178.7 |
| C | 12 | 254 | 194525 | 1084.95 | 652 | 646 | 178.7 |
| D | 2 | 249 | 1357122 | 7259.19 | 661 | 630 | 186.9 |
| D | 8 | 240 | 541391 | 2893.85 | 661 | 630 | 186.9 |
| D | 2 | 31 | 169694 | 904.74 | 661 | 630 | 186.9 |

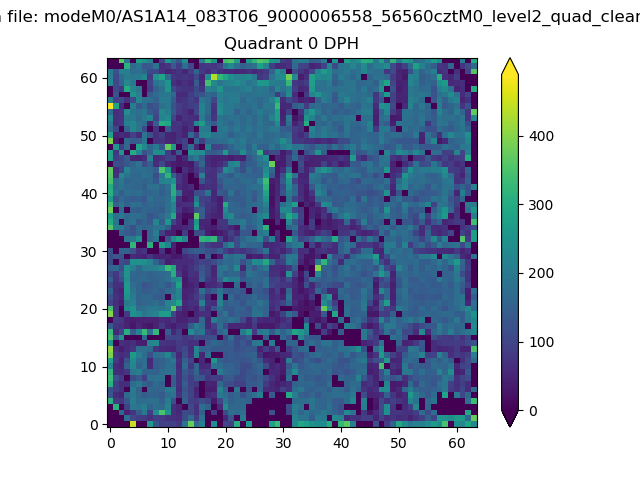

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

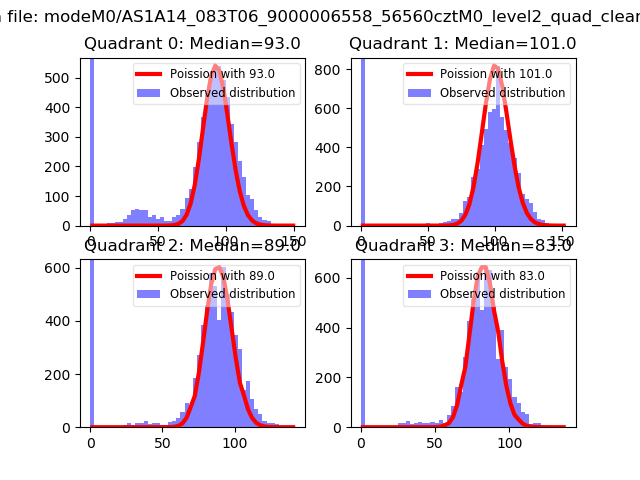

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

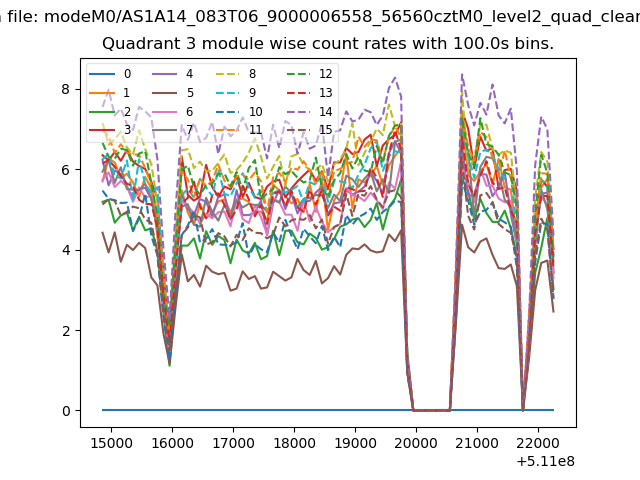

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

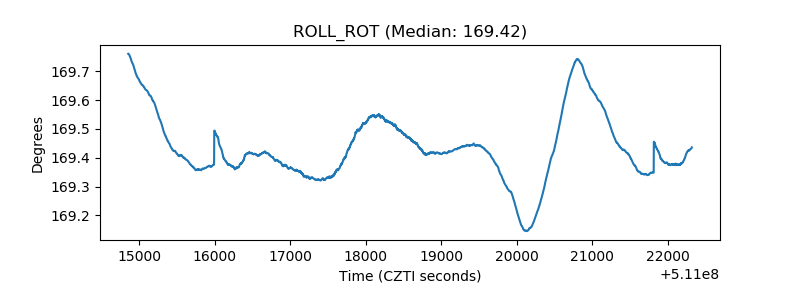

| _ROLL_ROT |  |

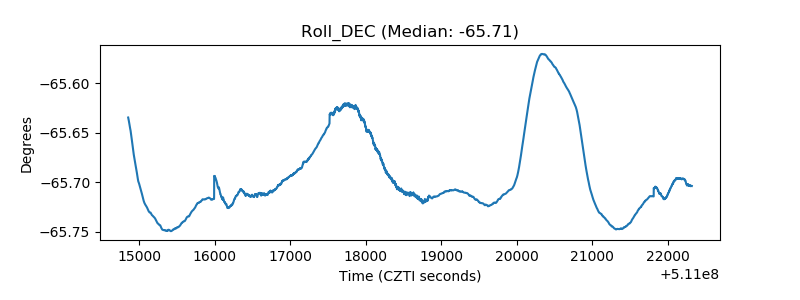

| _Roll_DEC |  |

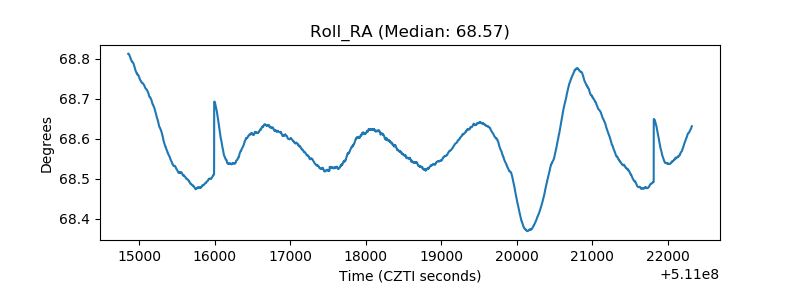

| _Roll_RA |  |

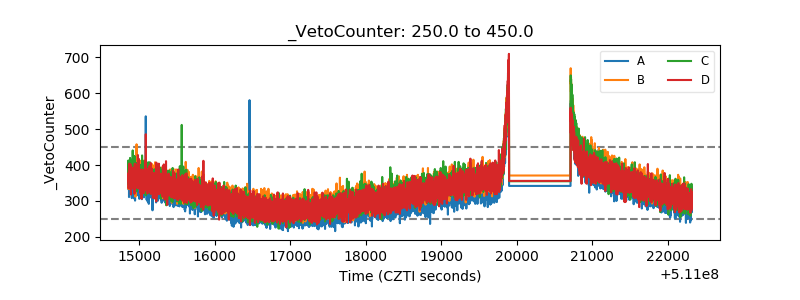

| Veto Counter |  |
