| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56564cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56564cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,939,520 | 88,436,160 |
| Size | 532.1 MB | 84.3 MB |
| Events in quadrant A | 8,082,055 | 493,927 |
| Events in quadrant B | 3,044,485 | 679,935 |
| Events in quadrant C | 5,298,919 | 512,753 |
| Events in quadrant D | 3,735,747 | 549,257 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28291 | 2 |
| B | 0 | 13443 | 1 |
| C | 0 | 20317 | 1 |
| D | 0 | 15494 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6332 | 1642 | 25.931775% |
| B | 6332 | 45 | 0.710676% |
| C | 6333 | 865 | 13.658614% |
| D | 6333 | 100 | 1.579030% |

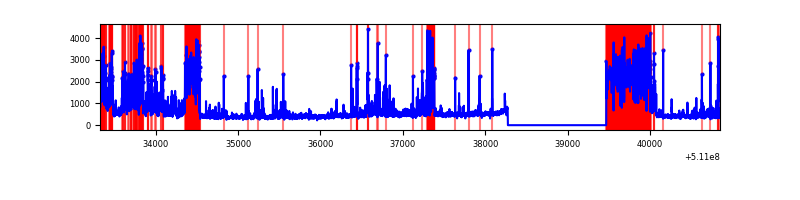

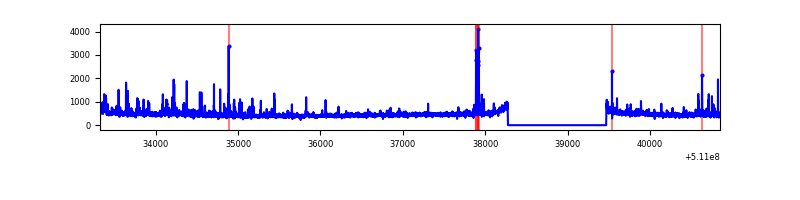

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7528 | 6333 | 1518 | 1518 | 20.16% | 23.97% |  |
| B | 7528 | 6333 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7529 | 6334 | 741 | 741 | 9.84% | 11.70% |  |
| D | 7529 | 6334 | 98 | 98 | 1.30% | 1.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 3673853 | 23242.04 | 631 | 615 | 158.0 |
| A | 4 | 95 | 1090425 | 6895.66 | 631 | 615 | 158.0 |
| A | 4 | 249 | 425155 | 2686.23 | 631 | 615 | 158.0 |
| B | 10 | 247 | 86128 | 585.82 | 687 | 664 | 145.9 |
| B | 4 | 21 | 46660 | 315.28 | 687 | 664 | 145.9 |
| B | 8 | 128 | 32923 | 221.12 | 687 | 664 | 145.9 |
| C | 15 | 230 | 2158890 | 12900.78 | 606 | 599 | 167.3 |
| C | 6 | 223 | 232166 | 1384.15 | 606 | 599 | 167.3 |
| C | 9 | 38 | 162944 | 970.39 | 606 | 599 | 167.3 |
| D | 2 | 249 | 401086 | 2163.9 | 647 | 618 | 185.1 |
| D | 8 | 129 | 240342 | 1295.33 | 647 | 618 | 185.1 |
| D | 3 | 12 | 92790 | 498.04 | 647 | 618 | 185.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

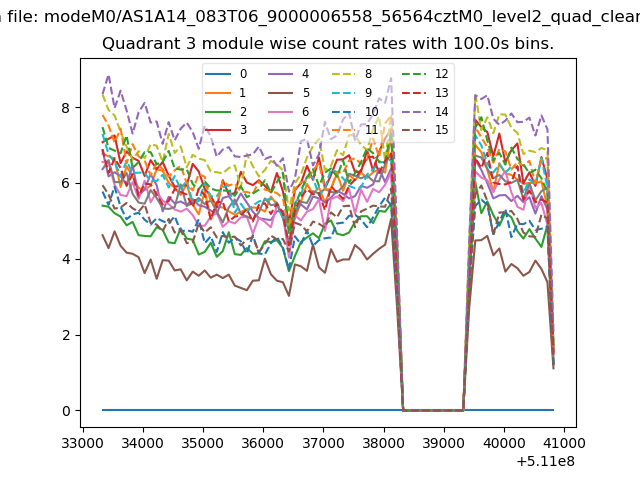

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

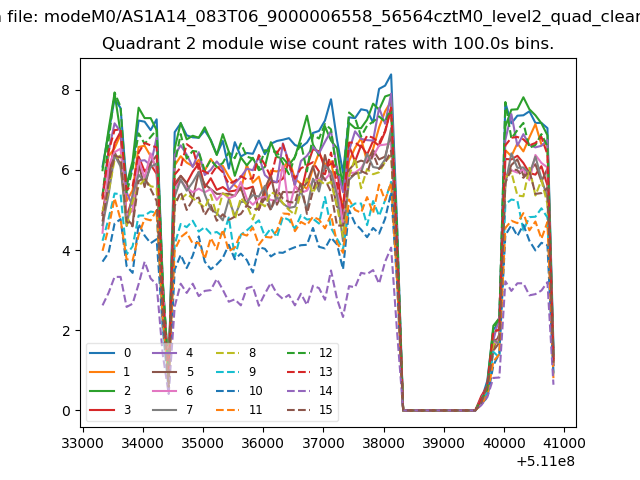

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

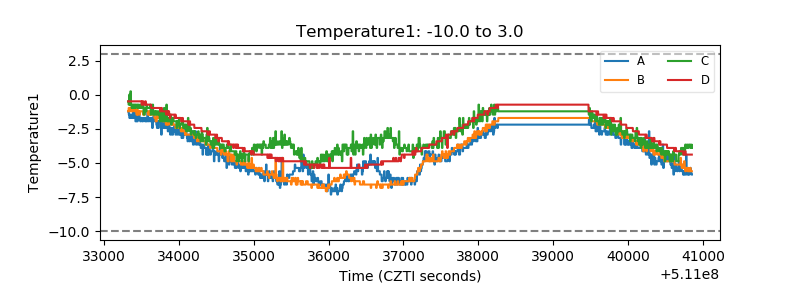

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

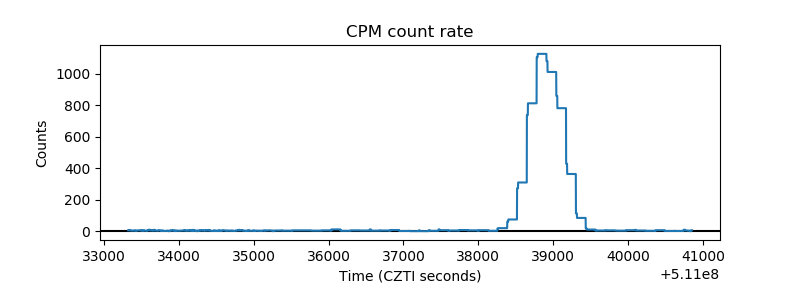

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

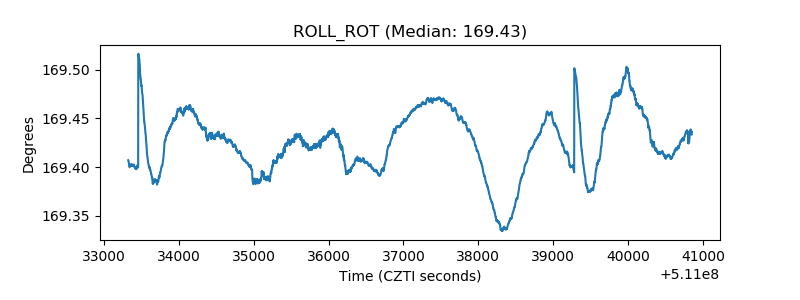

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
