| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56593cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56593cztM0_level2_quad_clean.evt |
| Size (bytes) | 399,908,160 | 94,236,480 |
| Size | 381.4 MB | 89.9 MB |
| Events in quadrant A | 4,227,308 | 610,082 |
| Events in quadrant B | 2,940,676 | 676,382 |
| Events in quadrant C | 2,826,185 | 589,274 |
| Events in quadrant D | 4,320,712 | 539,639 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17062 | 2 |
| B | 0 | 13343 | 2 |
| C | 0 | 13222 | 3 |
| D | 0 | 17302 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6280 | 226 | 3.598726% |
| B | 6280 | 44 | 0.700637% |
| C | 6279 | 33 | 0.525561% |
| D | 6279 | 227 | 3.615225% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

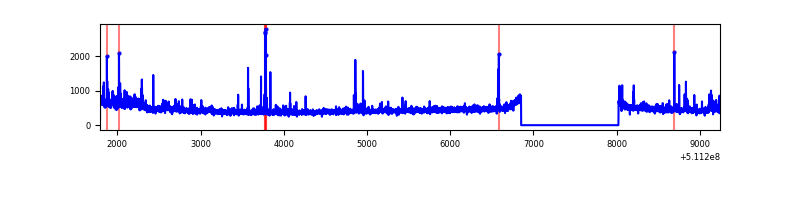

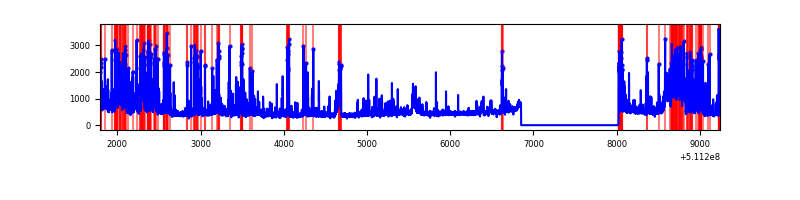

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7450 | 6280 | 158 | 158 | 2.12% | 2.52% |  |
| B | 7450 | 6281 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7449 | 6280 | 23 | 23 | 0.31% | 0.37% |  |
| D | 7449 | 6280 | 236 | 236 | 3.17% | 3.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 579022 | 3461.23 | 677 | 662 | 167.1 |
| A | 13 | 248 | 262420 | 1566.51 | 677 | 662 | 167.1 |
| A | 0 | 8 | 258813 | 1544.92 | 677 | 662 | 167.1 |
| B | 4 | 206 | 84365 | 576.25 | 682 | 659 | 145.3 |
| B | 4 | 21 | 34696 | 234.32 | 682 | 659 | 145.3 |
| B | 5 | 236 | 23542 | 157.53 | 682 | 659 | 145.3 |
| C | 14 | 254 | 98632 | 541.18 | 654 | 646 | 181.1 |
| C | 13 | 3 | 85538 | 468.86 | 654 | 646 | 181.1 |
| C | 12 | 252 | 42719 | 232.37 | 654 | 646 | 181.1 |
| D | 6 | 239 | 705907 | 3840.27 | 642 | 611 | 183.7 |
| D | 2 | 249 | 230548 | 1251.98 | 642 | 611 | 183.7 |
| D | 2 | 31 | 203738 | 1106.01 | 642 | 611 | 183.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

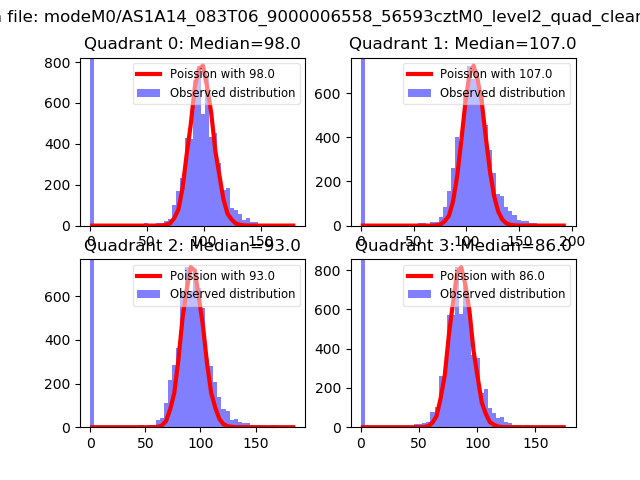

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

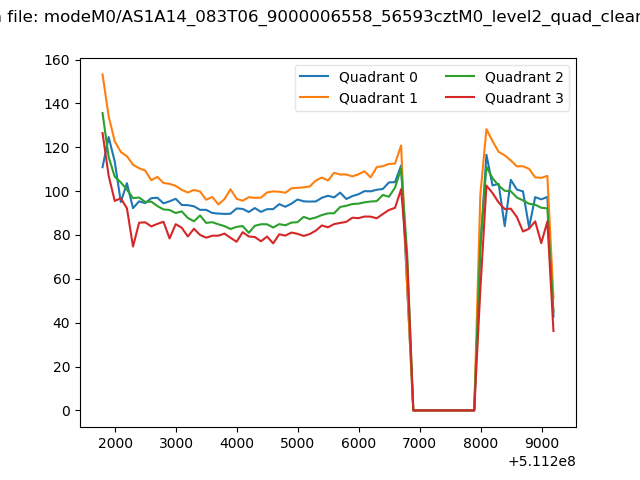

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

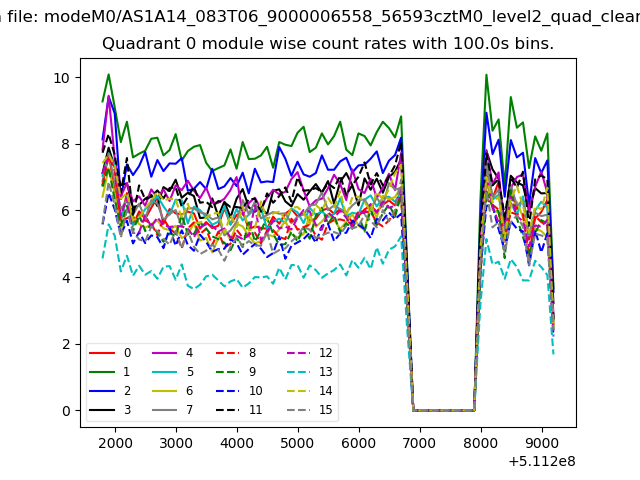

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

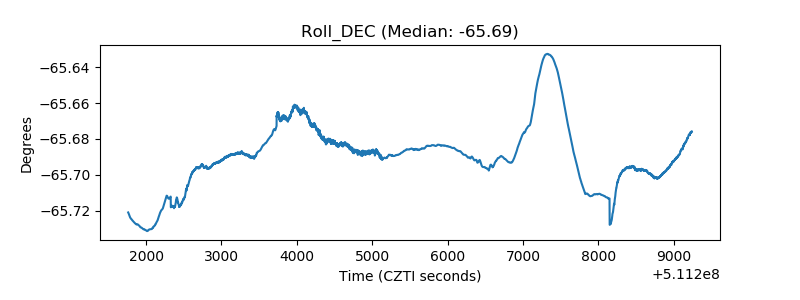

| _Roll_DEC |  |

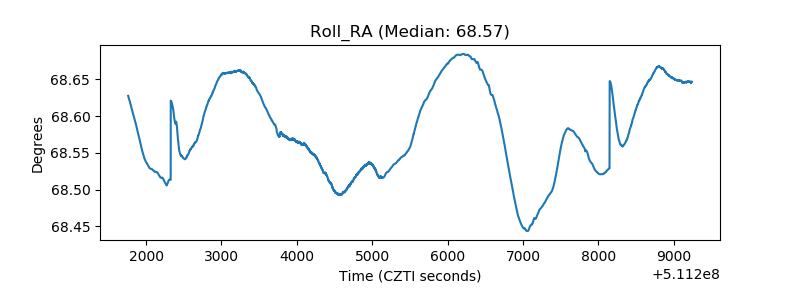

| _Roll_RA |  |
| Veto Counter |  |
