| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56594cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56594cztM0_level2_quad_clean.evt |
| Size (bytes) | 399,962,880 | 92,655,360 |
| Size | 381.4 MB | 88.4 MB |
| Events in quadrant A | 3,717,727 | 613,735 |
| Events in quadrant B | 3,023,170 | 672,179 |
| Events in quadrant C | 3,631,998 | 545,904 |
| Events in quadrant D | 3,945,408 | 536,989 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15489 | 2 |
| B | 0 | 13519 | 2 |
| C | 0 | 15481 | 2 |
| D | 0 | 16098 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6253 | 178 | 2.846634% |
| B | 6253 | 82 | 1.311371% |
| C | 6253 | 490 | 7.836239% |
| D | 6252 | 169 | 2.703135% |

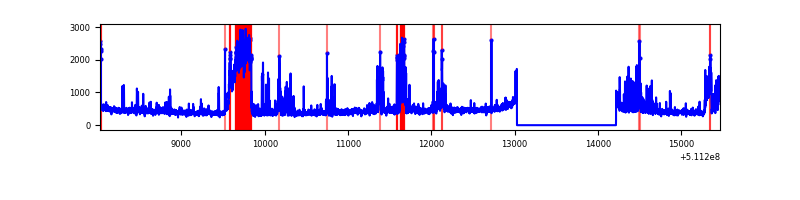

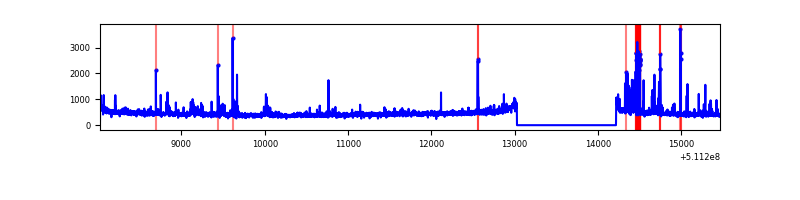

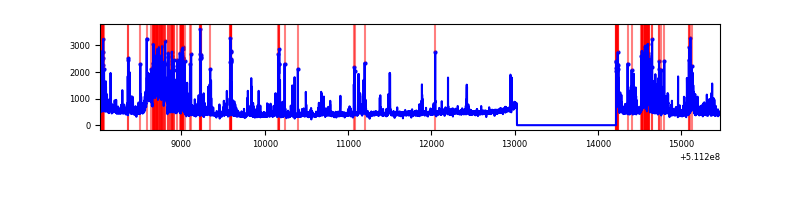

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7443 | 6254 | 131 | 131 | 1.76% | 2.09% |  |
| B | 7443 | 6254 | 43 | 43 | 0.58% | 0.69% |  |
| C | 7443 | 6253 | 191 | 191 | 2.57% | 3.05% |  |
| D | 7442 | 6252 | 173 | 173 | 2.32% | 2.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 474408 | 2845.01 | 673 | 658 | 166.5 |
| A | 13 | 248 | 173681 | 1039.05 | 673 | 658 | 166.5 |
| A | 7 | 64 | 100894 | 601.95 | 673 | 658 | 166.5 |
| B | 5 | 236 | 177680 | 1237.57 | 674 | 651 | 143.0 |
| B | 4 | 21 | 51678 | 356.72 | 674 | 651 | 143.0 |
| B | 4 | 206 | 31561 | 216.09 | 674 | 651 | 143.0 |
| C | 15 | 215 | 327998 | 1904.96 | 626 | 618 | 171.9 |
| C | 15 | 199 | 180583 | 1047.18 | 626 | 618 | 171.9 |
| C | 15 | 230 | 95335 | 551.14 | 626 | 618 | 171.9 |
| D | 6 | 239 | 570890 | 3142.94 | 635 | 605 | 181.4 |
| D | 2 | 31 | 253984 | 1396.41 | 635 | 605 | 181.4 |
| D | 7 | 96 | 170650 | 937.15 | 635 | 605 | 181.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

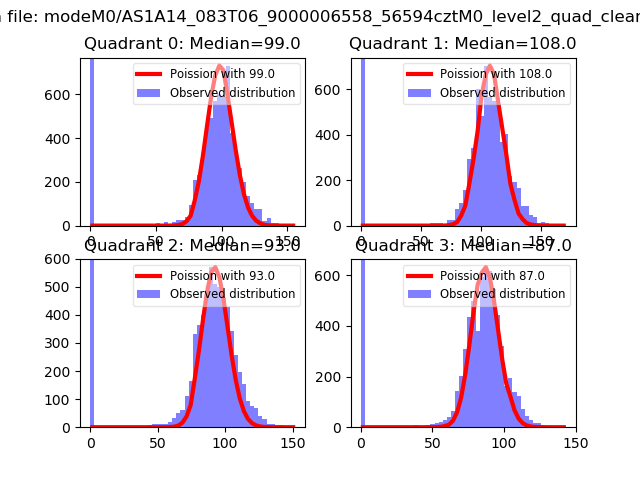

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

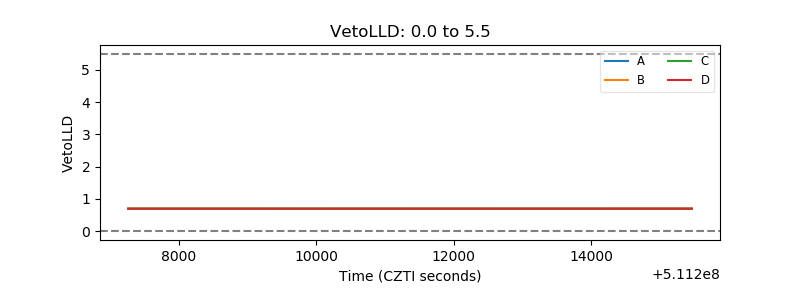

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

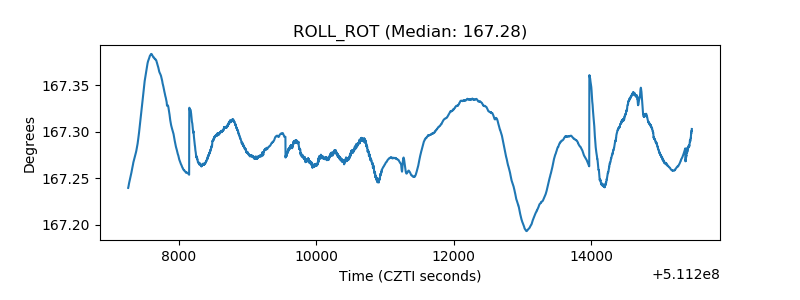

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

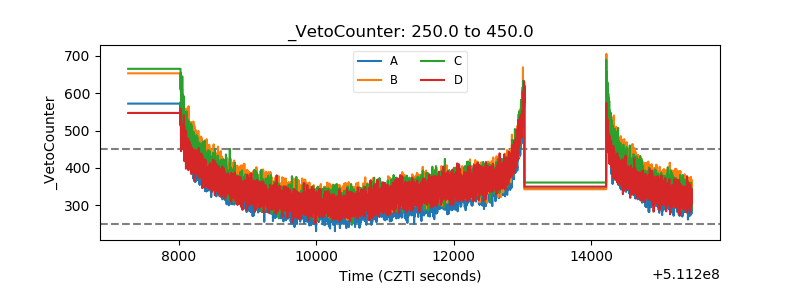

| Veto Counter |  |
