| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56610cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56610cztM0_level2_quad_clean.evt |
| Size (bytes) | 402,598,080 | 96,243,840 |
| Size | 383.9 MB | 91.8 MB |
| Events in quadrant A | 3,073,552 | 640,265 |
| Events in quadrant B | 3,007,956 | 692,919 |
| Events in quadrant C | 3,458,631 | 588,489 |
| Events in quadrant D | 4,851,303 | 534,556 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14160 | 2 |
| B | 0 | 13737 | 2 |
| C | 0 | 15425 | 3 |
| D | 0 | 18989 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6571 | 56 | 0.852229% |
| B | 6571 | 51 | 0.776138% |
| C | 6570 | 192 | 2.922374% |
| D | 6570 | 417 | 6.347032% |

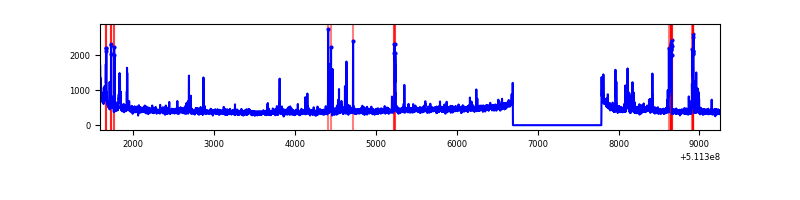

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7666 | 6572 | 33 | 33 | 0.43% | 0.50% |  |
| B | 7666 | 6572 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7665 | 6571 | 145 | 145 | 1.89% | 2.21% |  |
| D | 7665 | 6571 | 412 | 412 | 5.38% | 6.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 167805 | 956.22 | 702 | 685 | 174.8 |
| A | 4 | 95 | 124358 | 707.63 | 702 | 685 | 174.8 |
| A | 4 | 3 | 12849 | 69.6 | 702 | 685 | 174.8 |
| B | 0 | 171 | 51344 | 341.54 | 700 | 674 | 148.4 |
| B | 10 | 247 | 45164 | 299.88 | 700 | 674 | 148.4 |
| B | 5 | 185 | 26612 | 174.83 | 700 | 674 | 148.4 |
| C | 15 | 219 | 394325 | 2145.07 | 669 | 663 | 183.5 |
| C | 15 | 230 | 151404 | 821.39 | 669 | 663 | 183.5 |
| C | 1 | 16 | 81856 | 442.42 | 669 | 663 | 183.5 |
| D | 7 | 96 | 619776 | 3335.92 | 651 | 621 | 185.6 |
| D | 5 | 113 | 383185 | 2061.2 | 651 | 621 | 185.6 |
| D | 10 | 199 | 361337 | 1943.49 | 651 | 621 | 185.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

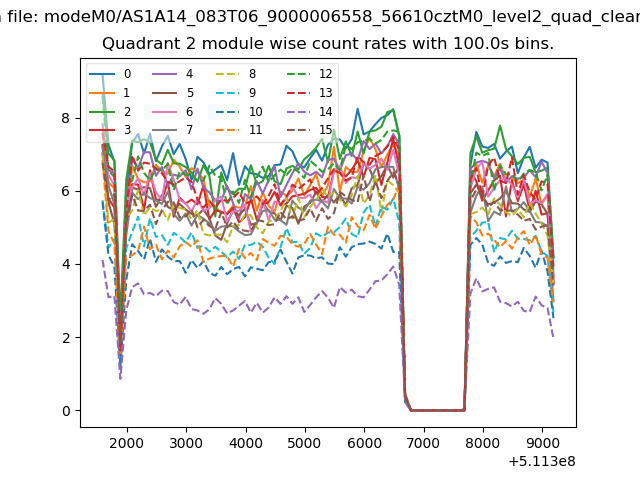

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

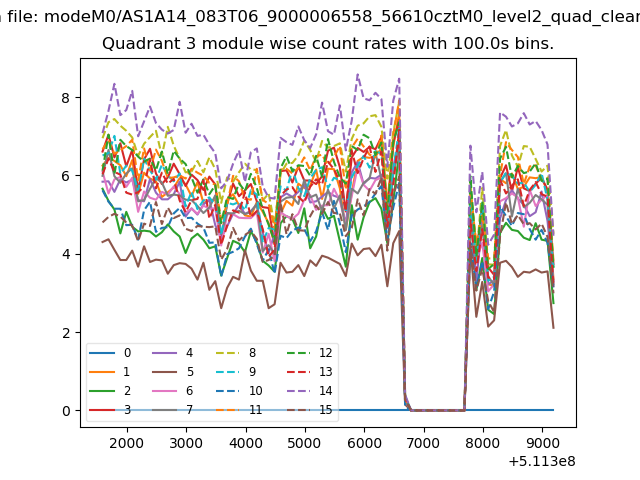

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

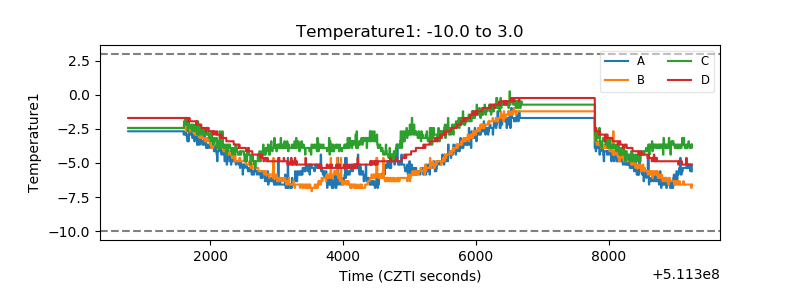

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

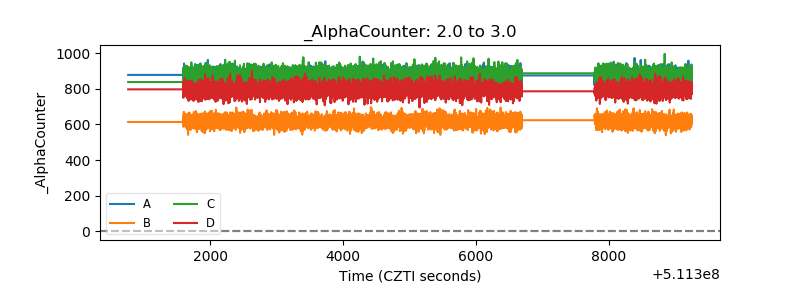

| Alpha Counter |  |

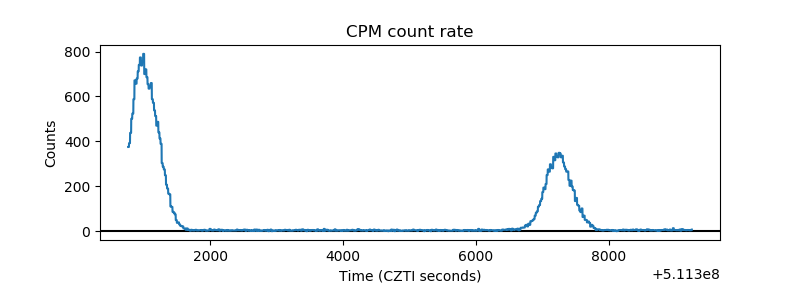

| _CPM_Rate |  |

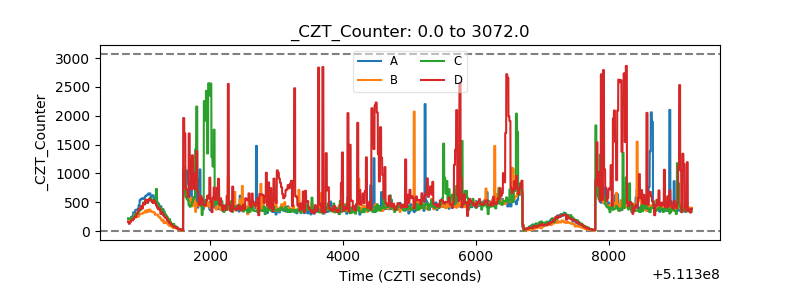

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

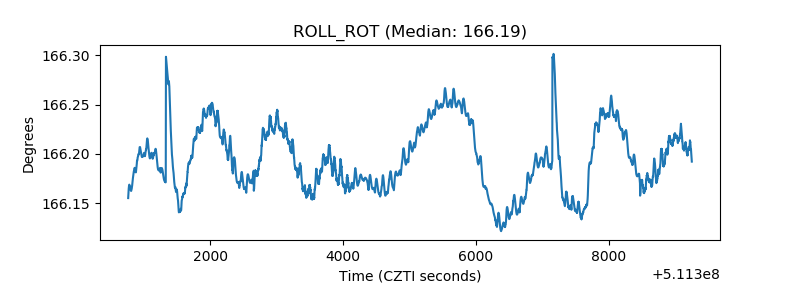

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
