| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56611cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56611cztM0_level2_quad_clean.evt |
| Size (bytes) | 418,481,280 | 98,631,360 |
| Size | 399.1 MB | 94.1 MB |
| Events in quadrant A | 3,549,697 | 650,844 |
| Events in quadrant B | 3,437,277 | 693,953 |
| Events in quadrant C | 3,173,383 | 614,032 |
| Events in quadrant D | 4,797,478 | 551,009 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15762 | 2 |
| B | 0 | 15299 | 2 |
| C | 0 | 14842 | 2 |
| D | 0 | 19246 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6850 | 96 | 1.401460% |
| B | 6850 | 182 | 2.656934% |
| C | 6849 | 84 | 1.226456% |
| D | 6849 | 377 | 5.504453% |

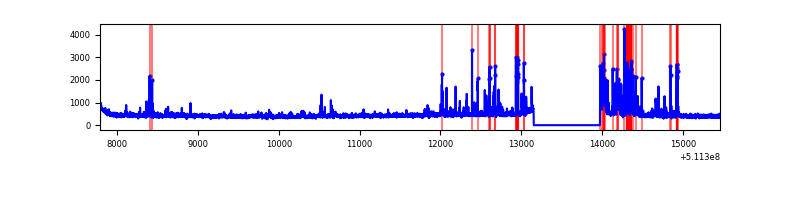

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7670 | 6851 | 57 | 57 | 0.74% | 0.83% |  |
| B | 7670 | 6851 | 74 | 74 | 0.96% | 1.08% |  |
| C | 7669 | 6850 | 46 | 46 | 0.60% | 0.67% |  |
| D | 7669 | 6850 | 355 | 355 | 4.63% | 5.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 95 | 312784 | 1747.11 | 723 | 706 | 178.6 |
| A | 4 | 249 | 244554 | 1365.14 | 723 | 706 | 178.6 |
| A | 0 | 8 | 149480 | 832.88 | 723 | 706 | 178.6 |
| B | 0 | 231 | 264471 | 1710.78 | 719 | 692 | 154.2 |
| B | 10 | 247 | 100368 | 646.46 | 719 | 692 | 154.2 |
| B | 5 | 185 | 67483 | 433.18 | 719 | 692 | 154.2 |
| C | 12 | 252 | 95885 | 498.47 | 699 | 691 | 191.0 |
| C | 6 | 223 | 80939 | 420.21 | 699 | 691 | 191.0 |
| C | 12 | 249 | 69427 | 359.93 | 699 | 691 | 191.0 |
| D | 2 | 249 | 423761 | 2176.26 | 680 | 648 | 194.4 |
| D | 10 | 199 | 413387 | 2122.9 | 680 | 648 | 194.4 |
| D | 5 | 113 | 306000 | 1570.56 | 680 | 648 | 194.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

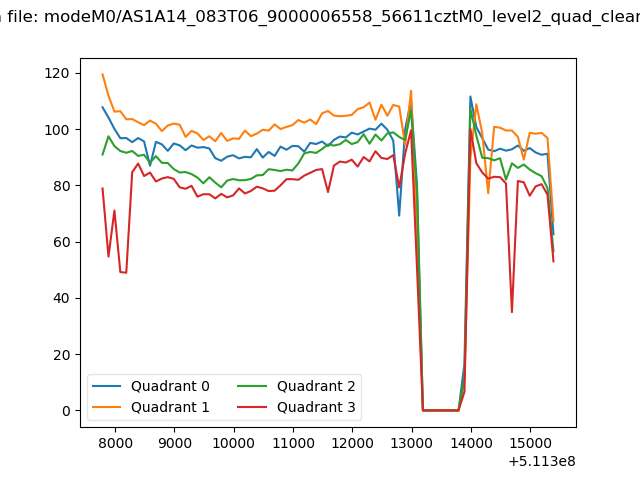

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

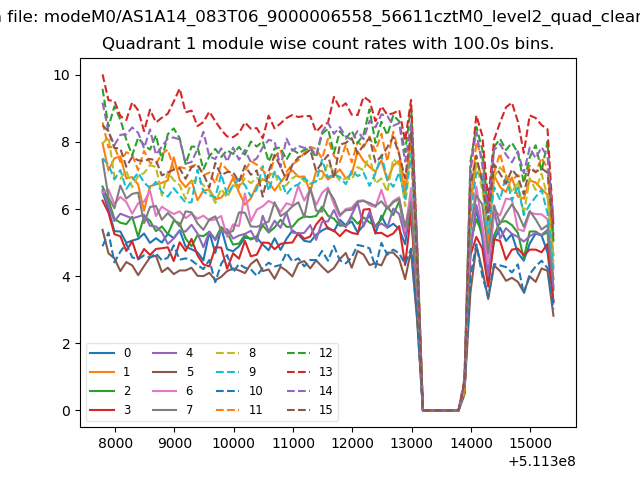

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

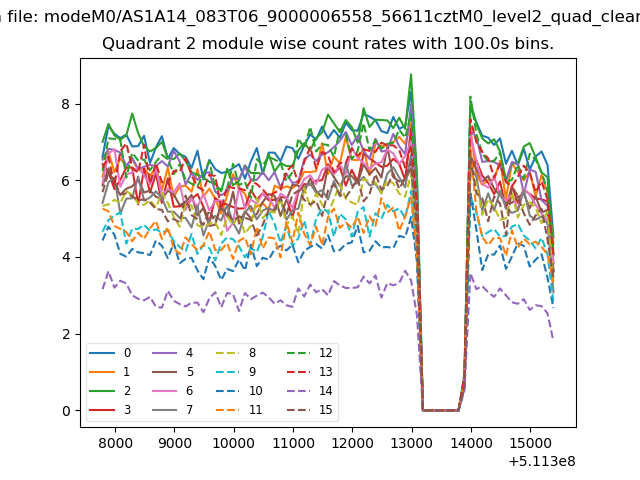

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

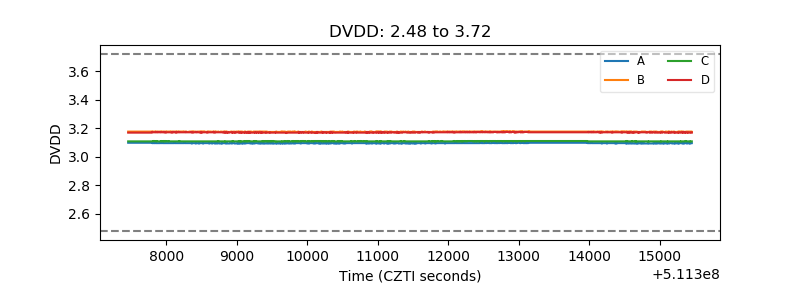

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

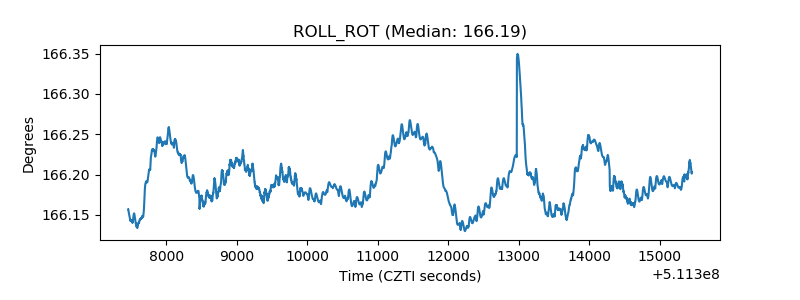

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

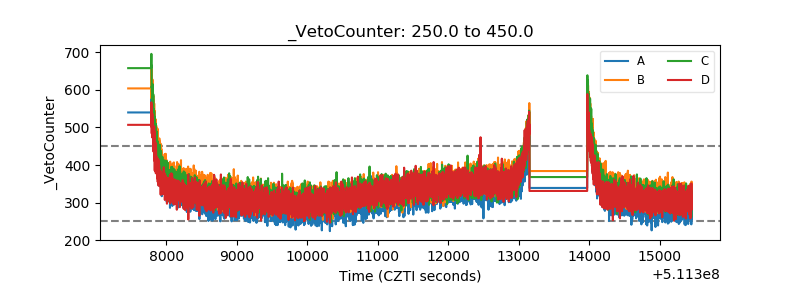

| Veto Counter |  |
