| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56621cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56621cztM0_level2_quad_clean.evt |
| Size (bytes) | 419,483,520 | 92,782,080 |
| Size | 400.1 MB | 88.5 MB |
| Events in quadrant A | 3,567,783 | 608,657 |
| Events in quadrant B | 3,441,555 | 650,456 |
| Events in quadrant C | 4,252,170 | 574,829 |
| Events in quadrant D | 3,773,955 | 532,811 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15142 | 1 |
| B | 0 | 14599 | 1 |
| C | 0 | 17135 | 1 |
| D | 0 | 15844 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6334 | 146 | 2.305021% |
| B | 6333 | 139 | 2.194852% |
| C | 6333 | 108 | 1.705353% |
| D | 6333 | 232 | 3.663351% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

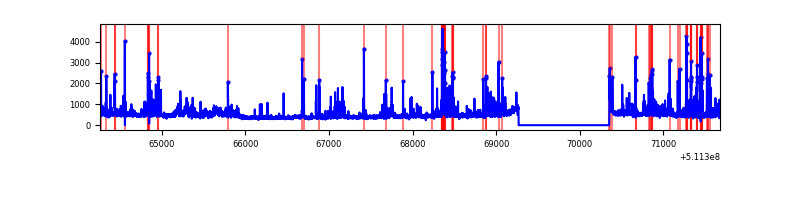

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7419 | 6335 | 81 | 81 | 1.09% | 1.28% |  |
| B | 7418 | 6334 | 67 | 67 | 0.90% | 1.06% |  |
| C | 7418 | 6334 | 65 | 65 | 0.88% | 1.03% |  |
| D | 7418 | 6334 | 198 | 198 | 2.67% | 3.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 506065 | 3008.57 | 679 | 661 | 168.0 |
| A | 4 | 249 | 177597 | 1053.27 | 679 | 661 | 168.0 |
| A | 13 | 248 | 74920 | 442.05 | 679 | 661 | 168.0 |
| B | 0 | 231 | 148860 | 1044.14 | 673 | 651 | 141.9 |
| B | 10 | 247 | 124207 | 870.46 | 673 | 651 | 141.9 |
| B | 0 | 213 | 121482 | 851.26 | 673 | 651 | 141.9 |
| C | 1 | 16 | 1044093 | 5844.72 | 649 | 639 | 178.5 |
| C | 9 | 38 | 219438 | 1225.56 | 649 | 639 | 178.5 |
| C | 6 | 223 | 125734 | 700.7 | 649 | 639 | 178.5 |
| D | 2 | 249 | 834496 | 4506.44 | 649 | 618 | 185.0 |
| D | 6 | 239 | 121975 | 655.84 | 649 | 618 | 185.0 |
| D | 7 | 96 | 90089 | 483.52 | 649 | 618 | 185.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

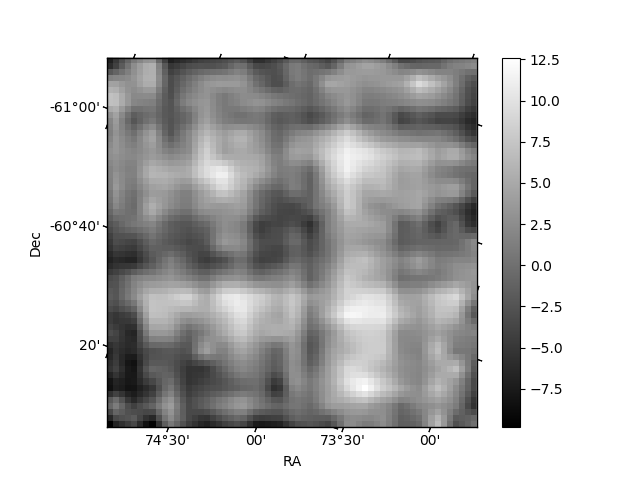

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

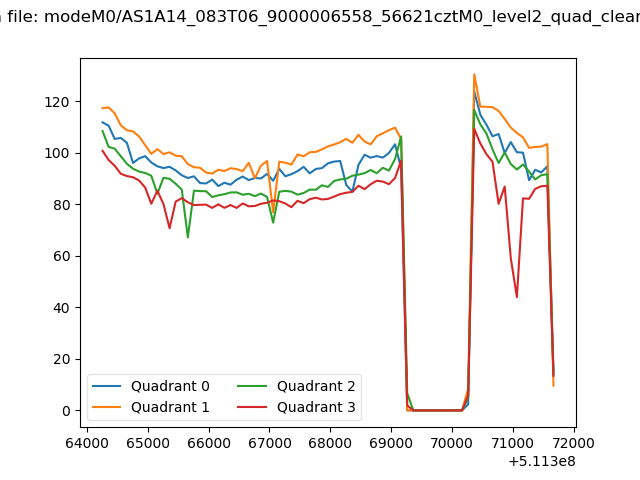

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

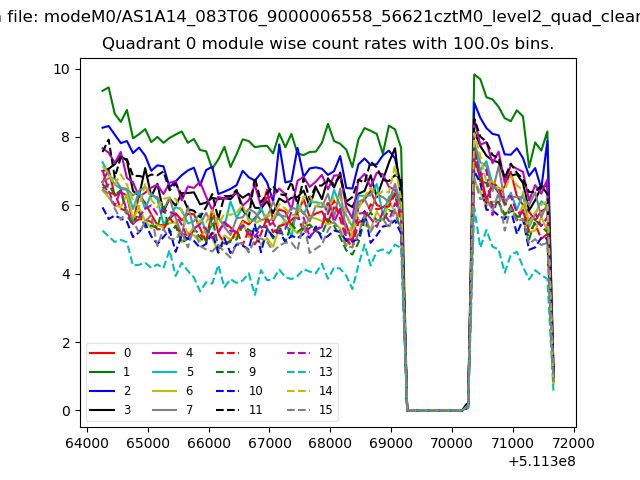

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

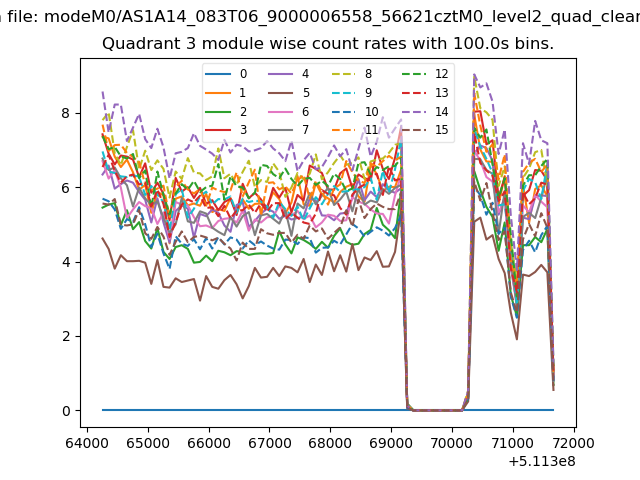

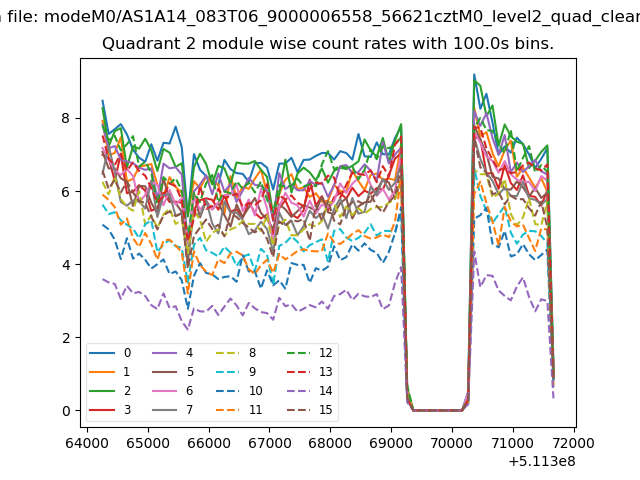

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

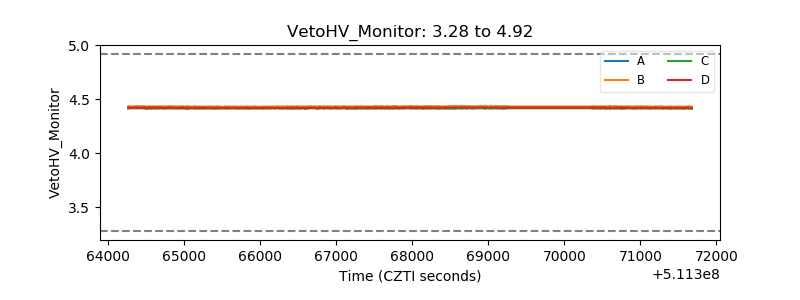

| Veto HV Monitor |  |
| Veto LLD |  |

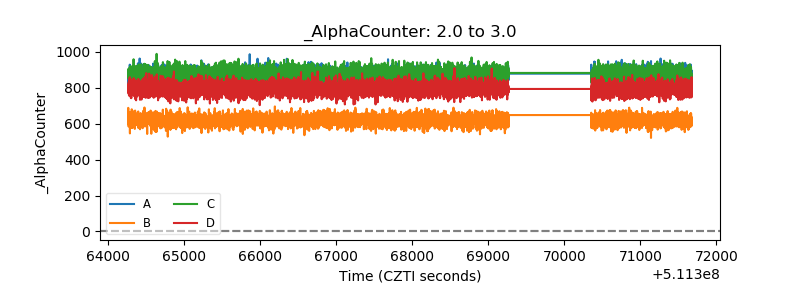

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
