| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56633cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56633cztM0_level2_quad_clean.evt |
| Size (bytes) | 405,175,680 | 95,063,040 |
| Size | 386.4 MB | 90.7 MB |
| Events in quadrant A | 4,027,884 | 612,435 |
| Events in quadrant B | 3,113,569 | 664,541 |
| Events in quadrant C | 3,212,075 | 592,908 |
| Events in quadrant D | 4,132,255 | 548,807 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 133 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16595 | 62 |
| B | 0 | 13940 | 55 |
| C | 0 | 14414 | 37 |
| D | 0 | 16675 | 42 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6590 | 211 | 3.201821% |
| B | 6583 | 74 | 1.124108% |
| C | 6587 | 75 | 1.138606% |
| D | 6588 | 198 | 3.005464% |

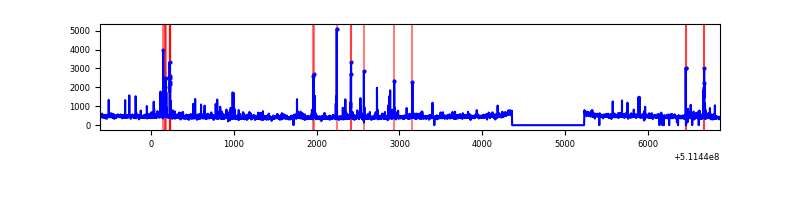

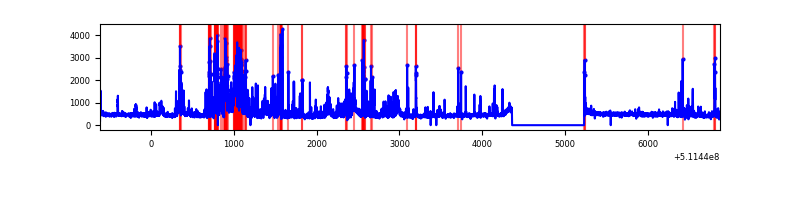

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7481 | 6605 | 145 | 145 | 1.94% | 2.20% |  |
| B | 7482 | 6602 | 21 | 21 | 0.28% | 0.32% |  |
| C | 7482 | 6607 | 39 | 39 | 0.52% | 0.59% |  |
| D | 7482 | 6606 | 178 | 178 | 2.38% | 2.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 663805 | 3836.47 | 702 | 684 | 172.8 |
| A | 4 | 249 | 193295 | 1114.35 | 702 | 684 | 172.8 |
| A | 4 | 95 | 182831 | 1053.81 | 702 | 684 | 172.8 |
| B | 4 | 21 | 81305 | 538.2 | 694 | 669 | 149.8 |
| B | 10 | 247 | 69851 | 461.75 | 694 | 669 | 149.8 |
| B | 8 | 128 | 56498 | 372.63 | 694 | 669 | 149.8 |
| C | 12 | 252 | 205725 | 1102.05 | 678 | 670 | 186.1 |
| C | 1 | 16 | 175359 | 938.85 | 678 | 670 | 186.1 |
| C | 13 | 3 | 77427 | 412.52 | 678 | 670 | 186.1 |
| D | 2 | 31 | 435473 | 2286.04 | 676 | 648 | 190.2 |
| D | 2 | 249 | 269286 | 1412.33 | 676 | 648 | 190.2 |
| D | 7 | 96 | 175719 | 920.41 | 676 | 648 | 190.2 |

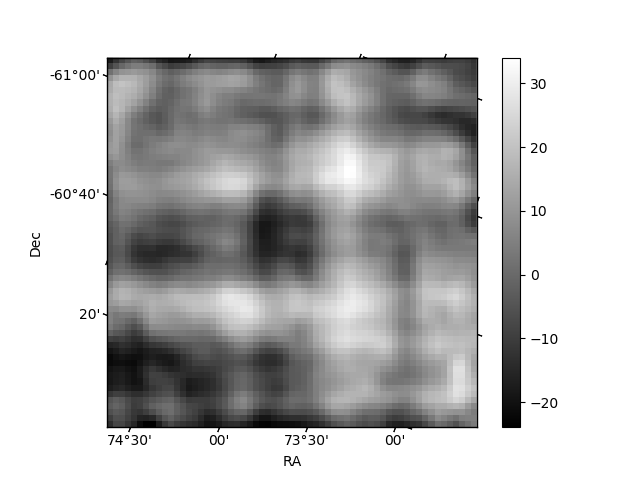

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

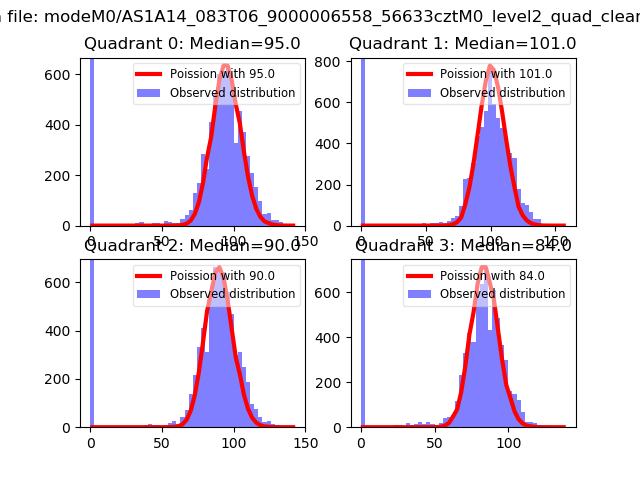

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

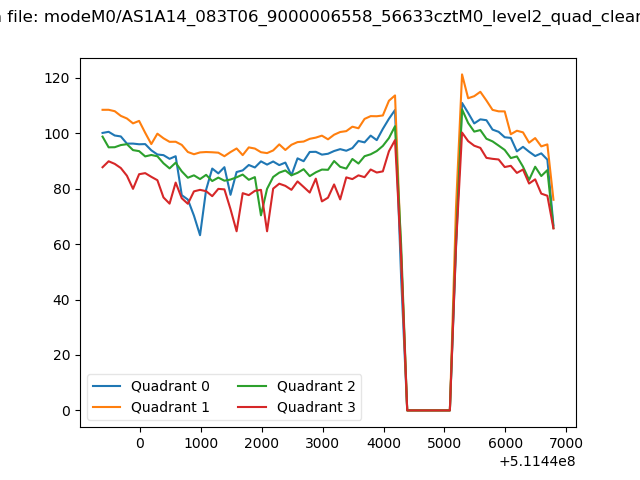

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

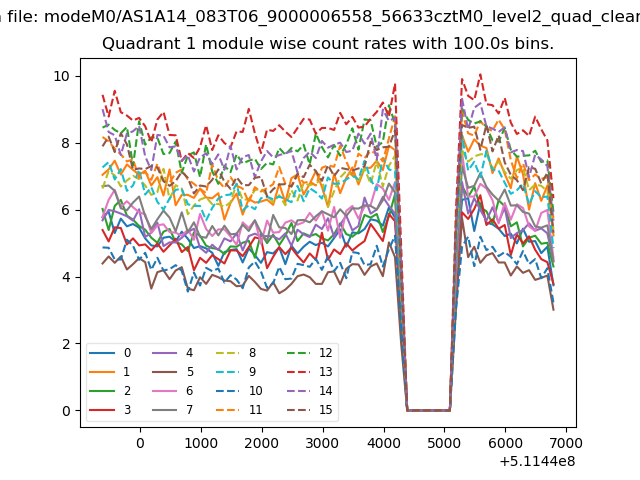

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

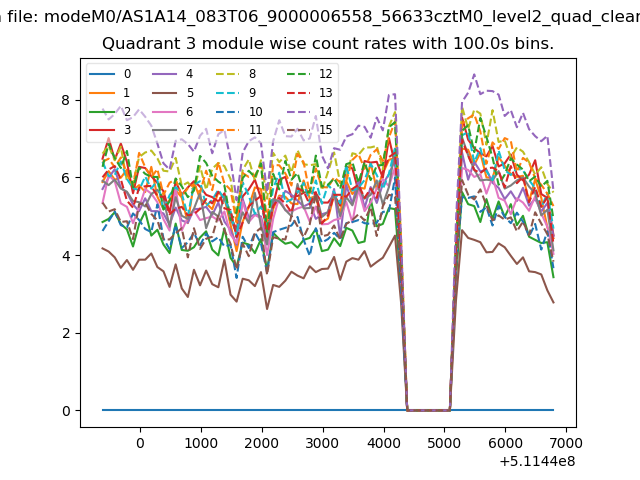

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

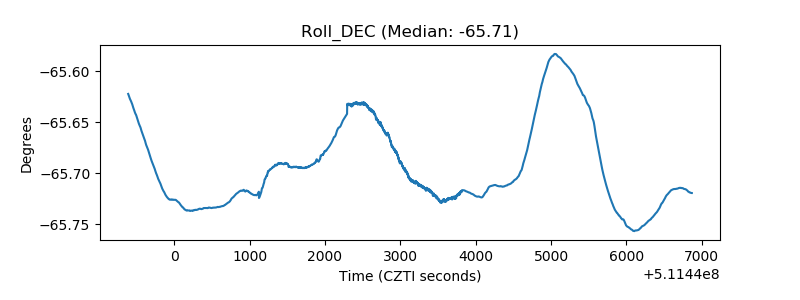

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
