| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56639cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56639cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,920,000 | 93,827,520 |
| Size | 411.0 MB | 89.5 MB |
| Events in quadrant A | 5,247,365 | 573,293 |
| Events in quadrant B | 3,369,551 | 676,552 |
| Events in quadrant C | 3,542,594 | 591,887 |
| Events in quadrant D | 3,288,803 | 548,875 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20199 | 2 |
| B | 0 | 14486 | 2 |
| C | 0 | 15173 | 2 |
| D | 0 | 14597 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6466 | 752 | 11.630065% |
| B | 6465 | 102 | 1.577726% |
| C | 6465 | 74 | 1.144625% |
| D | 6465 | 100 | 1.546790% |

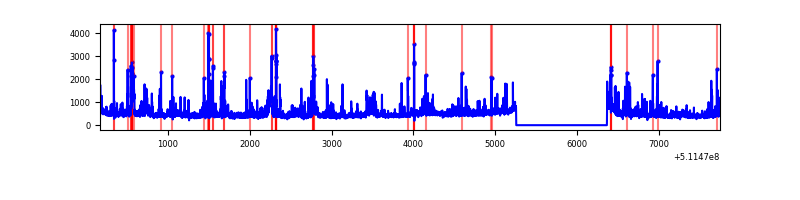

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 6467 | 553 | 553 | 7.30% | 8.55% |  |
| B | 7575 | 6466 | 41 | 41 | 0.54% | 0.63% |  |
| C | 7575 | 6466 | 57 | 57 | 0.75% | 0.88% |  |
| D | 7575 | 6466 | 79 | 79 | 1.04% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 2116370 | 12856.2 | 660 | 642 | 164.6 |
| A | 0 | 8 | 212737 | 1288.79 | 660 | 642 | 164.6 |
| A | 6 | 179 | 205671 | 1245.86 | 660 | 642 | 164.6 |
| B | 4 | 21 | 235717 | 1601.94 | 685 | 660 | 146.7 |
| B | 7 | 0 | 69407 | 468.52 | 685 | 660 | 146.7 |
| B | 10 | 247 | 59192 | 398.9 | 685 | 660 | 146.7 |
| C | 13 | 3 | 649755 | 3564.98 | 659 | 651 | 182.1 |
| C | 1 | 16 | 134080 | 732.81 | 659 | 651 | 182.1 |
| C | 12 | 252 | 76428 | 416.18 | 659 | 651 | 182.1 |
| D | 7 | 96 | 250778 | 1369.73 | 649 | 621 | 182.6 |
| D | 6 | 239 | 158251 | 863.1 | 649 | 621 | 182.6 |
| D | 13 | 153 | 70145 | 380.68 | 649 | 621 | 182.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

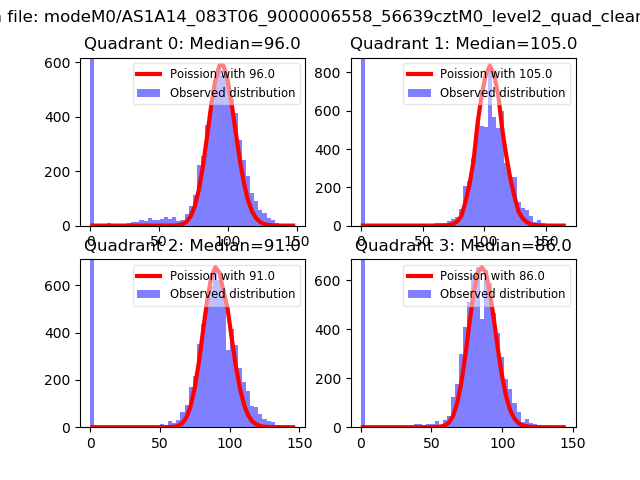

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

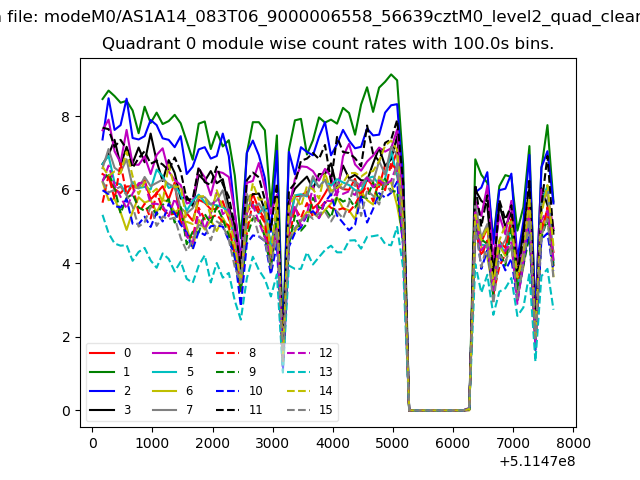

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

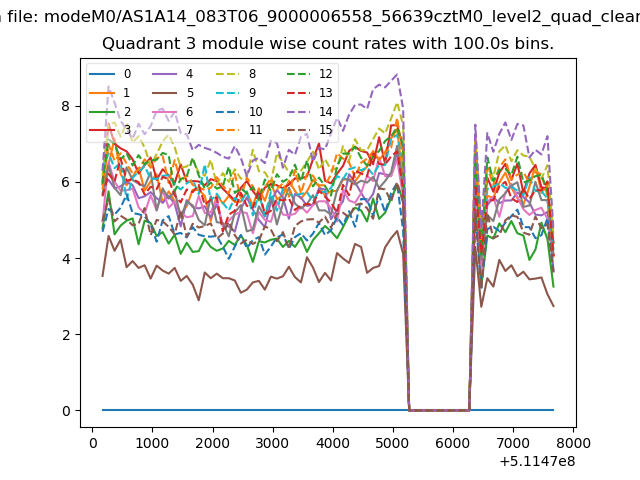

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

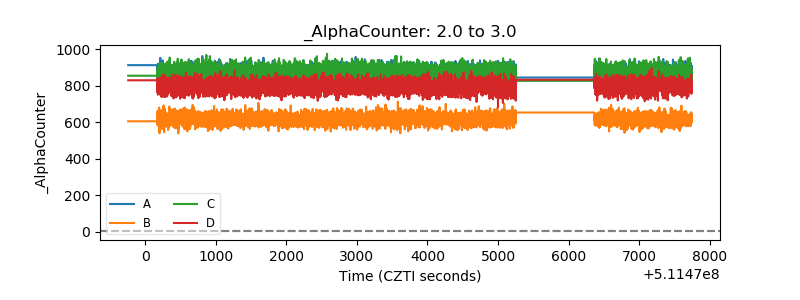

| Alpha Counter |  |

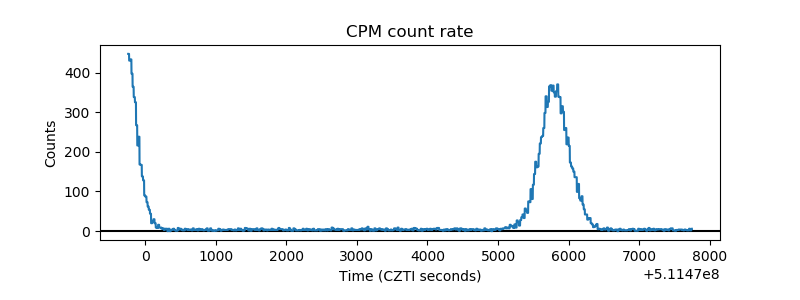

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

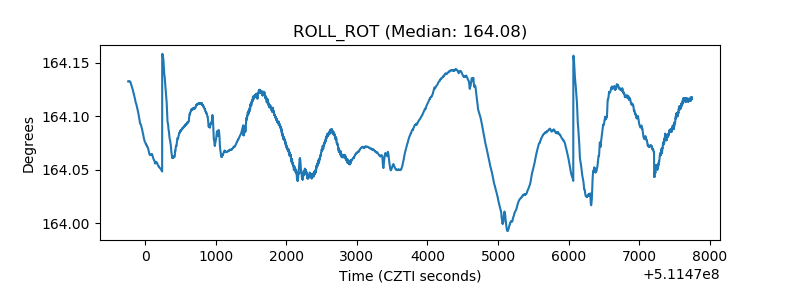

| _ROLL_ROT |  |

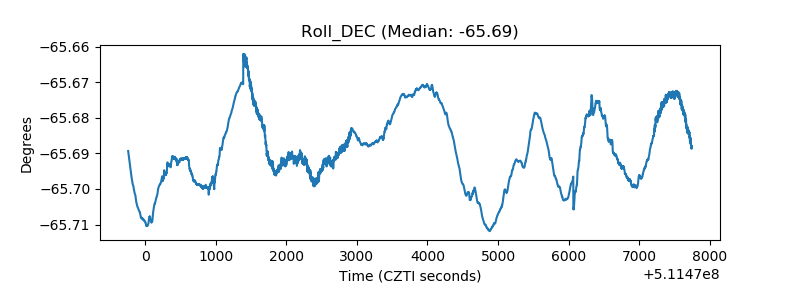

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
