| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56640cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56640cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,341,760 | 96,989,760 |
| Size | 418.0 MB | 92.5 MB |
| Events in quadrant A | 4,764,035 | 609,171 |
| Events in quadrant B | 3,425,968 | 692,194 |
| Events in quadrant C | 3,638,399 | 603,268 |
| Events in quadrant D | 3,868,611 | 558,711 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19018 | 1 |
| B | 0 | 14955 | 1 |
| C | 0 | 15776 | 1 |
| D | 0 | 16514 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6799 | 508 | 7.471687% |
| B | 6799 | 116 | 1.706133% |
| C | 6799 | 114 | 1.676717% |
| D | 6799 | 194 | 2.853361% |

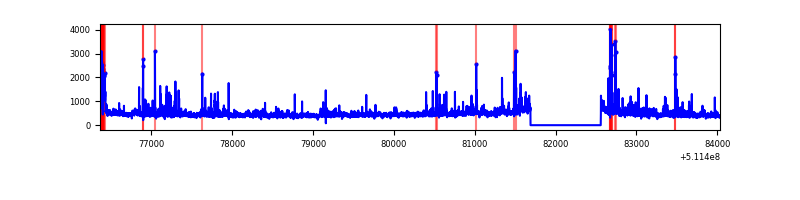

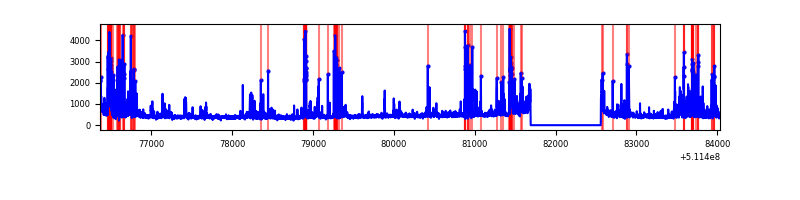

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7669 | 6800 | 343 | 343 | 4.47% | 5.04% |  |
| B | 7669 | 6800 | 39 | 39 | 0.51% | 0.57% |  |
| C | 7669 | 6800 | 54 | 54 | 0.70% | 0.79% |  |
| D | 7669 | 6800 | 156 | 156 | 2.03% | 2.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1714003 | 9972.48 | 693 | 674 | 171.8 |
| A | 4 | 95 | 225175 | 1306.71 | 693 | 674 | 171.8 |
| A | 6 | 179 | 46983 | 269.54 | 693 | 674 | 171.8 |
| B | 4 | 21 | 143365 | 947.62 | 709 | 682 | 150.6 |
| B | 10 | 247 | 130554 | 862.54 | 709 | 682 | 150.6 |
| B | 4 | 206 | 94705 | 624.45 | 709 | 682 | 150.6 |
| C | 13 | 3 | 667071 | 3559.89 | 685 | 677 | 187.2 |
| C | 1 | 16 | 80203 | 424.83 | 685 | 677 | 187.2 |
| C | 15 | 230 | 44539 | 234.31 | 685 | 677 | 187.2 |
| D | 3 | 12 | 279262 | 1476.76 | 672 | 642 | 188.7 |
| D | 7 | 96 | 211048 | 1115.21 | 672 | 642 | 188.7 |
| D | 2 | 249 | 202174 | 1068.18 | 672 | 642 | 188.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

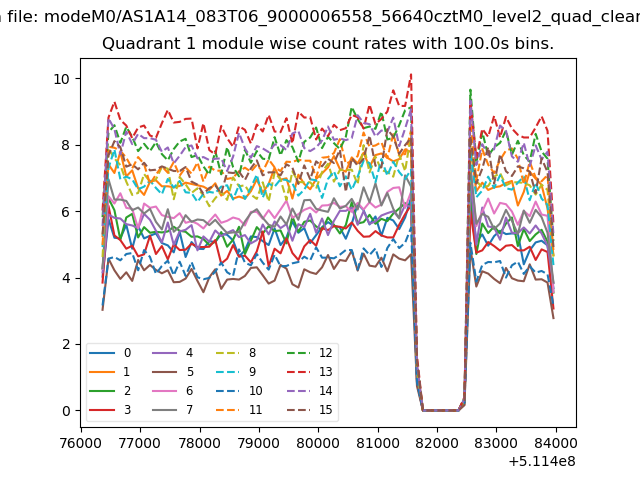

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

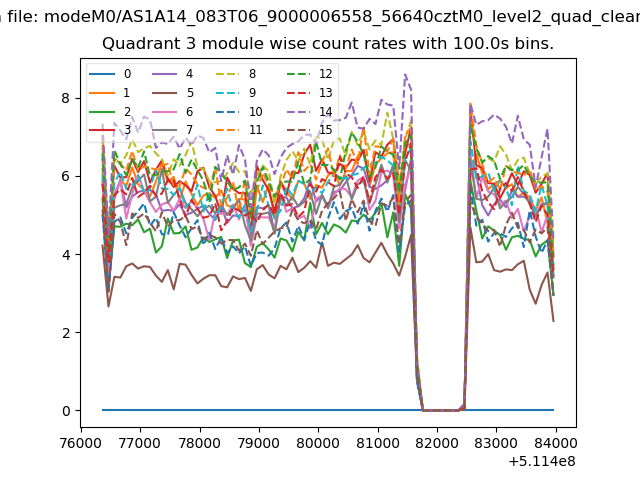

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

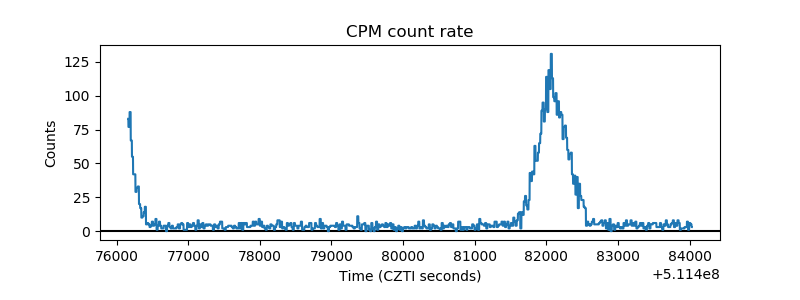

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

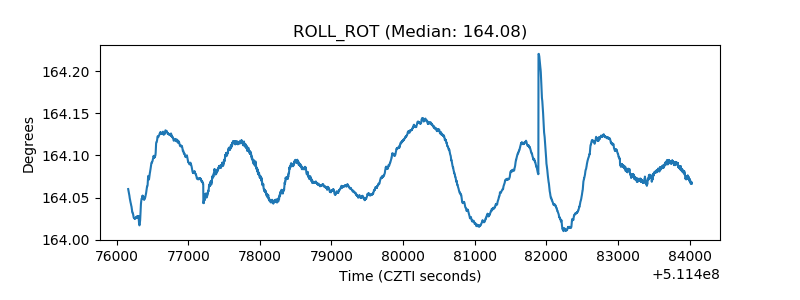

| _ROLL_ROT |  |
| _Roll_DEC |  |

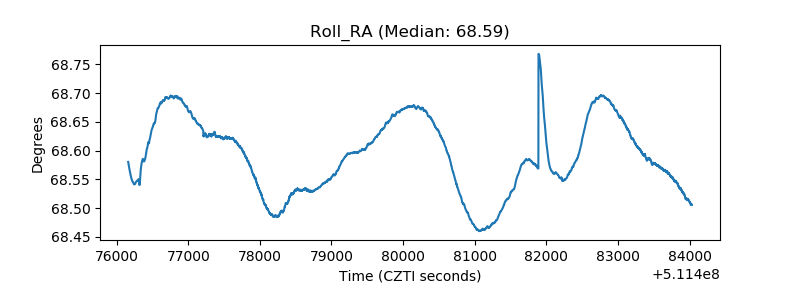

| _Roll_RA |  |
| Veto Counter |  |
