| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56646cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56646cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,136,589,120 | 262,350,720 |
| Size | 1.1 GB | 250.2 MB |
| Events in quadrant A | 8,944,349 | 1,708,930 |
| Events in quadrant B | 10,680,429 | 1,813,960 |
| Events in quadrant C | 9,905,719 | 1,626,179 |
| Events in quadrant D | 11,093,514 | 1,506,105 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 378 | 0 |
| B | 0 | 378 | 0 |
| C | 0 | 378 | 0 |
| D | 0 | 378 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40712 | 2 |
| B | 0 | 44911 | 2 |
| C | 0 | 42729 | 3 |
| D | 0 | 45997 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18697 | 412 | 2.203562% |
| B | 18698 | 704 | 3.765109% |
| C | 18697 | 417 | 2.230304% |
| D | 18697 | 687 | 3.674386% |

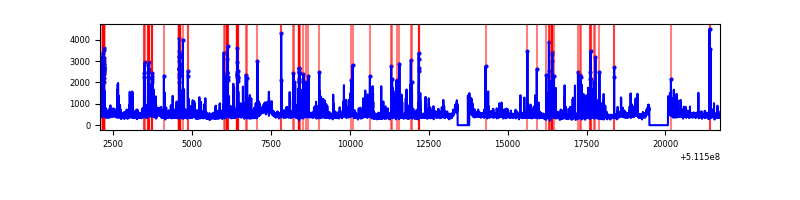

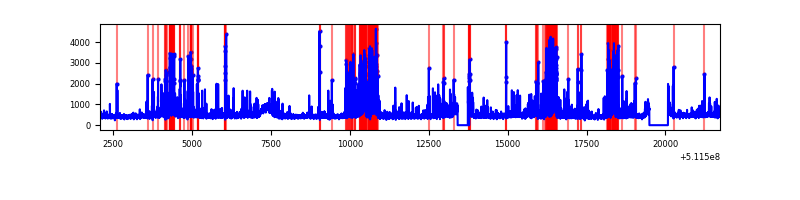

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19642 | 18700 | 143 | 143 | 0.73% | 0.76% |  |
| B | 19643 | 18699 | 232 | 232 | 1.18% | 1.24% |  |
| C | 19642 | 18700 | 162 | 162 | 0.82% | 0.87% |  |
| D | 19642 | 18698 | 441 | 441 | 2.25% | 2.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 382415 | 771.81 | 2005 | 1952 | 493.0 |
| A | 0 | 8 | 350913 | 707.9 | 2005 | 1952 | 493.0 |
| A | 13 | 248 | 132994 | 265.83 | 2005 | 1952 | 493.0 |
| B | 5 | 185 | 934010 | 2222.2 | 1980 | 1905 | 419.5 |
| B | 4 | 206 | 773591 | 1839.75 | 1980 | 1905 | 419.5 |
| B | 4 | 21 | 498291 | 1183.42 | 1980 | 1905 | 419.5 |
| C | 12 | 252 | 920913 | 1738.25 | 1953 | 1935 | 528.7 |
| C | 1 | 16 | 298242 | 560.46 | 1953 | 1935 | 528.7 |
| C | 13 | 3 | 293452 | 551.4 | 1953 | 1935 | 528.7 |
| D | 2 | 249 | 1948846 | 3632.48 | 1931 | 1846 | 536.0 |
| D | 7 | 96 | 225342 | 416.97 | 1931 | 1846 | 536.0 |
| D | 2 | 31 | 192508 | 355.71 | 1931 | 1846 | 536.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

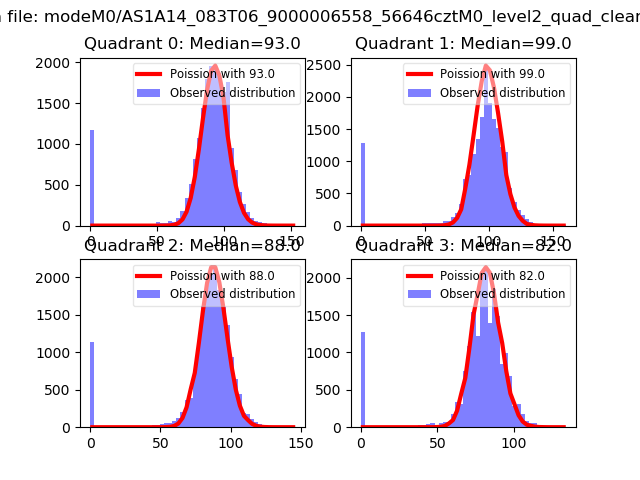

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

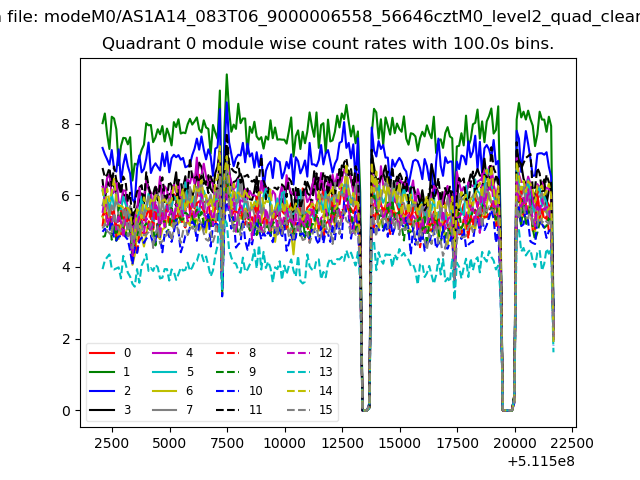

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

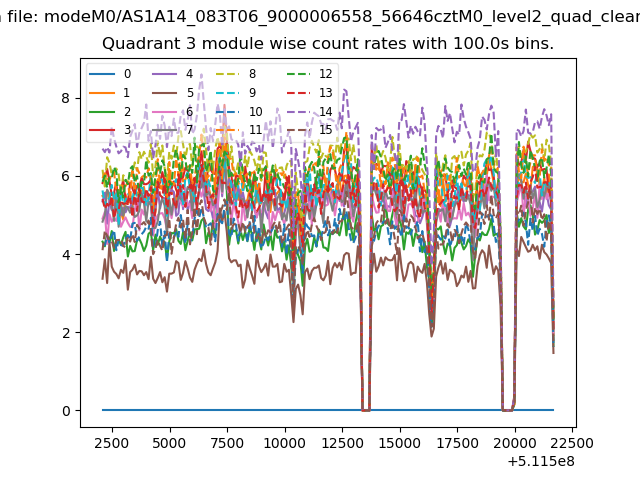

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

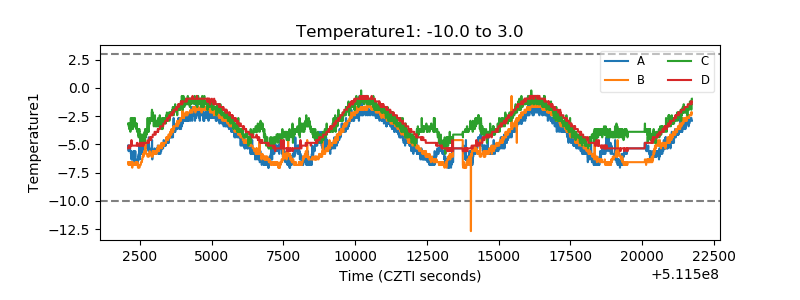

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

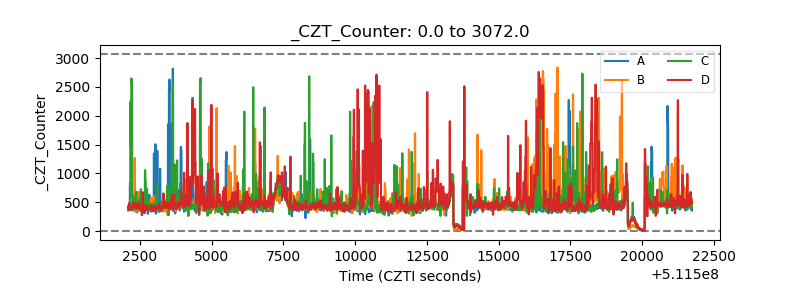

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

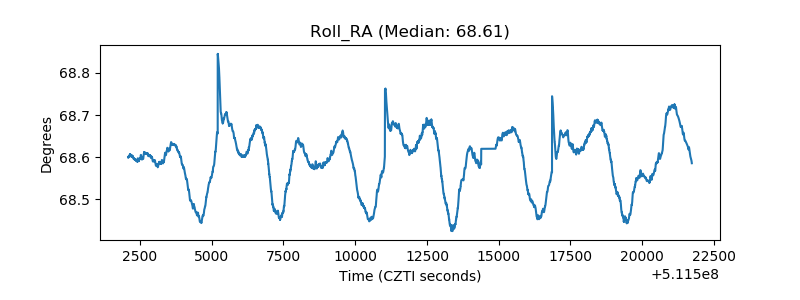

| _Roll_RA |  |
| Veto Counter |  |
