| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56649cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56649cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,203,840 | 82,990,080 |
| Size | 447.5 MB | 79.1 MB |
| Events in quadrant A | 3,792,796 | 535,334 |
| Events in quadrant B | 4,785,975 | 565,283 |
| Events in quadrant C | 3,215,134 | 535,939 |
| Events in quadrant D | 5,112,729 | 461,151 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15641 | 1 |
| B | 0 | 18320 | 1 |
| C | 0 | 13871 | 1 |
| D | 0 | 19418 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5942 | 402 | 6.765399% |
| B | 5943 | 562 | 9.456503% |
| C | 5943 | 91 | 1.531213% |
| D | 5943 | 644 | 10.836278% |

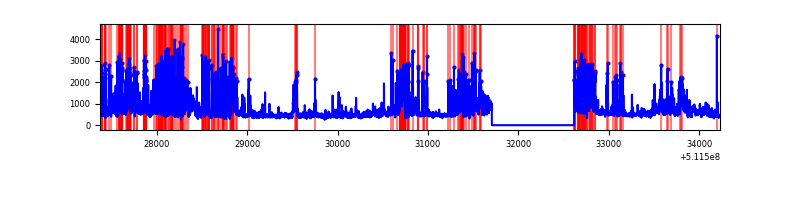

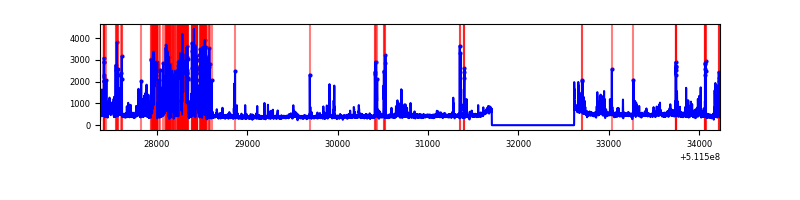

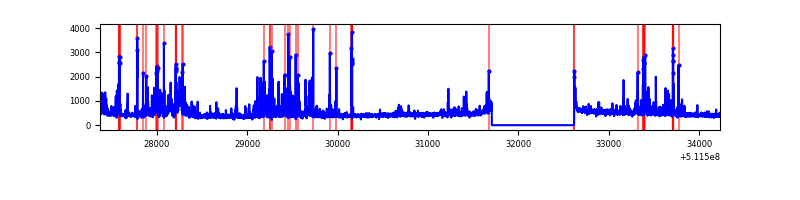

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

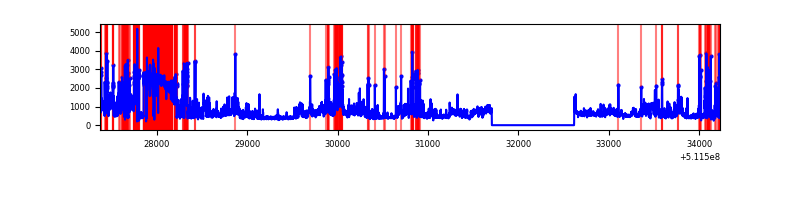

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6852 | 5942 | 302 | 302 | 4.41% | 5.08% |  |
| B | 6853 | 5943 | 333 | 333 | 4.86% | 5.60% |  |
| C | 6853 | 5944 | 54 | 54 | 0.79% | 0.91% |  |
| D | 6852 | 5942 | 534 | 534 | 7.79% | 8.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 840337 | 5496.45 | 618 | 600 | 152.8 |
| A | 0 | 8 | 333473 | 2178.8 | 618 | 600 | 152.8 |
| A | 12 | 3 | 62412 | 404.59 | 618 | 600 | 152.8 |
| B | 5 | 185 | 1709001 | 13064.88 | 604 | 582 | 130.8 |
| B | 4 | 21 | 348422 | 2660.05 | 604 | 582 | 130.8 |
| B | 4 | 206 | 170920 | 1302.63 | 604 | 582 | 130.8 |
| C | 12 | 252 | 381972 | 2283.92 | 608 | 603 | 167.0 |
| C | 13 | 3 | 159532 | 951.79 | 608 | 603 | 167.0 |
| C | 14 | 96 | 154635 | 922.46 | 608 | 603 | 167.0 |
| D | 2 | 62 | 2024160 | 12228.75 | 580 | 554 | 165.5 |
| D | 2 | 249 | 398938 | 2407.45 | 580 | 554 | 165.5 |
| D | 12 | 3 | 97813 | 587.74 | 580 | 554 | 165.5 |

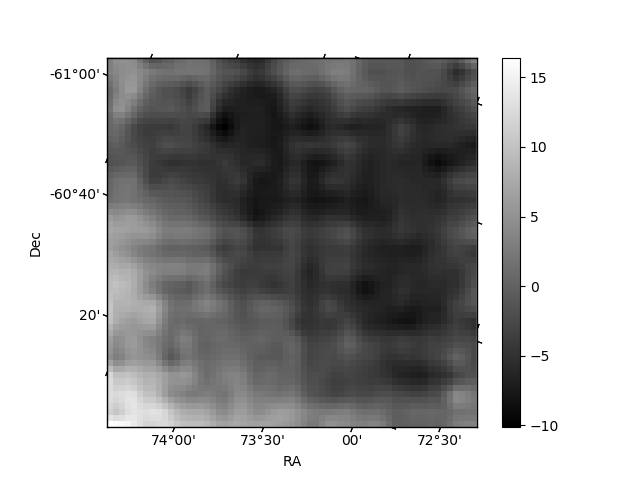

Histogram calculated using DETX and DETY for each event in the final _common_clean file

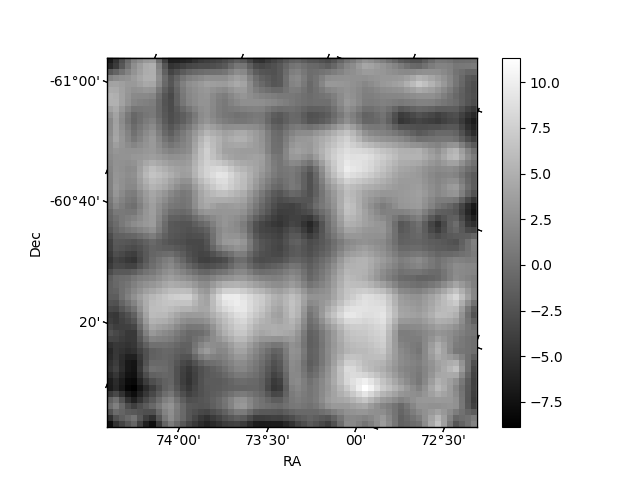

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

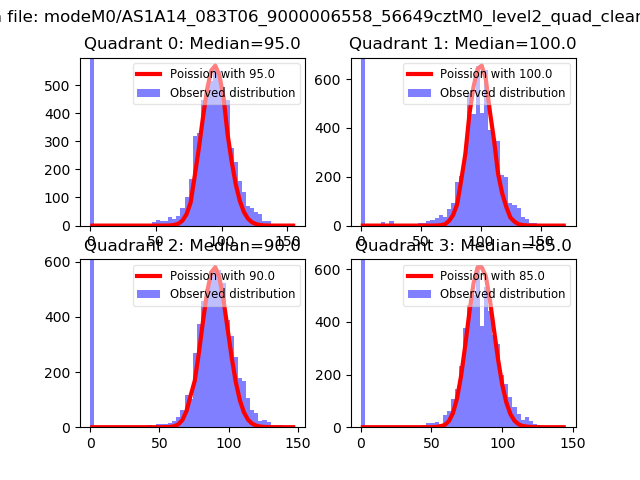

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

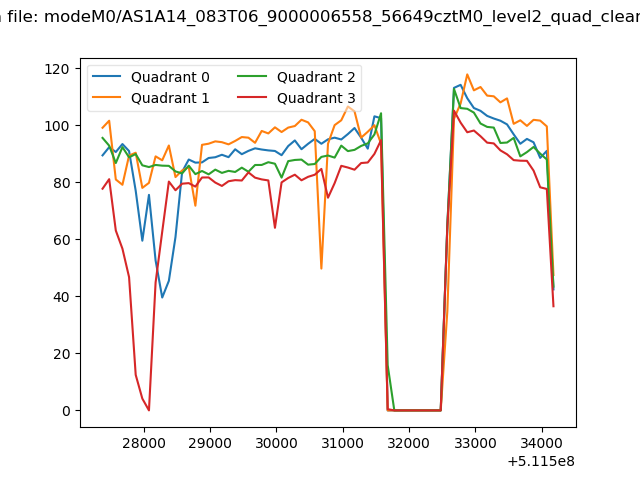

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

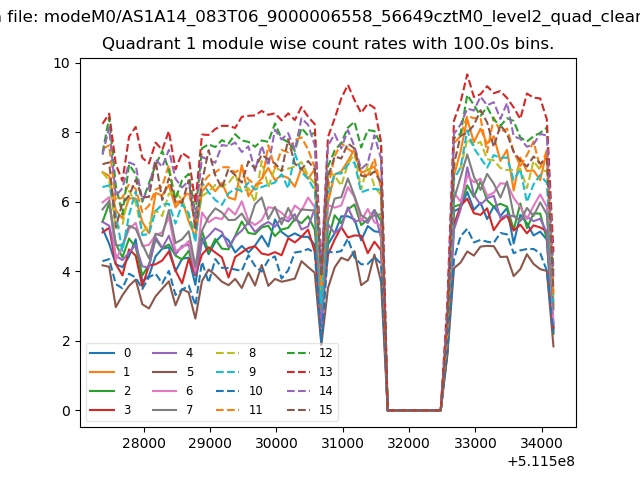

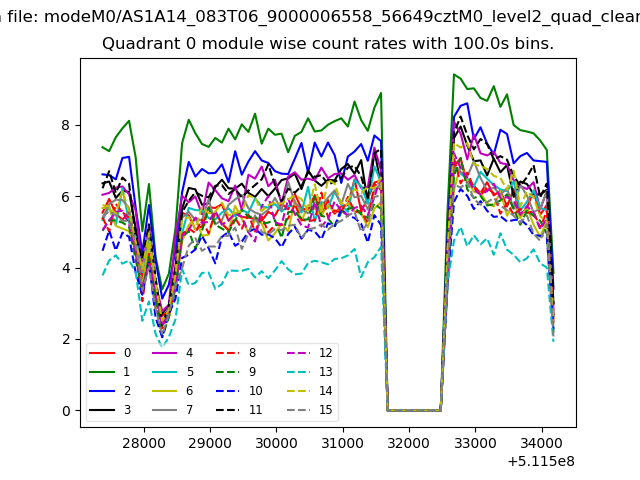

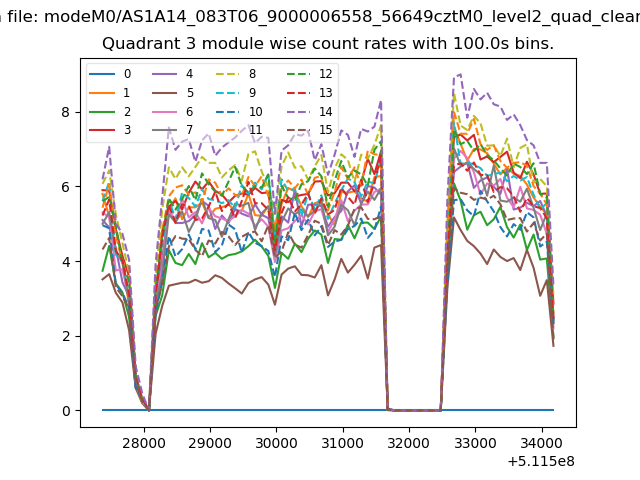

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

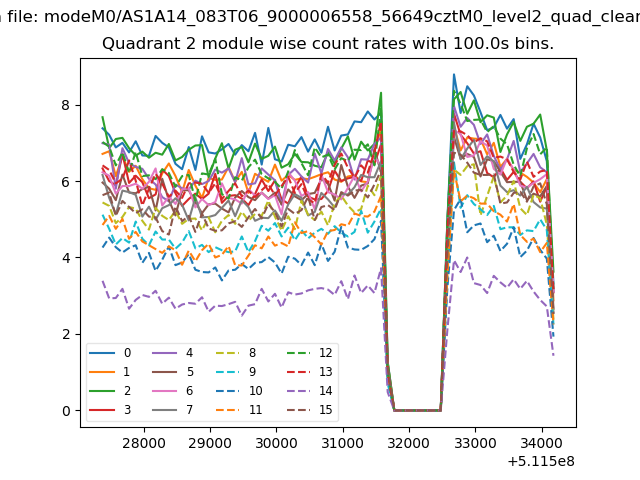

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

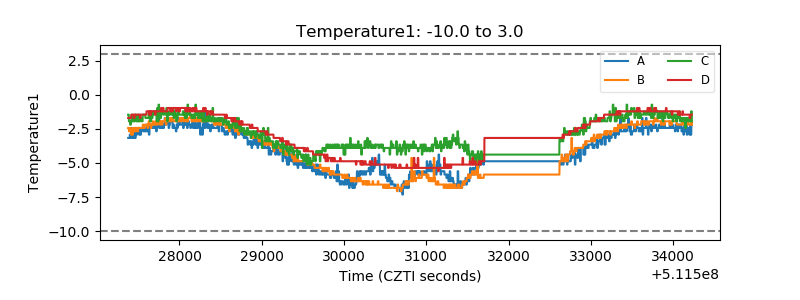

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

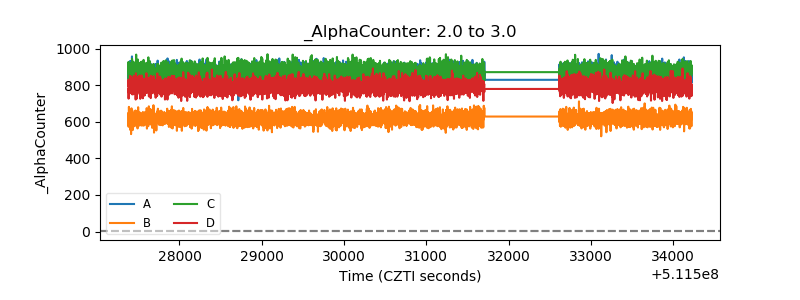

| Alpha Counter |  |

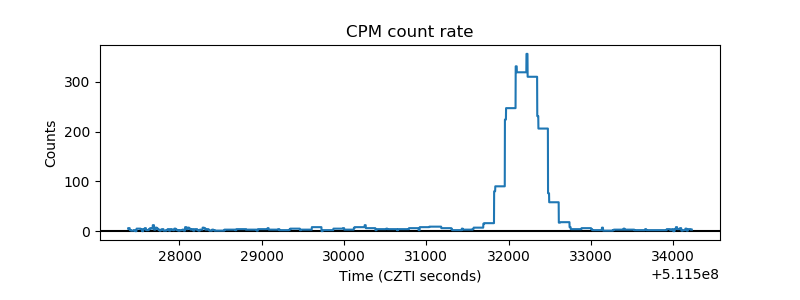

| _CPM_Rate |  |

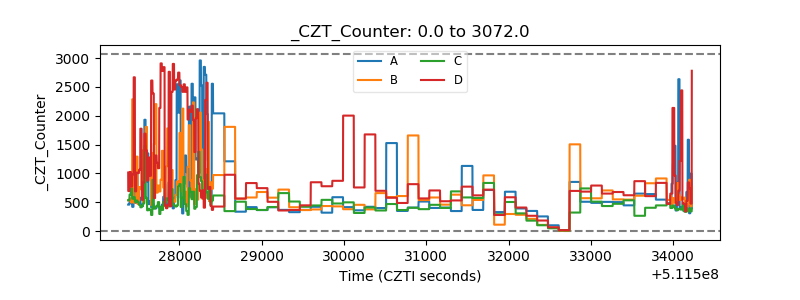

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

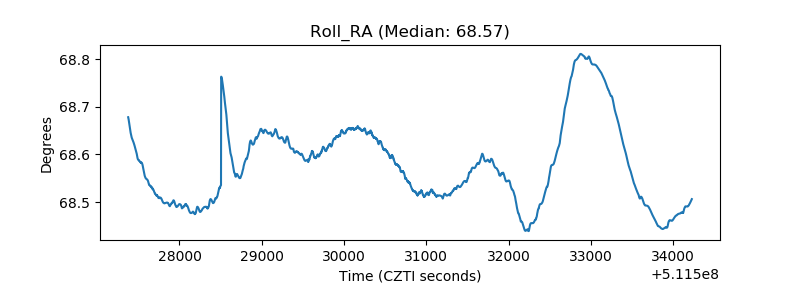

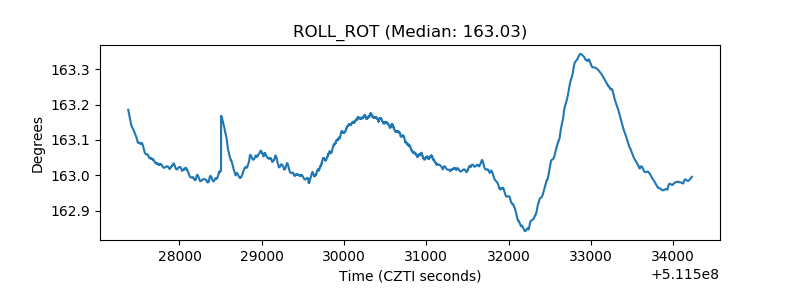

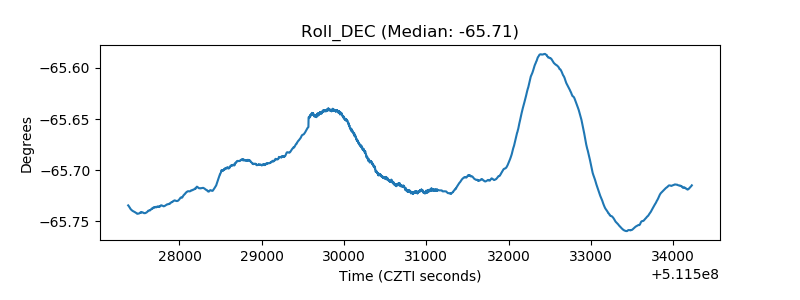

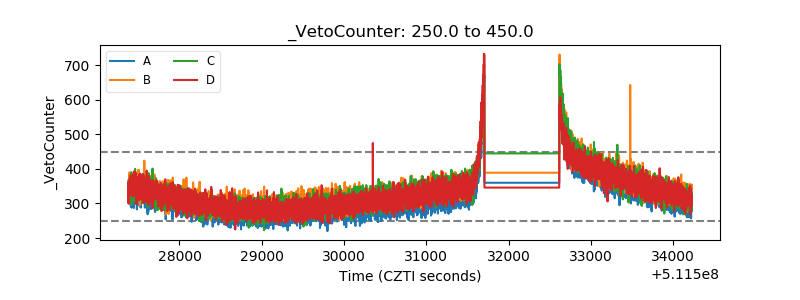

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
