| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56654cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56654cztM0_level2_quad_clean.evt |
| Size (bytes) | 401,316,480 | 94,129,920 |
| Size | 382.7 MB | 89.8 MB |
| Events in quadrant A | 3,152,881 | 620,360 |
| Events in quadrant B | 3,624,360 | 663,469 |
| Events in quadrant C | 3,508,311 | 575,076 |
| Events in quadrant D | 4,067,122 | 540,560 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14262 | 1 |
| B | 0 | 15241 | 1 |
| C | 0 | 14965 | 1 |
| D | 0 | 16612 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6459 | 69 | 1.068277% |
| B | 6459 | 166 | 2.570057% |
| C | 6458 | 153 | 2.369155% |
| D | 6458 | 193 | 2.988541% |

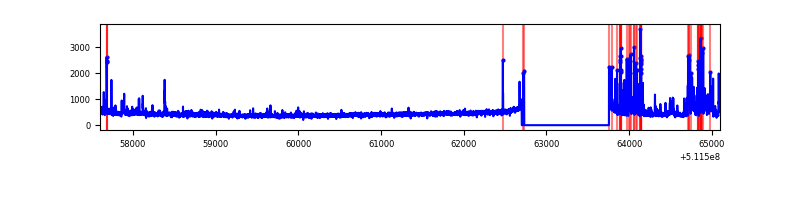

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7499 | 6461 | 49 | 49 | 0.65% | 0.76% |  |
| B | 7499 | 6461 | 109 | 109 | 1.45% | 1.69% |  |
| C | 7498 | 6460 | 146 | 146 | 1.95% | 2.26% |  |
| D | 7498 | 6460 | 208 | 208 | 2.77% | 3.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 218099 | 1291.95 | 682 | 665 | 168.3 |
| A | 6 | 179 | 80591 | 474.91 | 682 | 665 | 168.3 |
| A | 4 | 95 | 76398 | 449.99 | 682 | 665 | 168.3 |
| B | 4 | 21 | 430198 | 2991.56 | 676 | 653 | 143.6 |
| B | 5 | 185 | 119710 | 829.17 | 676 | 653 | 143.6 |
| B | 4 | 206 | 112676 | 780.18 | 676 | 653 | 143.6 |
| C | 15 | 230 | 462175 | 2575.11 | 649 | 642 | 179.2 |
| C | 1 | 16 | 212260 | 1180.72 | 649 | 642 | 179.2 |
| C | 15 | 208 | 84911 | 470.18 | 649 | 642 | 179.2 |
| D | 2 | 249 | 658092 | 3577.0 | 643 | 611 | 183.8 |
| D | 3 | 12 | 246245 | 1336.36 | 643 | 611 | 183.8 |
| D | 5 | 113 | 166917 | 904.78 | 643 | 611 | 183.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

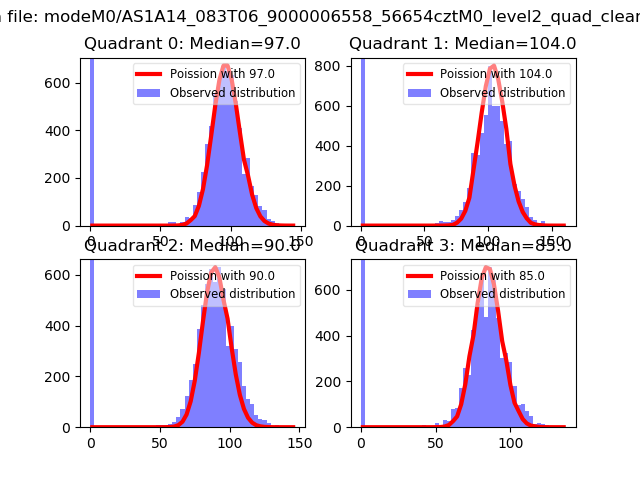

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

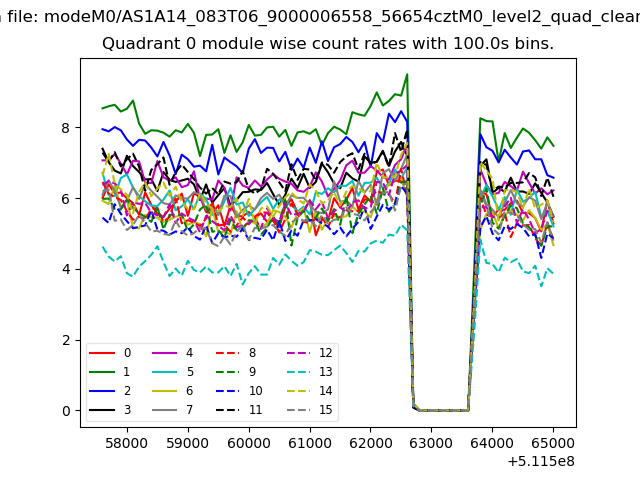

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

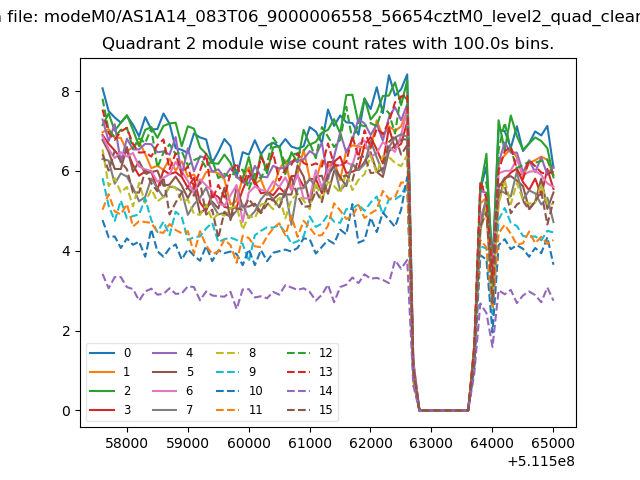

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

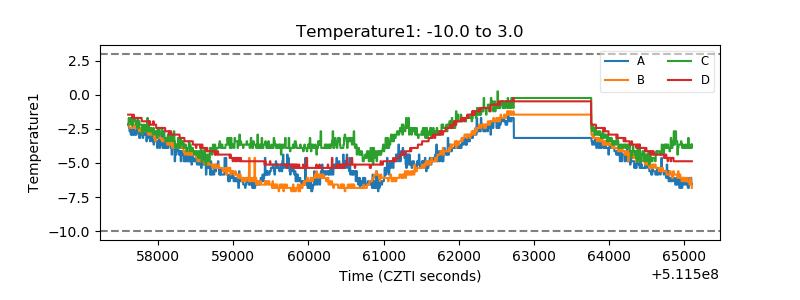

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

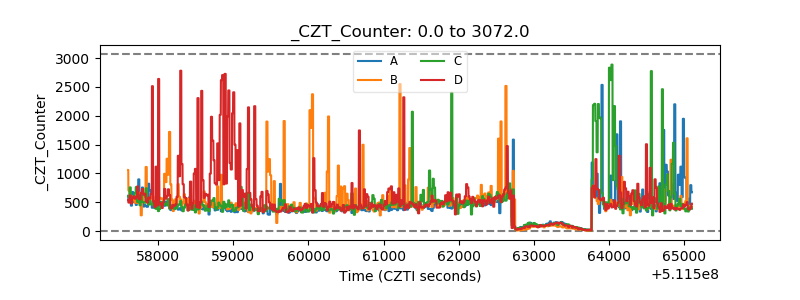

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

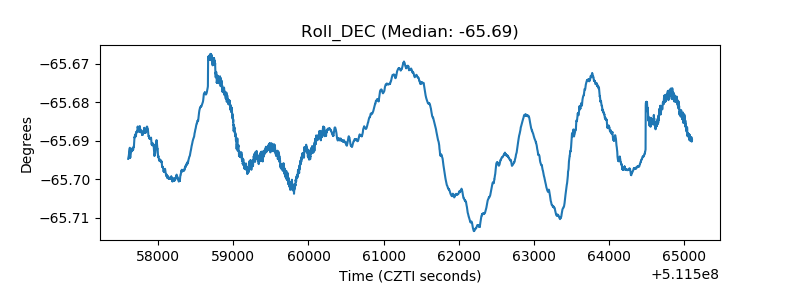

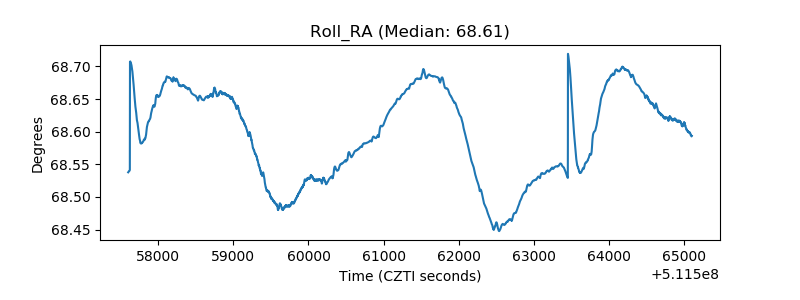

| _Roll_RA |  |
| Veto Counter |  |
