| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56655cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56655cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,359,360 | 99,080,640 |
| Size | 447.6 MB | 94.5 MB |
| Events in quadrant A | 3,911,508 | 654,262 |
| Events in quadrant B | 3,913,340 | 700,122 |
| Events in quadrant C | 3,953,023 | 608,557 |
| Events in quadrant D | 5,054,454 | 550,894 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16548 | 2 |
| B | 0 | 16562 | 2 |
| C | 0 | 16697 | 2 |
| D | 0 | 20004 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6971 | 124 | 1.778798% |
| B | 6971 | 155 | 2.223497% |
| C | 6971 | 180 | 2.582126% |
| D | 6971 | 472 | 6.770908% |

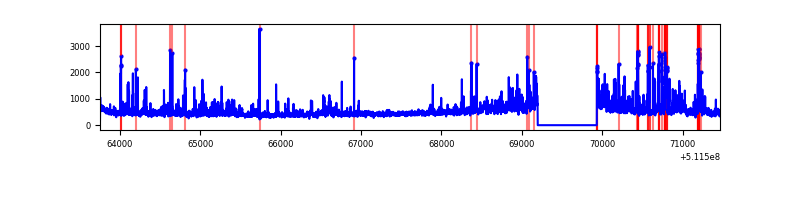

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7706 | 6972 | 87 | 87 | 1.13% | 1.25% |  |
| B | 7706 | 6972 | 66 | 66 | 0.86% | 0.95% |  |
| C | 7706 | 6972 | 164 | 164 | 2.13% | 2.35% |  |
| D | 7706 | 6972 | 423 | 423 | 5.49% | 6.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 609961 | 3401.78 | 726 | 709 | 179.1 |
| A | 6 | 179 | 149052 | 828.28 | 726 | 709 | 179.1 |
| A | 4 | 95 | 67974 | 375.58 | 726 | 709 | 179.1 |
| B | 4 | 206 | 407844 | 2638.29 | 726 | 701 | 154.3 |
| B | 4 | 21 | 195953 | 1265.24 | 726 | 701 | 154.3 |
| B | 7 | 0 | 92323 | 593.71 | 726 | 701 | 154.3 |
| C | 15 | 230 | 462232 | 2433.79 | 695 | 688 | 189.6 |
| C | 13 | 3 | 218667 | 1149.44 | 695 | 688 | 189.6 |
| C | 1 | 16 | 191915 | 1008.37 | 695 | 688 | 189.6 |
| D | 8 | 129 | 635132 | 3272.67 | 682 | 651 | 193.9 |
| D | 2 | 249 | 623350 | 3211.9 | 682 | 651 | 193.9 |
| D | 7 | 96 | 259499 | 1335.14 | 682 | 651 | 193.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

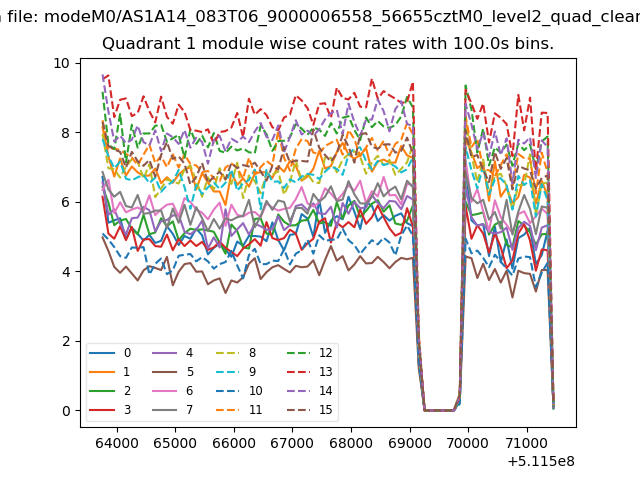

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

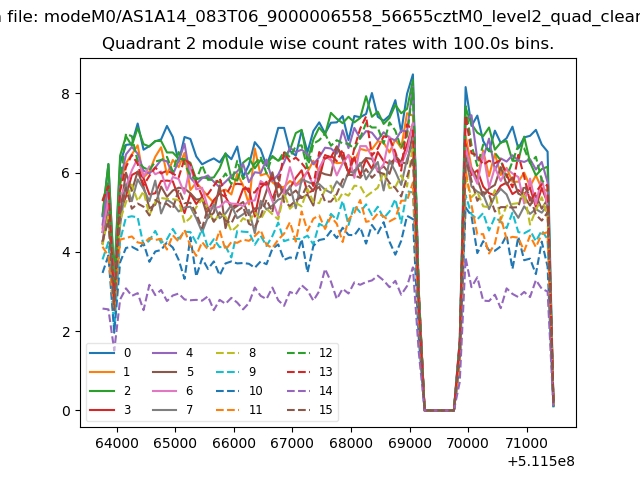

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

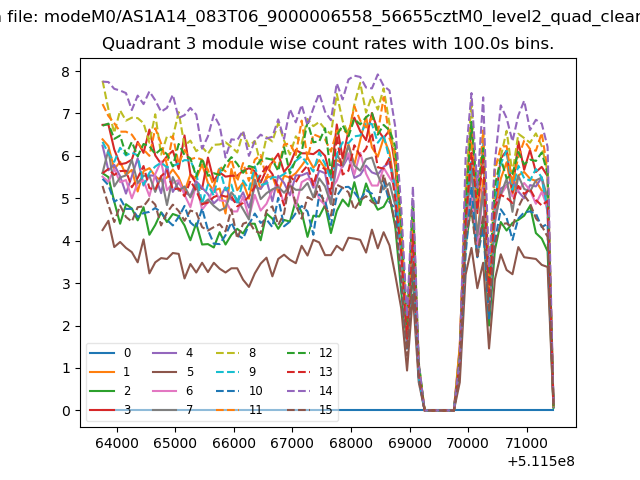

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

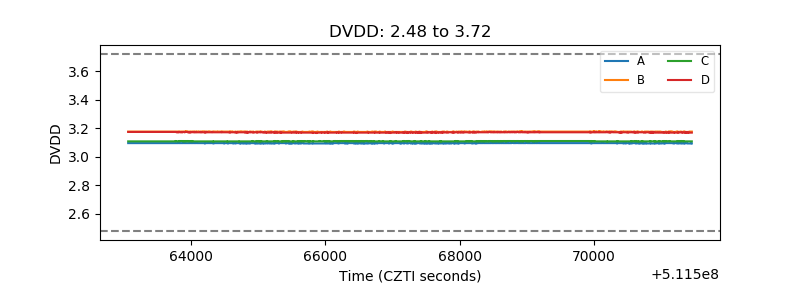

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

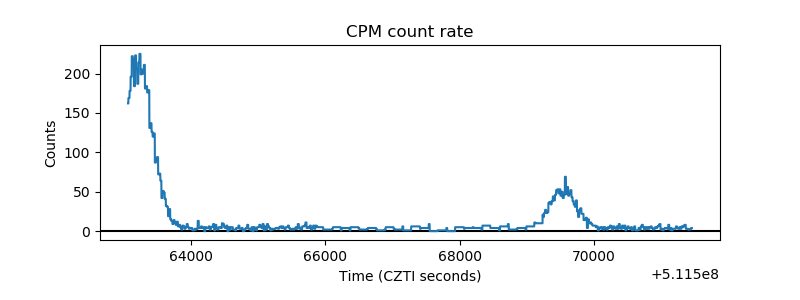

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

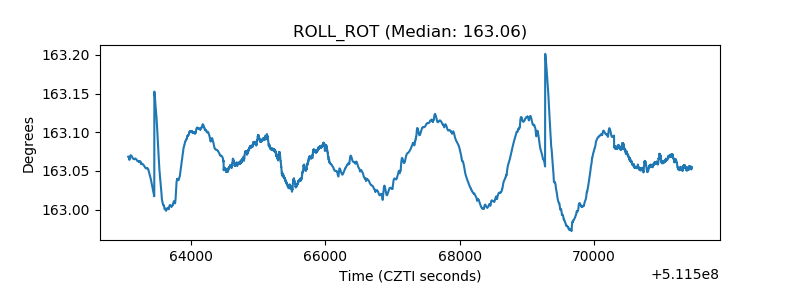

| _ROLL_ROT |  |
| _Roll_DEC |  |

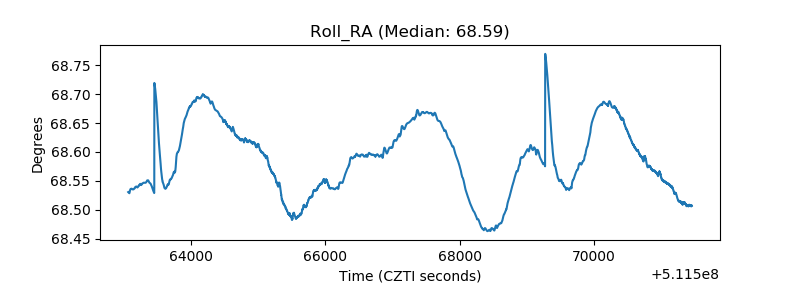

| _Roll_RA |  |
| Veto Counter |  |
