| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56656cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56656cztM0_level2_quad_clean.evt |
| Size (bytes) | 581,005,440 | 107,726,400 |
| Size | 554.1 MB | 102.7 MB |
| Events in quadrant A | 4,041,881 | 732,167 |
| Events in quadrant B | 7,377,976 | 674,528 |
| Events in quadrant C | 3,902,673 | 684,447 |
| Events in quadrant D | 5,580,631 | 630,165 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17981 | 2 |
| B | 0 | 27295 | 2 |
| C | 0 | 17711 | 2 |
| D | 0 | 22037 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7777 | 111 | 1.427286% |
| B | 7777 | 1341 | 17.243153% |
| C | 7776 | 181 | 2.327675% |
| D | 7776 | 345 | 4.436728% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7792 | 7778 | 14 | 14 | 0.18% | 0.18% |  |
| B | 7792 | 7778 | 961 | 961 | 12.33% | 12.36% |  |
| C | 7791 | 7777 | 65 | 65 | 0.83% | 0.84% |  |
| D | 7791 | 7777 | 357 | 357 | 4.58% | 4.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 425231 | 2051.41 | 845 | 823 | 206.9 |
| A | 8 | 249 | 206313 | 993.25 | 845 | 823 | 206.9 |
| A | 4 | 95 | 38362 | 181.45 | 845 | 823 | 206.9 |
| B | 4 | 206 | 3384486 | 20147.08 | 790 | 761 | 168.0 |
| B | 4 | 21 | 241381 | 1432.68 | 790 | 761 | 168.0 |
| B | 8 | 128 | 184247 | 1092.5 | 790 | 761 | 168.0 |
| C | 13 | 3 | 211541 | 945.92 | 818 | 809 | 222.8 |
| C | 12 | 252 | 176102 | 786.84 | 818 | 809 | 222.8 |
| C | 6 | 223 | 115844 | 516.36 | 818 | 809 | 222.8 |
| D | 8 | 129 | 835665 | 3684.82 | 806 | 768 | 226.6 |
| D | 2 | 249 | 450763 | 1986.05 | 806 | 768 | 226.6 |
| D | 2 | 31 | 429842 | 1893.72 | 806 | 768 | 226.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

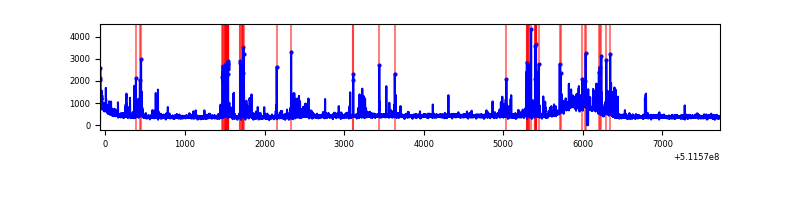

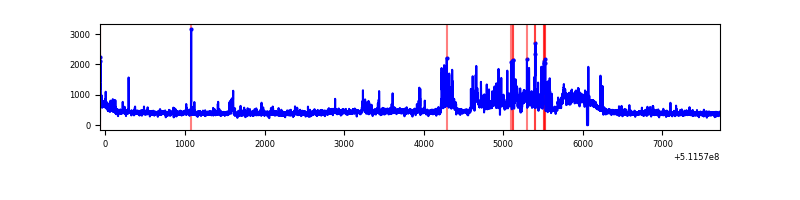

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

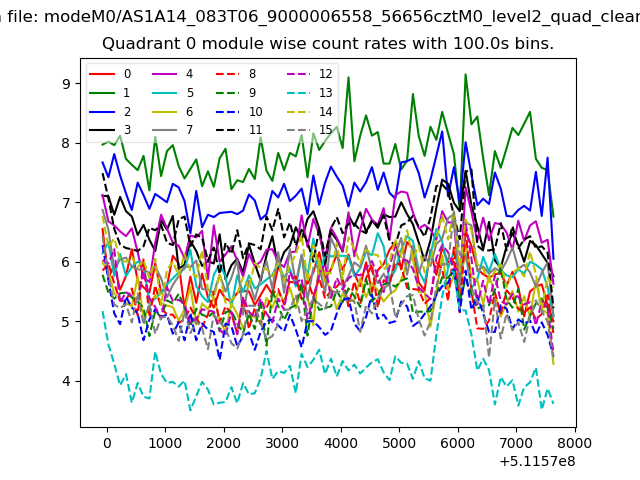

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

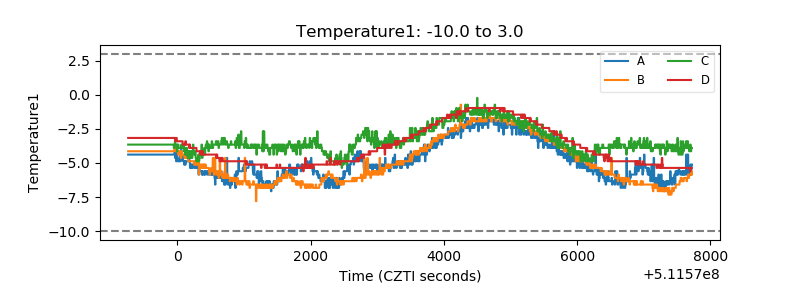

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

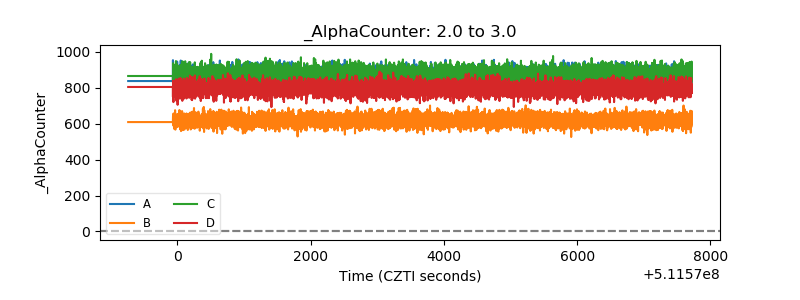

| Alpha Counter |  |
| _CPM_Rate |  |

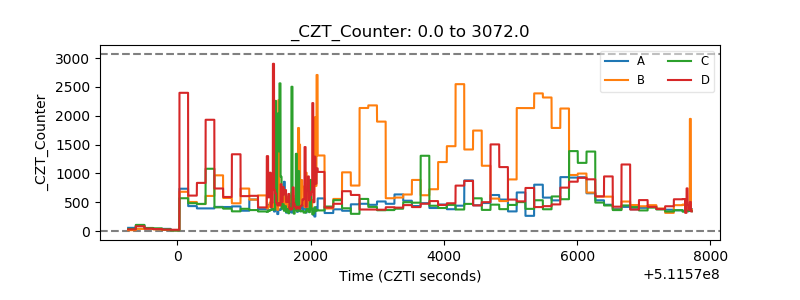

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

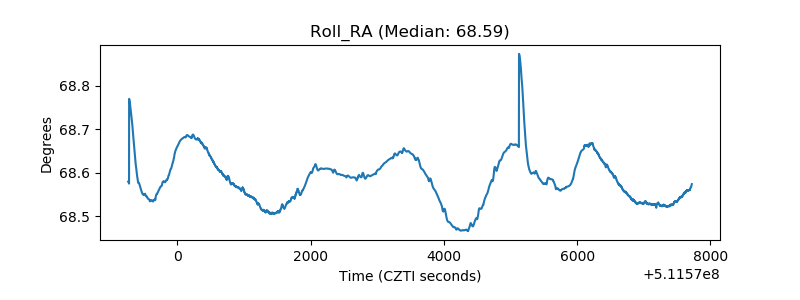

| _Roll_RA |  |

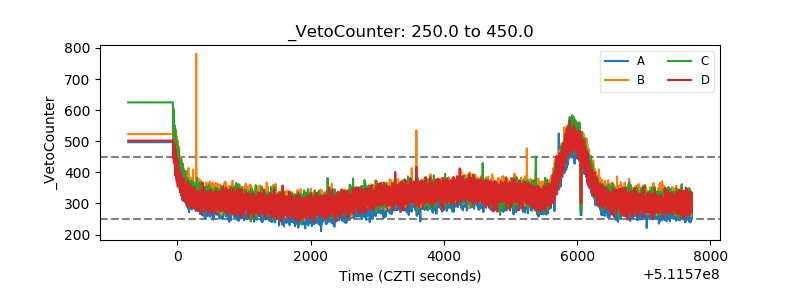

| Veto Counter |  |
