| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56667cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56667cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,337,600 | 91,851,840 |
| Size | 411.4 MB | 87.6 MB |
| Events in quadrant A | 2,842,296 | 626,493 |
| Events in quadrant B | 2,910,555 | 676,369 |
| Events in quadrant C | 5,348,438 | 533,436 |
| Events in quadrant D | 4,378,742 | 508,277 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12982 | 3 |
| B | 0 | 13133 | 2 |
| C | 0 | 20318 | 2 |
| D | 0 | 17522 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6252 | 19 | 0.303903% |
| B | 6252 | 44 | 0.703775% |
| C | 6253 | 754 | 12.058212% |
| D | 6253 | 492 | 7.868223% |

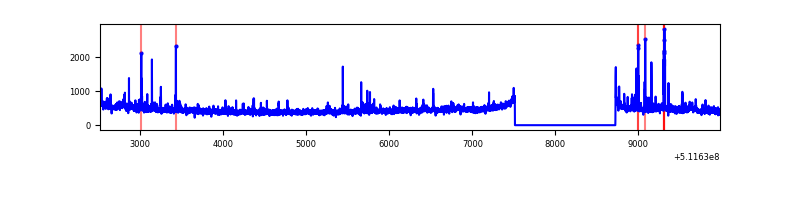

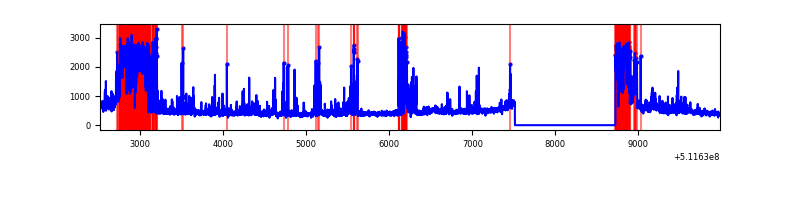

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

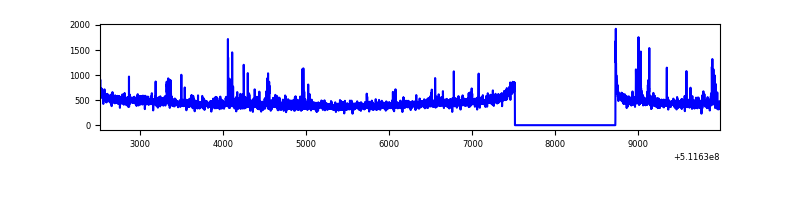

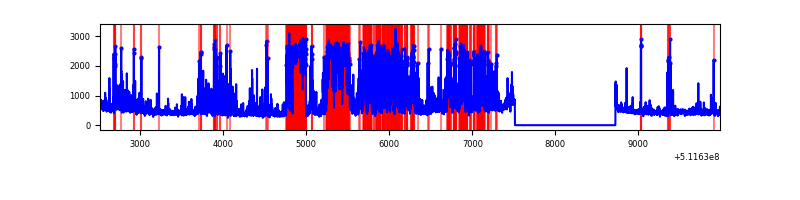

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7462 | 6253 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7462 | 6252 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7463 | 6254 | 748 | 748 | 10.02% | 11.96% |  |
| D | 7463 | 6254 | 482 | 482 | 6.46% | 7.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 67451 | 394.38 | 683 | 668 | 169.3 |
| A | 7 | 64 | 23591 | 135.37 | 683 | 668 | 169.3 |
| A | 13 | 254 | 18478 | 105.18 | 683 | 668 | 169.3 |
| B | 10 | 247 | 55330 | 381.14 | 677 | 653 | 143.5 |
| B | 0 | 63 | 40588 | 278.38 | 677 | 653 | 143.5 |
| B | 0 | 171 | 28767 | 195.98 | 677 | 653 | 143.5 |
| C | 15 | 230 | 2114457 | 12420.86 | 622 | 616 | 170.2 |
| C | 12 | 252 | 370001 | 2170.49 | 622 | 616 | 170.2 |
| C | 1 | 16 | 141779 | 829.47 | 622 | 616 | 170.2 |
| D | 2 | 249 | 1106171 | 6205.08 | 624 | 595 | 178.2 |
| D | 8 | 129 | 323437 | 1811.96 | 624 | 595 | 178.2 |
| D | 2 | 31 | 115205 | 643.25 | 624 | 595 | 178.2 |

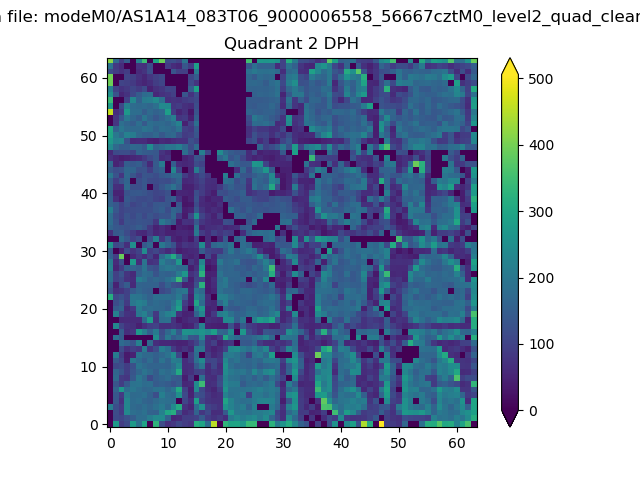

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

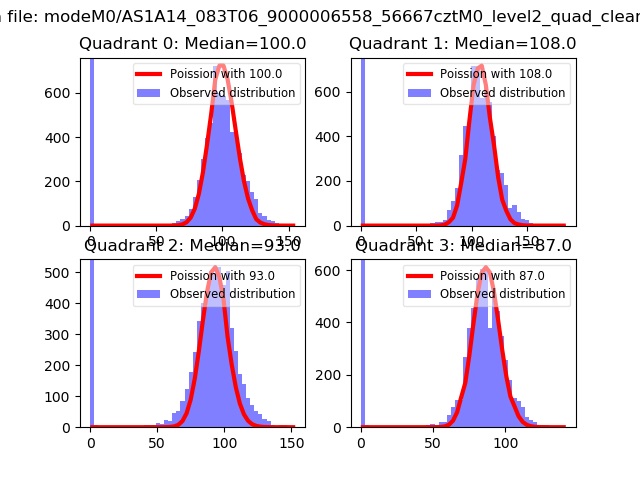

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

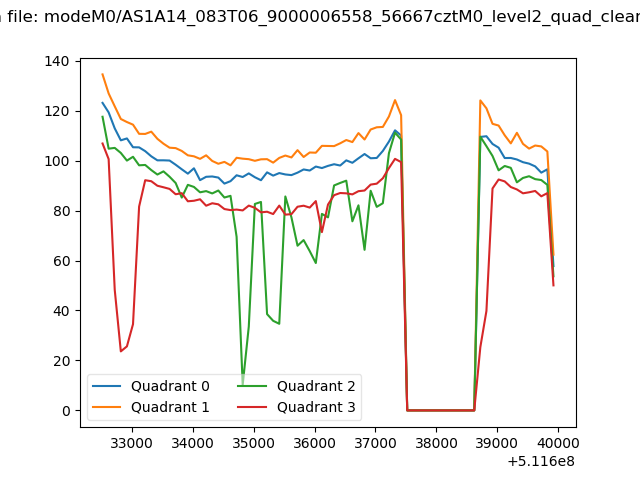

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

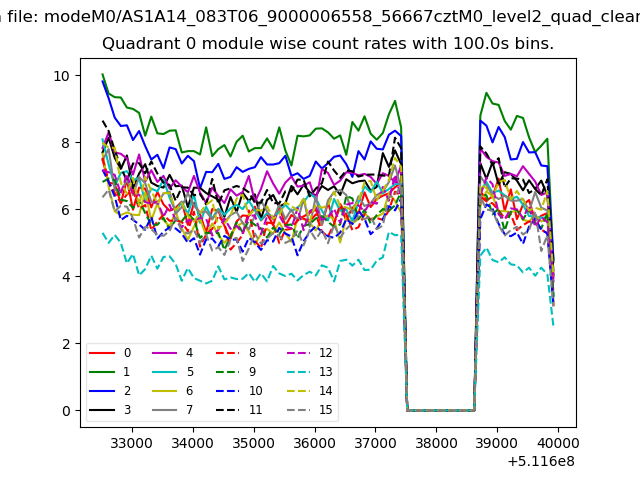

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

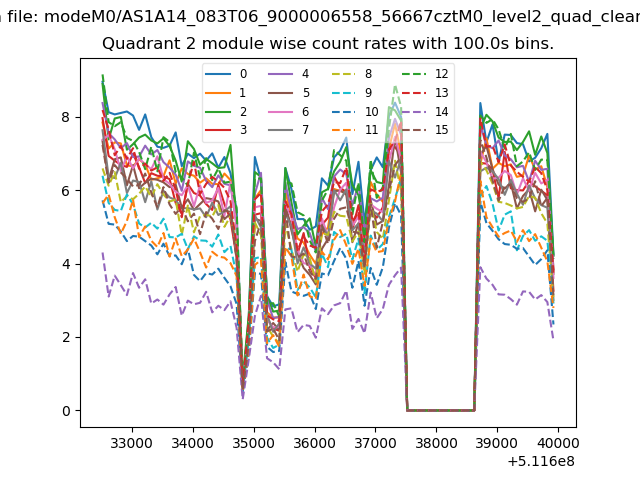

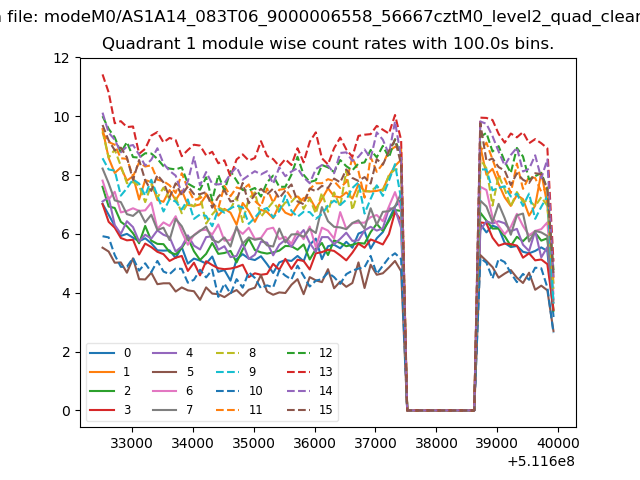

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

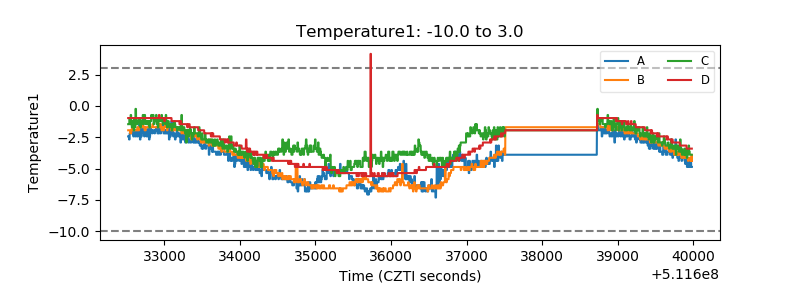

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

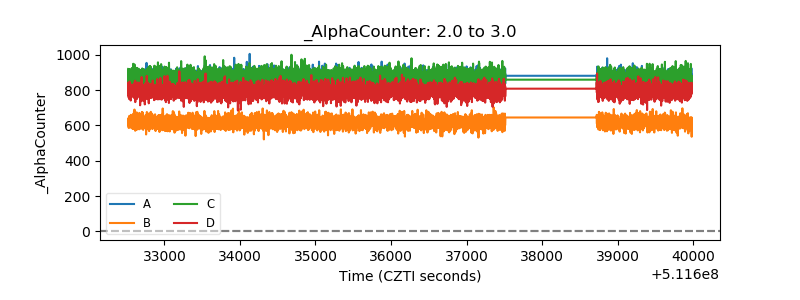

| Alpha Counter |  |
| _CPM_Rate |  |

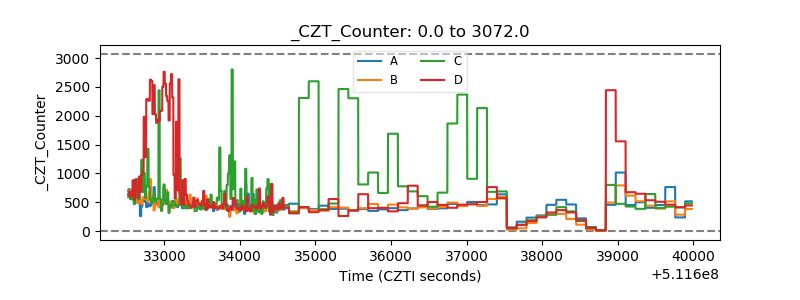

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

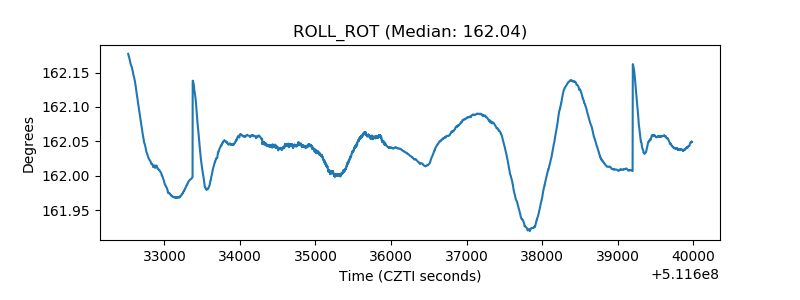

| _ROLL_ROT |  |

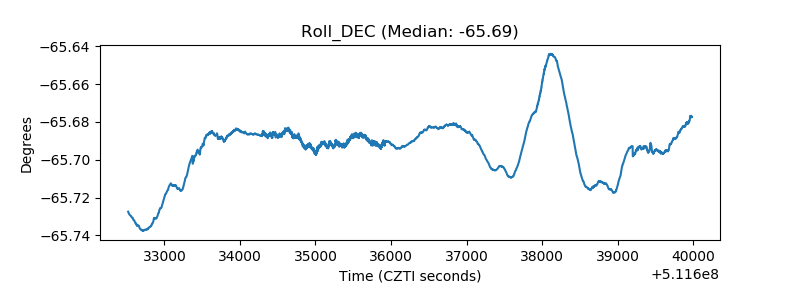

| _Roll_DEC |  |

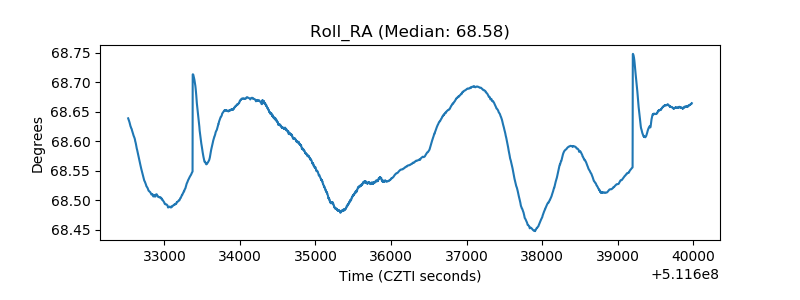

| _Roll_RA |  |

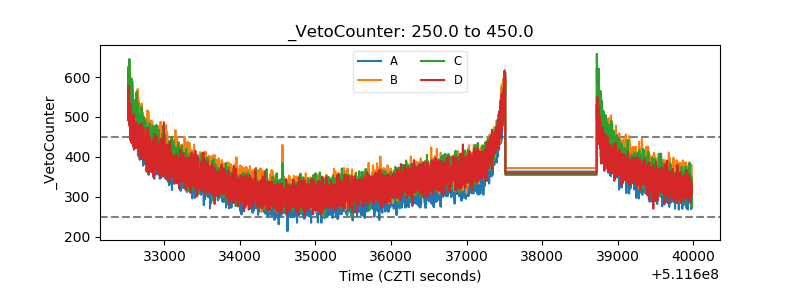

| Veto Counter |  |
