| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56669cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56669cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,416,000 | 93,441,600 |
| Size | 470.6 MB | 89.1 MB |
| Events in quadrant A | 3,092,114 | 634,333 |
| Events in quadrant B | 3,332,350 | 684,444 |
| Events in quadrant C | 8,085,770 | 487,997 |
| Events in quadrant D | 3,239,536 | 560,207 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14213 | 2 |
| B | 0 | 14539 | 2 |
| C | 0 | 28588 | 2 |
| D | 0 | 14547 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6626 | 56 | 0.845155% |
| B | 6626 | 57 | 0.860248% |
| C | 6625 | 1456 | 21.977358% |
| D | 6625 | 35 | 0.528302% |

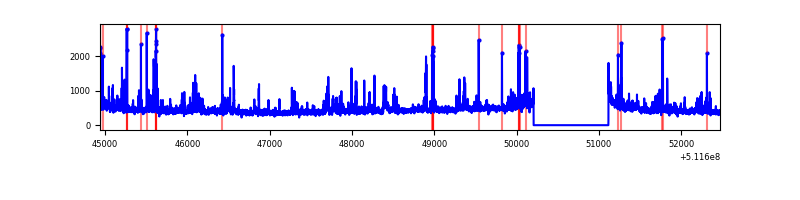

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7536 | 6627 | 48 | 48 | 0.64% | 0.72% |  |
| B | 7536 | 6627 | 39 | 39 | 0.52% | 0.59% |  |
| C | 7535 | 6626 | 1541 | 1541 | 20.45% | 23.26% |  |
| D | 7535 | 6626 | 32 | 32 | 0.42% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 214256 | 1239.95 | 700 | 682 | 172.2 |
| A | 8 | 249 | 92810 | 534.87 | 700 | 682 | 172.2 |
| A | 0 | 8 | 21877 | 123.05 | 700 | 682 | 172.2 |
| B | 0 | 213 | 247959 | 1657.17 | 699 | 673 | 149.2 |
| B | 0 | 63 | 140623 | 937.87 | 699 | 673 | 149.2 |
| B | 10 | 247 | 48265 | 318.93 | 699 | 673 | 149.2 |
| C | 15 | 230 | 4116139 | 24126.89 | 619 | 611 | 170.6 |
| C | 9 | 38 | 614387 | 3598.2 | 619 | 611 | 170.6 |
| C | 12 | 252 | 244951 | 1432.42 | 619 | 611 | 170.6 |
| D | 2 | 249 | 177377 | 939.58 | 665 | 637 | 188.1 |
| D | 3 | 12 | 102833 | 543.29 | 665 | 637 | 188.1 |
| D | 5 | 173 | 66315 | 349.16 | 665 | 637 | 188.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

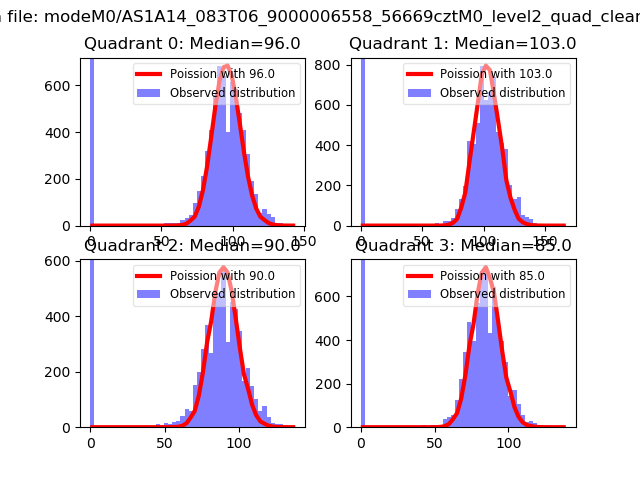

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

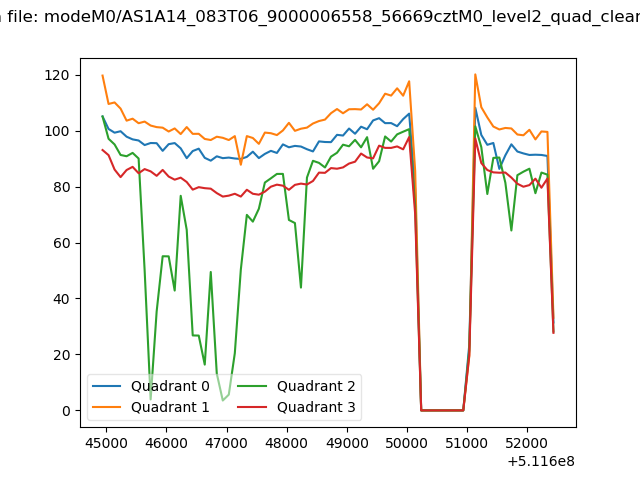

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

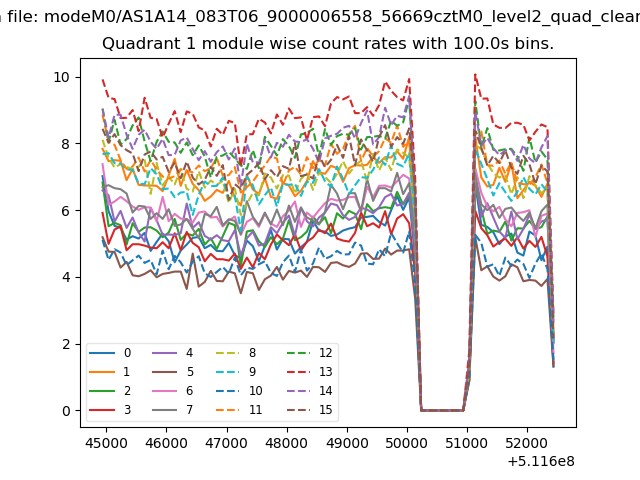

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
