| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56671cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56671cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,678,080 | 119,522,880 |
| Size | 505.1 MB | 114.0 MB |
| Events in quadrant A | 5,476,555 | 749,687 |
| Events in quadrant B | 3,832,071 | 855,448 |
| Events in quadrant C | 4,158,726 | 743,790 |
| Events in quadrant D | 5,487,230 | 686,629 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22382 | 1 |
| B | 0 | 17692 | 1 |
| C | 0 | 18589 | 1 |
| D | 0 | 22420 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8398 | 525 | 6.251488% |
| B | 8399 | 55 | 0.654840% |
| C | 8399 | 73 | 0.869151% |
| D | 8399 | 225 | 2.678890% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8892 | 8397 | 503 | 503 | 5.66% | 5.99% |  |
| B | 8893 | 8398 | 9 | 9 | 0.10% | 0.11% |  |
| C | 8893 | 8399 | 64 | 64 | 0.72% | 0.76% |  |
| D | 8893 | 8398 | 178 | 178 | 2.00% | 2.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 26 | 1361232 | 6225.96 | 890 | 867 | 218.5 |
| A | 12 | 3 | 370469 | 1691.55 | 890 | 867 | 218.5 |
| A | 0 | 8 | 77411 | 350.32 | 890 | 867 | 218.5 |
| B | 4 | 21 | 57740 | 294.25 | 906 | 872 | 193.3 |
| B | 0 | 245 | 35080 | 177.0 | 906 | 872 | 193.3 |
| B | 0 | 63 | 29717 | 149.25 | 906 | 872 | 193.3 |
| C | 12 | 252 | 232246 | 964.25 | 881 | 871 | 240.0 |
| C | 14 | 96 | 193303 | 801.95 | 881 | 871 | 240.0 |
| C | 6 | 223 | 54789 | 224.7 | 881 | 871 | 240.0 |
| D | 10 | 199 | 512394 | 2109.41 | 868 | 830 | 242.5 |
| D | 2 | 249 | 481825 | 1983.36 | 868 | 830 | 242.5 |
| D | 2 | 31 | 406189 | 1671.48 | 868 | 830 | 242.5 |

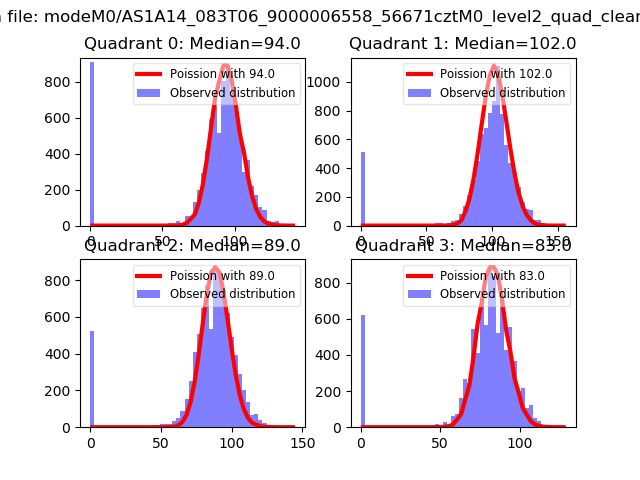

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

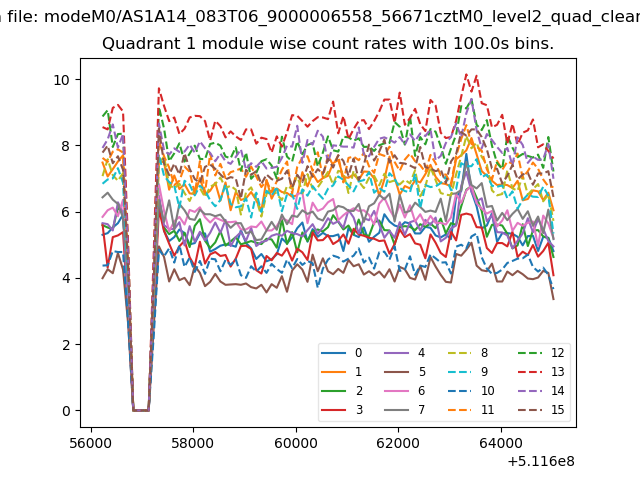

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

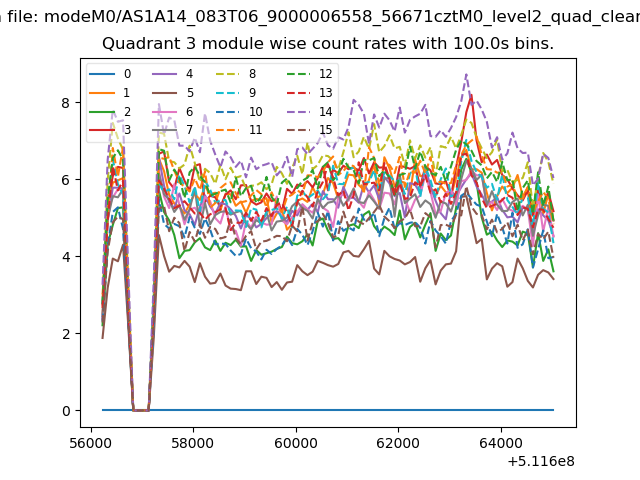

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

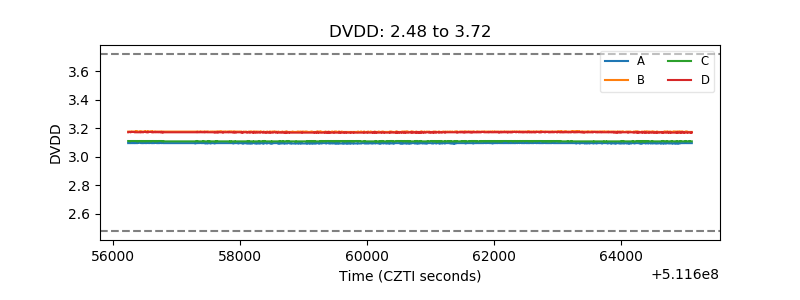

| D_VDD |  |

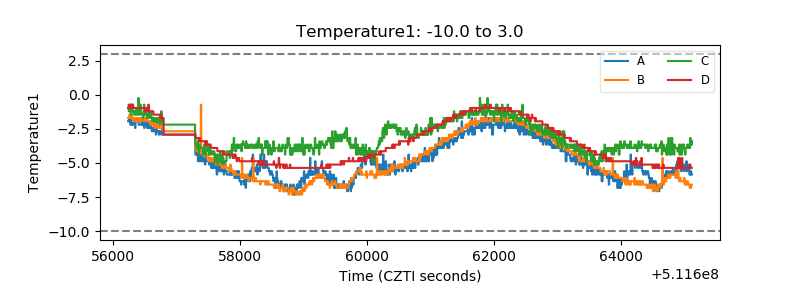

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

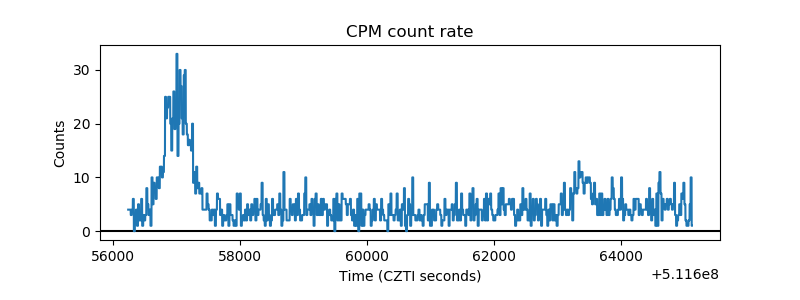

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

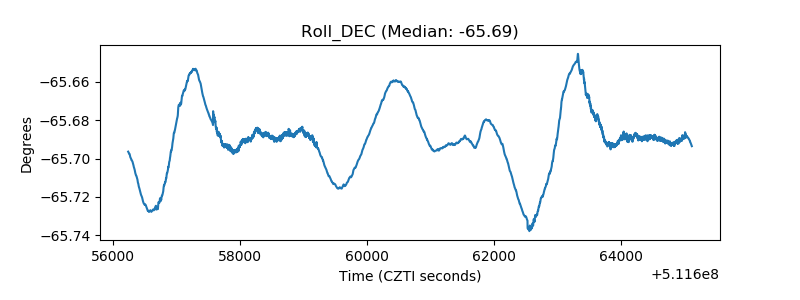

| _Roll_DEC |  |
| _Roll_RA |  |

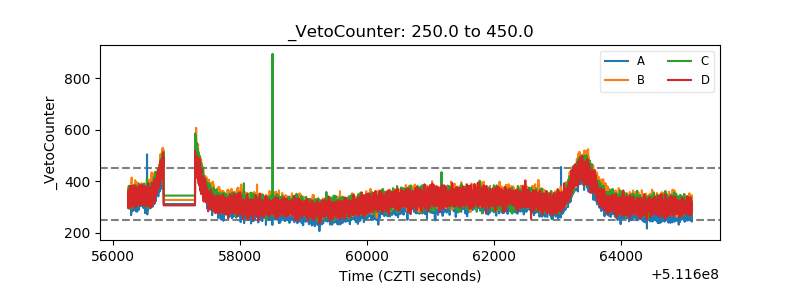

| Veto Counter |  |
