| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56679cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56679cztM0_level2_quad_clean.evt |
| Size (bytes) | 608,780,160 | 80,853,120 |
| Size | 580.6 MB | 77.1 MB |
| Events in quadrant A | 5,339,728 | 547,249 |
| Events in quadrant B | 2,755,422 | 625,203 |
| Events in quadrant C | 9,314,461 | 353,464 |
| Events in quadrant D | 4,654,114 | 497,804 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20241 | 1 |
| B | 0 | 12605 | 1 |
| C | 0 | 31845 | 1 |
| D | 0 | 17952 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6072 | 523 | 8.613307% |
| B | 6072 | 48 | 0.790514% |
| C | 6073 | 2502 | 41.198749% |
| D | 6073 | 437 | 7.195785% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7107 | 6073 | 404 | 404 | 5.68% | 6.65% |  |
| B | 7107 | 6073 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7108 | 6074 | 2568 | 2568 | 36.13% | 42.28% |  |
| D | 7108 | 6074 | 433 | 433 | 6.09% | 7.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1531494 | 9719.18 | 634 | 619 | 157.5 |
| A | 8 | 26 | 865497 | 5490.92 | 634 | 619 | 157.5 |
| A | 7 | 64 | 179235 | 1133.99 | 634 | 619 | 157.5 |
| B | 10 | 247 | 62464 | 444.9 | 641 | 619 | 139.0 |
| B | 0 | 245 | 42567 | 301.77 | 641 | 619 | 139.0 |
| B | 4 | 21 | 29086 | 204.79 | 641 | 619 | 139.0 |
| C | 15 | 230 | 6861279 | 49422.29 | 506 | 501 | 138.8 |
| C | 6 | 223 | 139700 | 1002.73 | 506 | 501 | 138.8 |
| C | 12 | 252 | 121271 | 869.98 | 506 | 501 | 138.8 |
| D | 2 | 249 | 1388934 | 8097.54 | 607 | 582 | 171.5 |
| D | 8 | 240 | 218799 | 1272.75 | 607 | 582 | 171.5 |
| D | 3 | 12 | 191791 | 1115.22 | 607 | 582 | 171.5 |

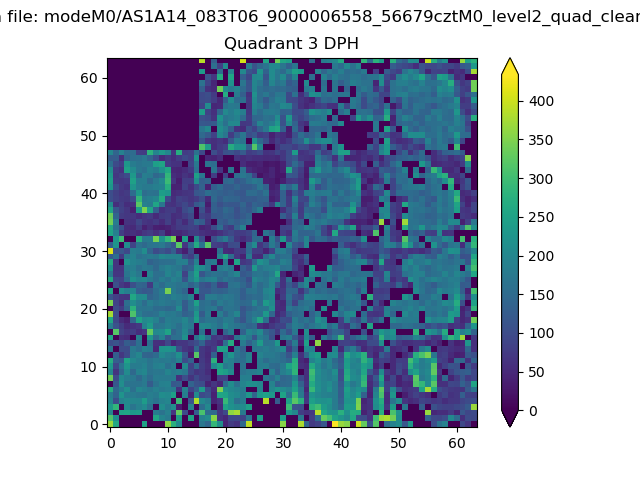

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

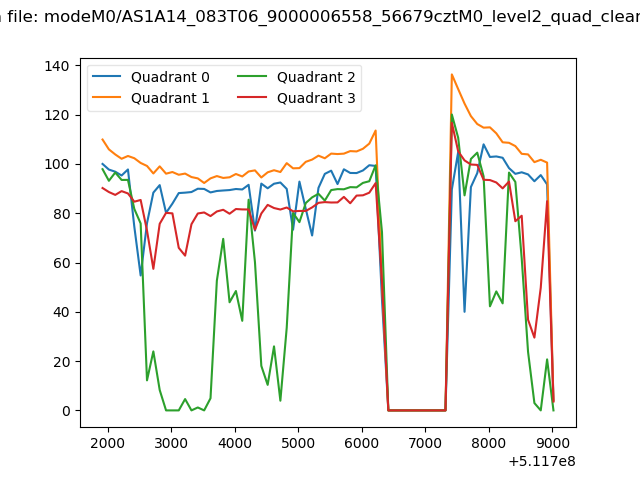

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

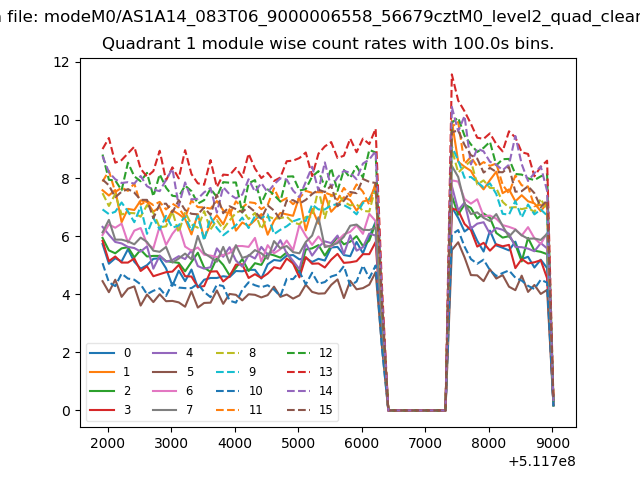

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

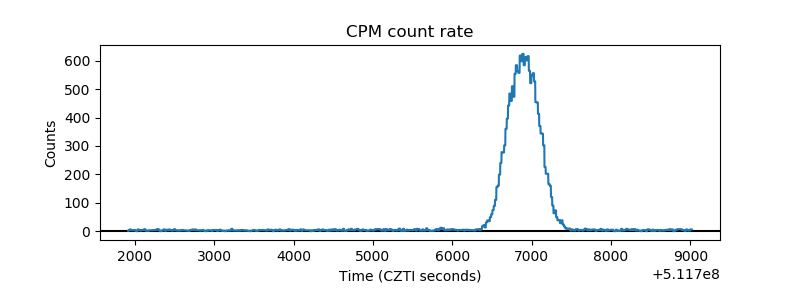

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

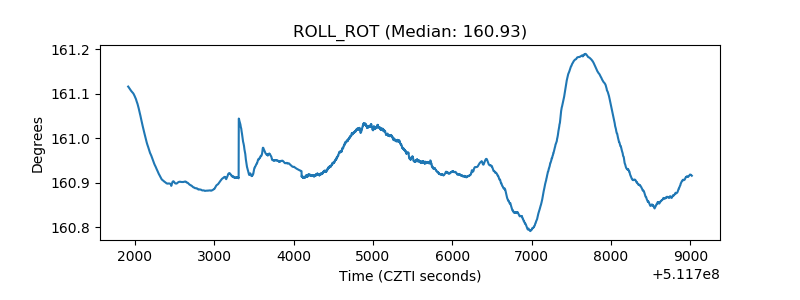

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

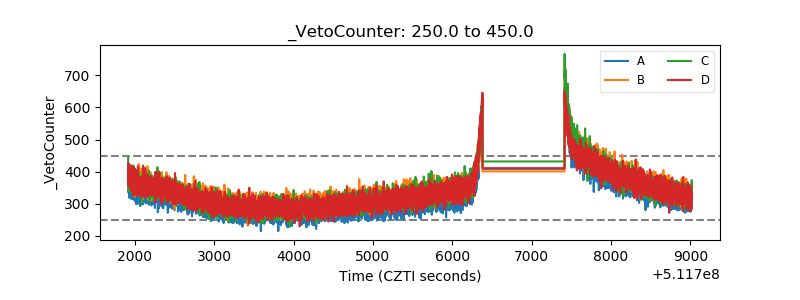

| Veto Counter |  |
