| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56680cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56680cztM0_level2_quad_clean.evt |
| Size (bytes) | 736,827,840 | 77,440,320 |
| Size | 702.7 MB | 73.9 MB |
| Events in quadrant A | 5,602,214 | 593,107 |
| Events in quadrant B | 2,968,582 | 651,171 |
| Events in quadrant C | 14,112,581 | 151,645 |
| Events in quadrant D | 4,111,342 | 516,836 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20871 | 1 |
| B | 0 | 13235 | 1 |
| C | 0 | 46258 | 6 |
| D | 0 | 16572 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6191 | 318 | 5.136488% |
| B | 6191 | 58 | 0.936844% |
| C | 6190 | 4762 | 76.930533% |
| D | 6190 | 364 | 5.880452% |

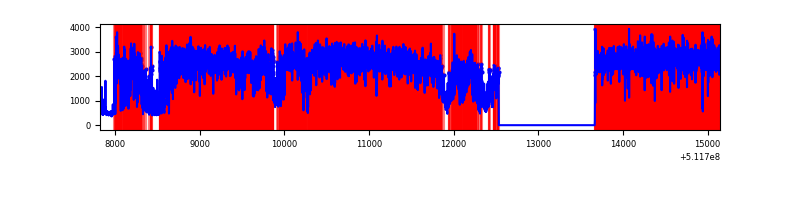

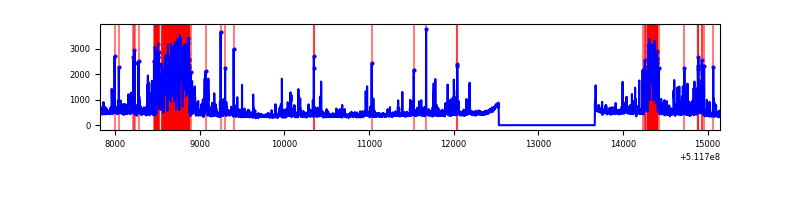

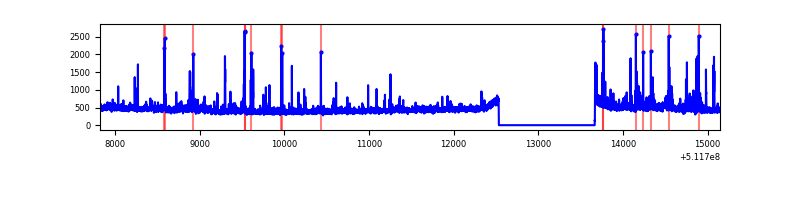

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7326 | 6192 | 330 | 330 | 4.50% | 5.33% |  |
| B | 7326 | 6192 | 16 | 16 | 0.22% | 0.26% |  |
| C | 7325 | 6191 | 4711 | 4711 | 64.31% | 76.09% |  |
| D | 7325 | 6191 | 337 | 337 | 4.60% | 5.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 2198156 | 13461.3 | 659 | 641 | 163.2 |
| A | 8 | 26 | 312416 | 1909.83 | 659 | 641 | 163.2 |
| A | 8 | 249 | 165992 | 1012.89 | 659 | 641 | 163.2 |
| B | 10 | 247 | 102245 | 724.55 | 659 | 636 | 140.2 |
| B | 4 | 156 | 67753 | 478.59 | 659 | 636 | 140.2 |
| B | 0 | 183 | 42580 | 299.09 | 659 | 636 | 140.2 |
| C | 15 | 230 | 11945828 | 116470.86 | 369 | 365 | 102.6 |
| C | 12 | 252 | 290922 | 2832.99 | 369 | 365 | 102.6 |
| C | 13 | 3 | 115843 | 1125.94 | 369 | 365 | 102.6 |
| D | 2 | 249 | 1081154 | 6119.15 | 623 | 595 | 176.6 |
| D | 7 | 96 | 128846 | 726.28 | 623 | 595 | 176.6 |
| D | 15 | 93 | 91472 | 514.63 | 623 | 595 | 176.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

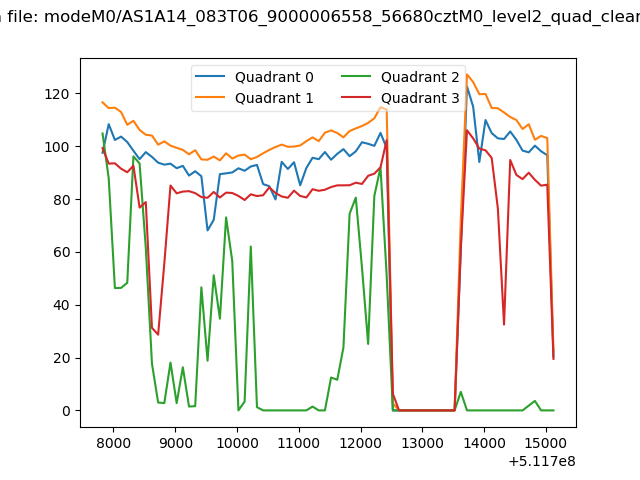

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

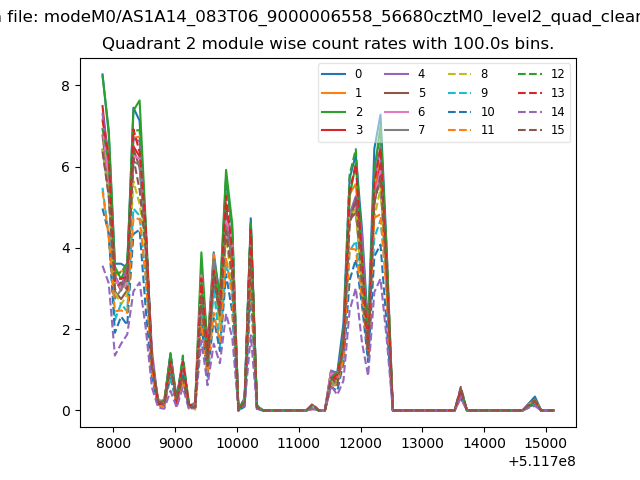

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

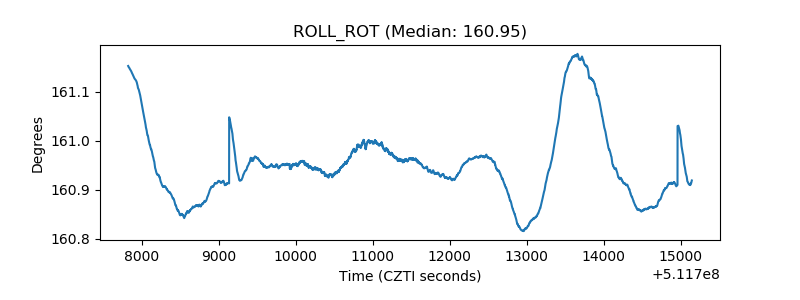

| _ROLL_ROT |  |
| _Roll_DEC |  |

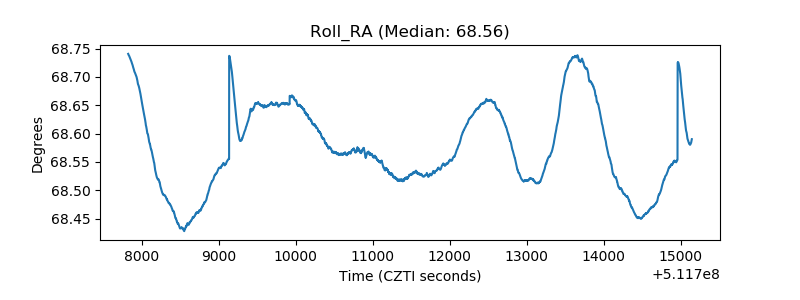

| _Roll_RA |  |

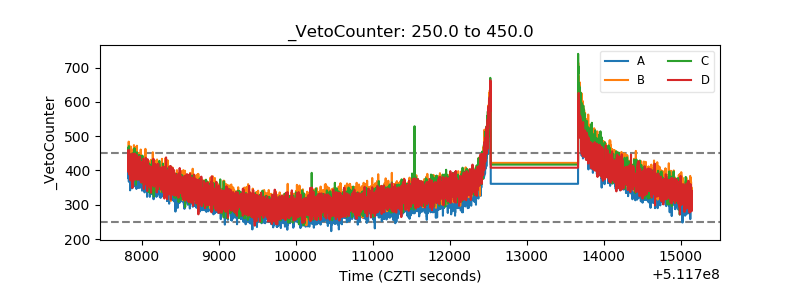

| Veto Counter |  |
