| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56681cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56681cztM0_level2_quad_clean.evt |
| Size (bytes) | 578,436,480 | 78,828,480 |
| Size | 551.6 MB | 75.2 MB |
| Events in quadrant A | 5,948,631 | 510,551 |
| Events in quadrant B | 2,759,405 | 624,438 |
| Events in quadrant C | 8,895,423 | 336,990 |
| Events in quadrant D | 3,350,455 | 502,830 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21768 | 1 |
| B | 0 | 12417 | 1 |
| C | 0 | 30531 | 1 |
| D | 0 | 14215 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5893 | 915 | 15.526896% |
| B | 5893 | 42 | 0.712710% |
| C | 5893 | 2368 | 40.183268% |
| D | 5893 | 170 | 2.884779% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7088 | 5893 | 735 | 735 | 10.37% | 12.47% |  |
| B | 7088 | 5894 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7088 | 5894 | 2310 | 2310 | 32.59% | 39.19% |  |
| D | 7088 | 5894 | 144 | 144 | 2.03% | 2.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 2882720 | 19724.49 | 590 | 575 | 146.1 |
| A | 3 | 14 | 304919 | 2082.83 | 590 | 575 | 146.1 |
| A | 8 | 26 | 272108 | 1858.29 | 590 | 575 | 146.1 |
| B | 10 | 247 | 84183 | 628.46 | 622 | 599 | 133.0 |
| B | 0 | 171 | 74789 | 557.83 | 622 | 599 | 133.0 |
| B | 4 | 21 | 26857 | 197.43 | 622 | 599 | 133.0 |
| C | 15 | 230 | 6092042 | 47209.59 | 464 | 457 | 129.0 |
| C | 12 | 252 | 762967 | 5909.42 | 464 | 457 | 129.0 |
| C | 1 | 28 | 88988 | 686.11 | 464 | 457 | 129.0 |
| D | 2 | 249 | 413439 | 2452.56 | 590 | 562 | 168.3 |
| D | 2 | 31 | 132579 | 784.21 | 590 | 562 | 168.3 |
| D | 6 | 239 | 83483 | 492.57 | 590 | 562 | 168.3 |

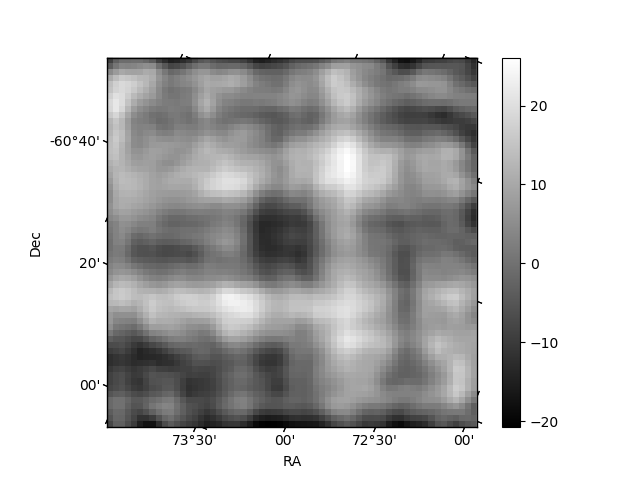

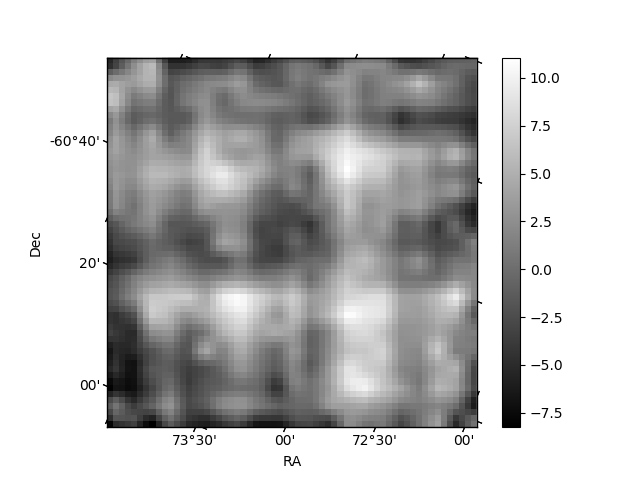

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

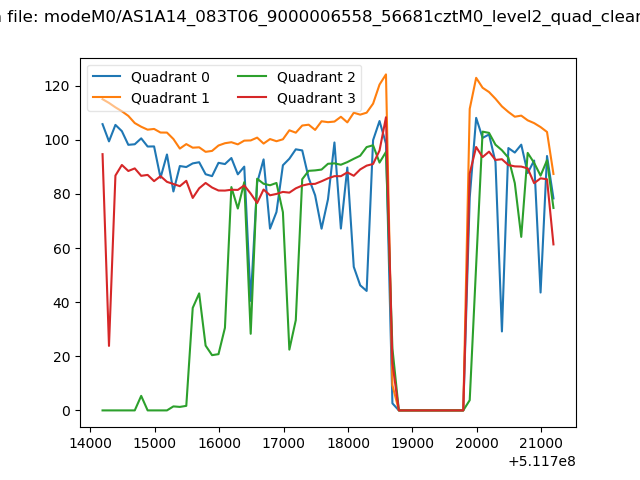

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

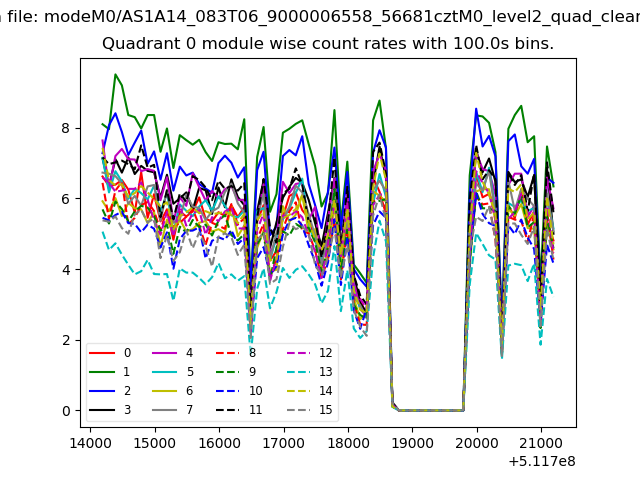

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

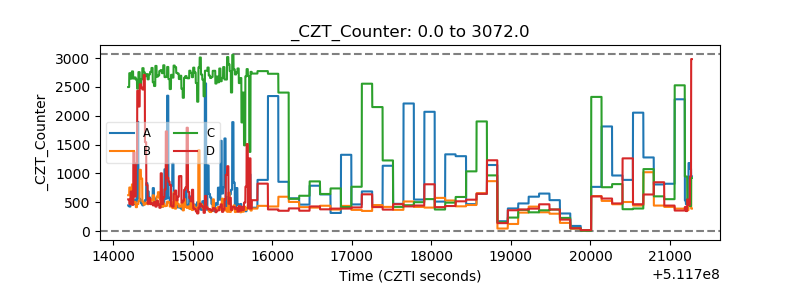

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

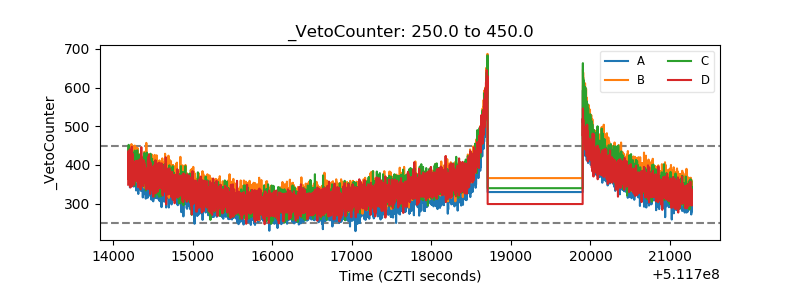

| Veto Counter |  |
