| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56683cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56683cztM0_level2_quad_clean.evt |
| Size (bytes) | 634,167,360 | 85,685,760 |
| Size | 604.8 MB | 81.7 MB |
| Events in quadrant A | 7,955,348 | 514,710 |
| Events in quadrant B | 2,970,045 | 671,438 |
| Events in quadrant C | 8,756,622 | 410,913 |
| Events in quadrant D | 3,290,367 | 545,779 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28206 | 2 |
| B | 0 | 13614 | 2 |
| C | 0 | 30595 | 3 |
| D | 0 | 14663 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6476 | 1409 | 21.757258% |
| B | 6476 | 42 | 0.648548% |
| C | 6475 | 2002 | 30.918919% |
| D | 6475 | 92 | 1.420849% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

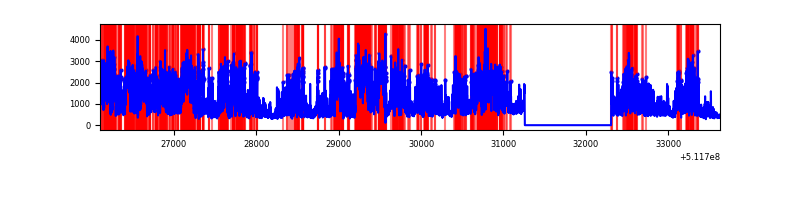

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7526 | 6477 | 1178 | 1178 | 15.65% | 18.19% |  |
| B | 7526 | 6477 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7525 | 6476 | 1966 | 1966 | 26.13% | 30.36% |  |
| D | 7525 | 6476 | 84 | 84 | 1.12% | 1.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 4347706 | 27865.77 | 629 | 613 | 156.0 |
| A | 8 | 26 | 538695 | 3449.21 | 629 | 613 | 156.0 |
| A | 7 | 64 | 481715 | 3083.96 | 629 | 613 | 156.0 |
| B | 10 | 247 | 71336 | 489.95 | 676 | 652 | 144.3 |
| B | 8 | 128 | 66365 | 455.49 | 676 | 652 | 144.3 |
| B | 4 | 21 | 39879 | 271.9 | 676 | 652 | 144.3 |
| C | 15 | 230 | 6324070 | 41611.87 | 548 | 542 | 152.0 |
| C | 13 | 3 | 95412 | 624.29 | 548 | 542 | 152.0 |
| C | 6 | 223 | 83685 | 547.12 | 548 | 542 | 152.0 |
| D | 3 | 12 | 219928 | 1190.57 | 645 | 617 | 184.2 |
| D | 2 | 249 | 124649 | 673.33 | 645 | 617 | 184.2 |
| D | 6 | 239 | 106828 | 576.59 | 645 | 617 | 184.2 |

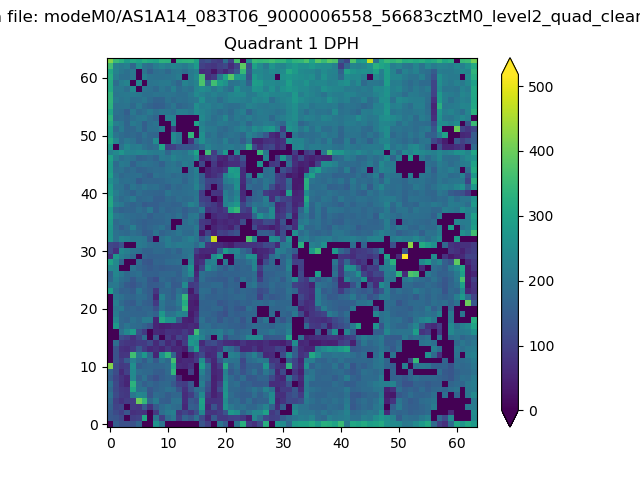

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

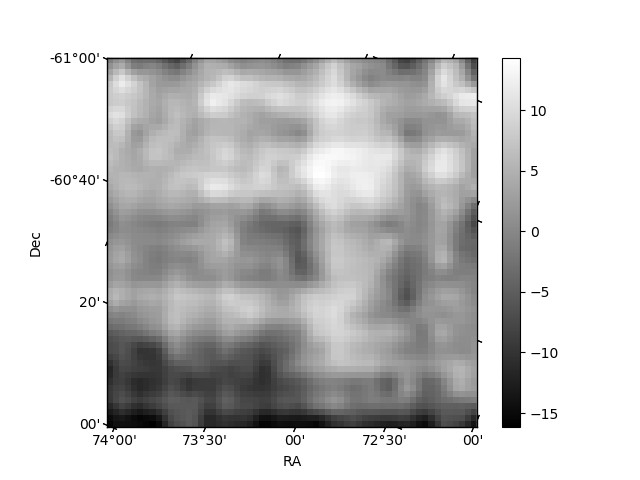

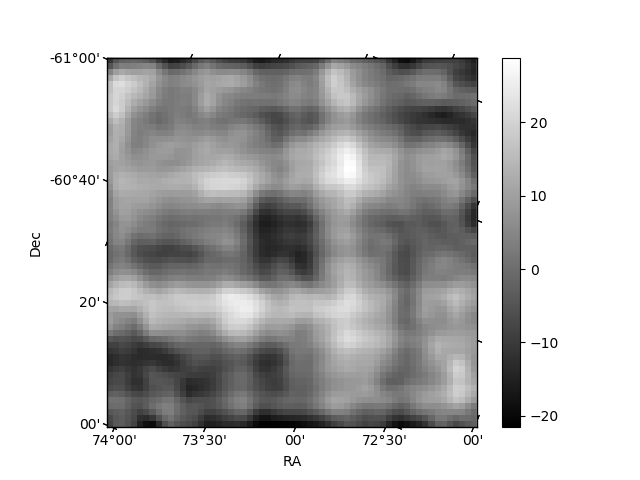

| Plot type | Count rate plots | Images |
|---|---|---|

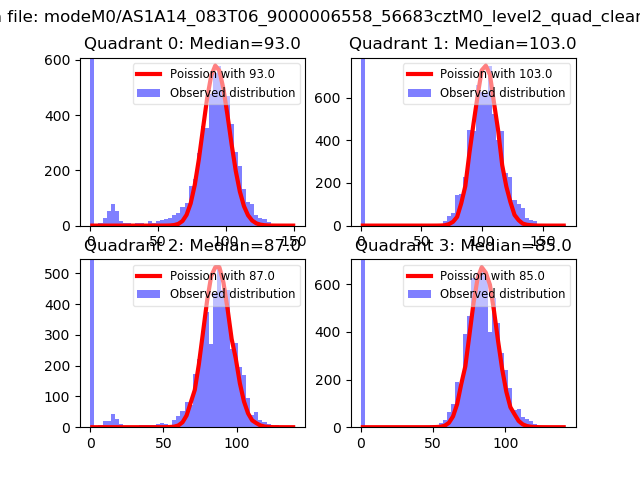

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

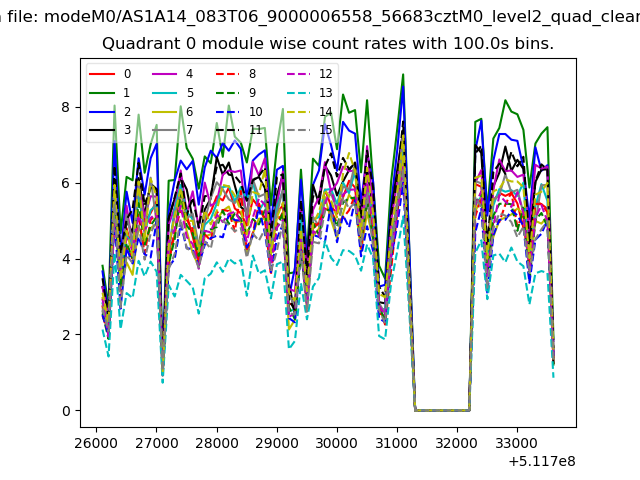

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

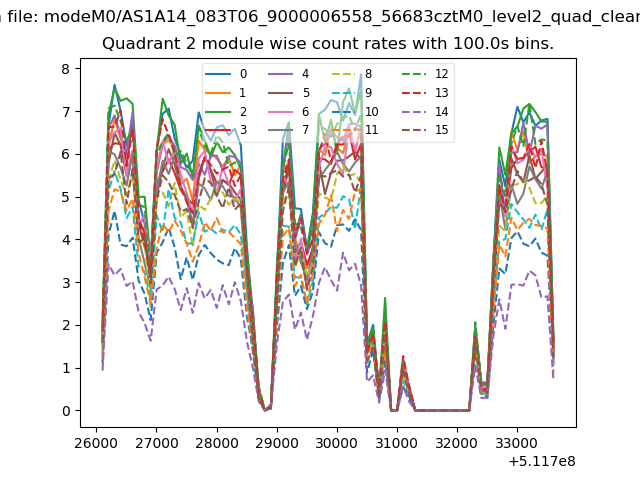

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

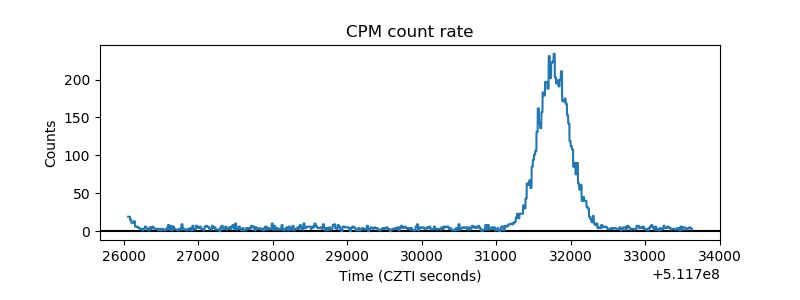

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
