| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56684cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56684cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,979,200 | 95,771,520 |
| Size | 481.6 MB | 91.3 MB |
| Events in quadrant A | 5,466,311 | 613,222 |
| Events in quadrant B | 3,215,536 | 698,656 |
| Events in quadrant C | 5,801,164 | 549,852 |
| Events in quadrant D | 3,674,521 | 558,439 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21204 | 2 |
| B | 0 | 14575 | 2 |
| C | 0 | 22297 | 2 |
| D | 0 | 16170 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6890 | 527 | 7.648766% |
| B | 6890 | 45 | 0.653120% |
| C | 6889 | 750 | 10.886921% |
| D | 6889 | 196 | 2.845115% |

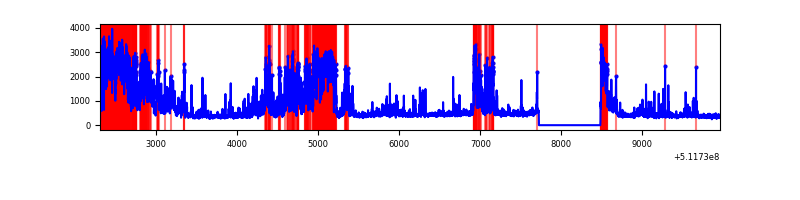

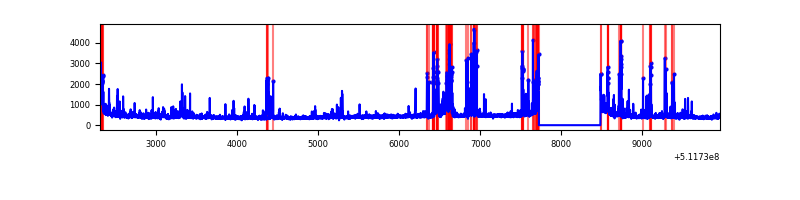

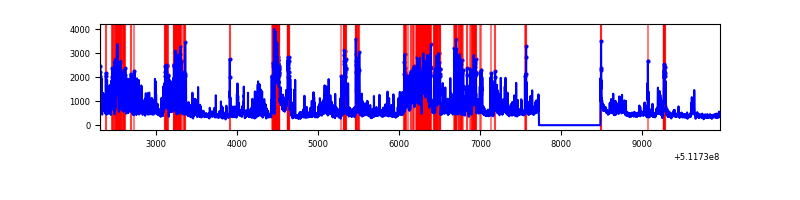

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7650 | 6891 | 398 | 398 | 5.20% | 5.78% |  |
| B | 7650 | 6891 | 7 | 7 | 0.09% | 0.10% |  |
| C | 7649 | 6890 | 754 | 754 | 9.86% | 10.94% |  |
| D | 7649 | 6890 | 140 | 140 | 1.83% | 2.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1805668 | 10394.94 | 700 | 683 | 173.6 |
| A | 8 | 26 | 684388 | 3937.47 | 700 | 683 | 173.6 |
| A | 3 | 62 | 164233 | 941.89 | 700 | 683 | 173.6 |
| B | 4 | 21 | 128961 | 847.06 | 713 | 689 | 151.4 |
| B | 10 | 247 | 70715 | 462.43 | 713 | 689 | 151.4 |
| B | 8 | 128 | 63720 | 416.23 | 713 | 689 | 151.4 |
| C | 15 | 230 | 2930302 | 16259.1 | 655 | 648 | 180.2 |
| C | 6 | 223 | 194001 | 1073.08 | 655 | 648 | 180.2 |
| C | 12 | 252 | 55201 | 302.76 | 655 | 648 | 180.2 |
| D | 5 | 32 | 276026 | 1428.72 | 677 | 646 | 192.7 |
| D | 2 | 249 | 146708 | 757.79 | 677 | 646 | 192.7 |
| D | 6 | 239 | 128631 | 664.01 | 677 | 646 | 192.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

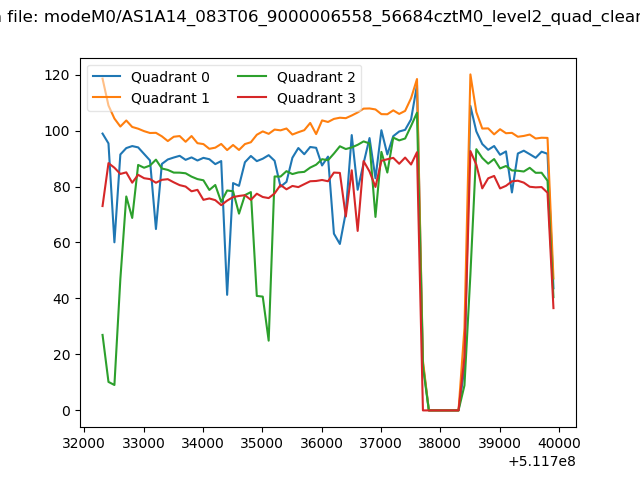

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

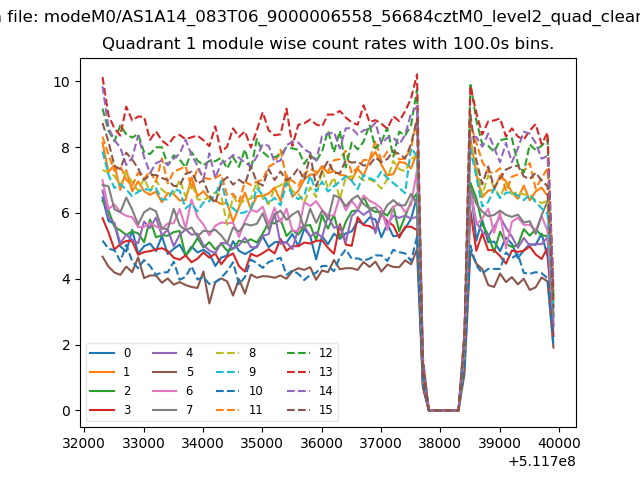

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

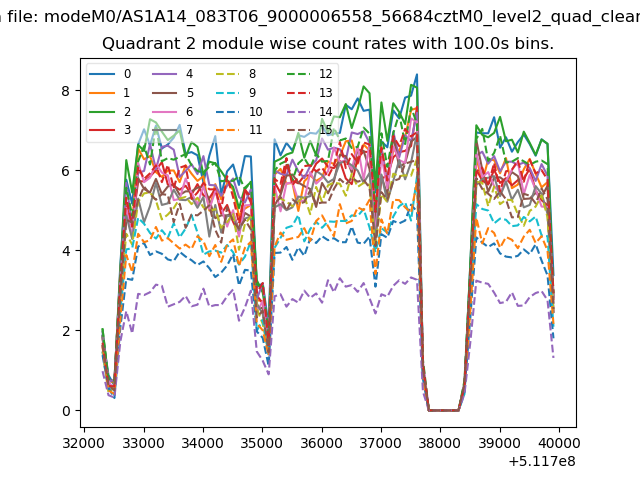

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

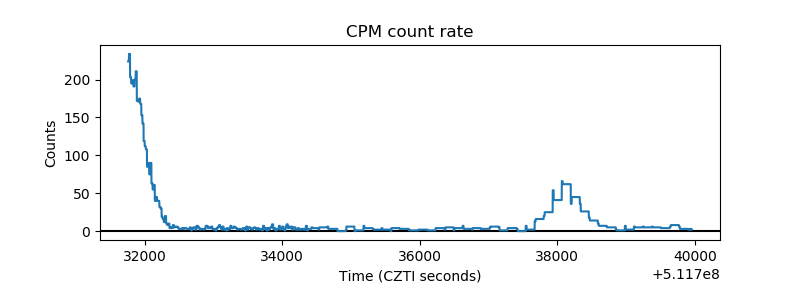

| _CPM_Rate |  |

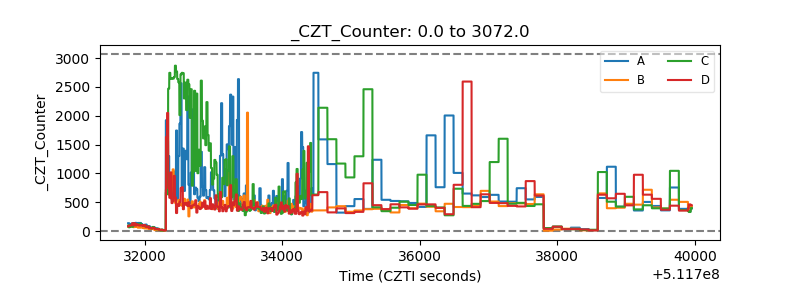

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
