| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56691cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56691cztM0_level2_quad_clean.evt |
| Size (bytes) | 424,581,120 | 109,650,240 |
| Size | 404.9 MB | 104.6 MB |
| Events in quadrant A | 3,607,152 | 743,903 |
| Events in quadrant B | 3,045,536 | 743,688 |
| Events in quadrant C | 4,263,041 | 690,768 |
| Events in quadrant D | 4,294,244 | 687,955 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15348 | 1 |
| B | 0 | 13826 | 1 |
| C | 0 | 17280 | 1 |
| D | 0 | 17192 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6513 | 143 | 2.195609% |
| B | 6514 | 97 | 1.489100% |
| C | 6514 | 368 | 5.649371% |
| D | 6514 | 240 | 3.684372% |

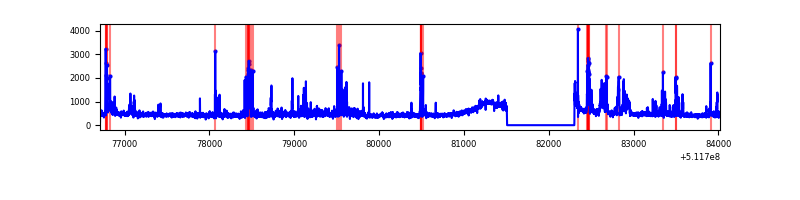

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7308 | 6514 | 44 | 44 | 0.60% | 0.68% |  |
| B | 7309 | 6515 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7309 | 6515 | 183 | 183 | 2.50% | 2.81% |  |
| D | 7309 | 6515 | 139 | 139 | 1.90% | 2.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 26 | 252646 | 1326.68 | 741 | 723 | 189.9 |
| A | 3 | 14 | 112218 | 587.16 | 741 | 723 | 189.9 |
| A | 10 | 251 | 73048 | 380.88 | 741 | 723 | 189.9 |
| B | 4 | 21 | 69865 | 443.52 | 715 | 689 | 156.0 |
| B | 10 | 247 | 55093 | 348.81 | 715 | 689 | 156.0 |
| B | 0 | 171 | 33785 | 212.19 | 715 | 689 | 156.0 |
| C | 13 | 3 | 519007 | 2602.52 | 706 | 696 | 199.2 |
| C | 15 | 230 | 410099 | 2055.67 | 706 | 696 | 199.2 |
| C | 14 | 96 | 170584 | 853.03 | 706 | 696 | 199.2 |
| D | 2 | 249 | 509230 | 2389.23 | 727 | 695 | 212.8 |
| D | 10 | 199 | 235510 | 1103.22 | 727 | 695 | 212.8 |
| D | 7 | 96 | 140953 | 658.97 | 727 | 695 | 212.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

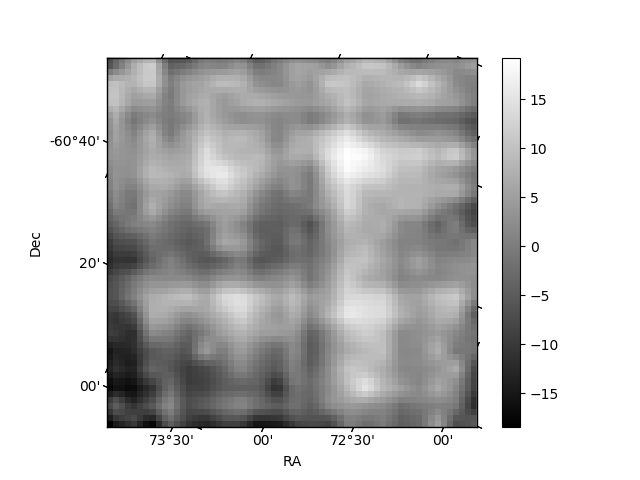

| Plot type | Count rate plots | Images |
|---|---|---|

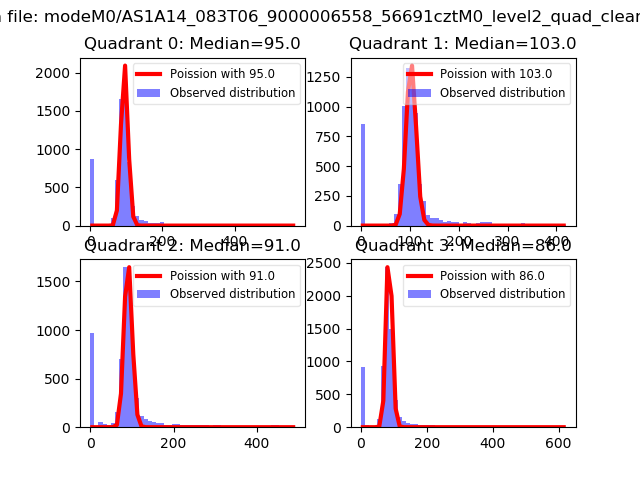

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

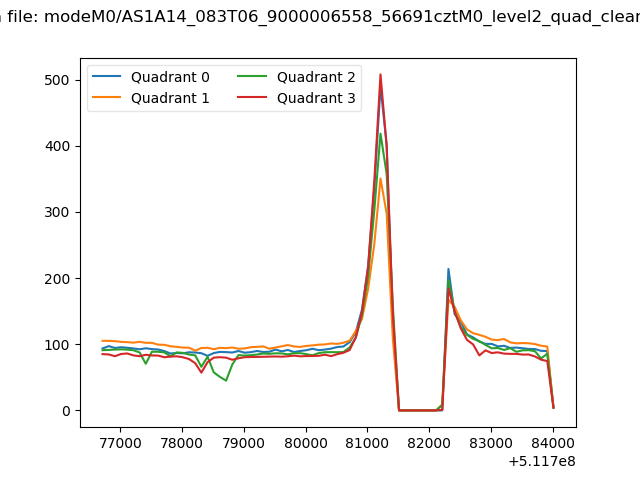

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

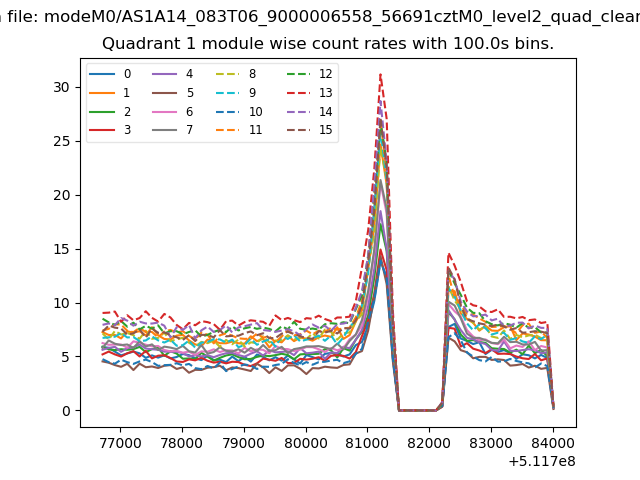

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

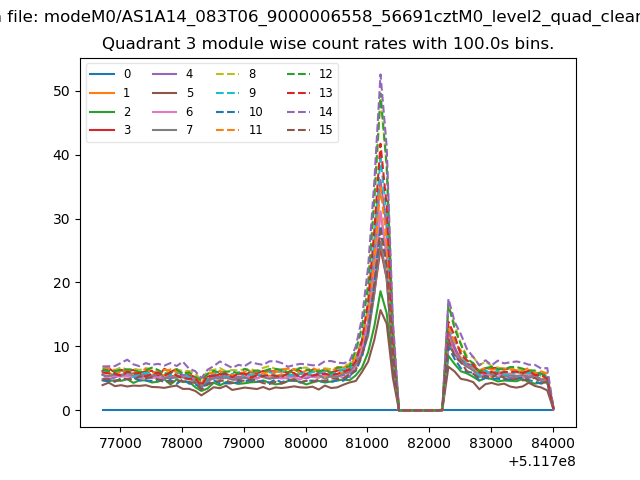

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

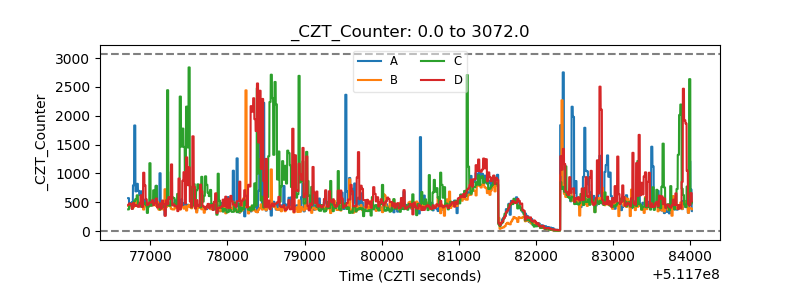

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

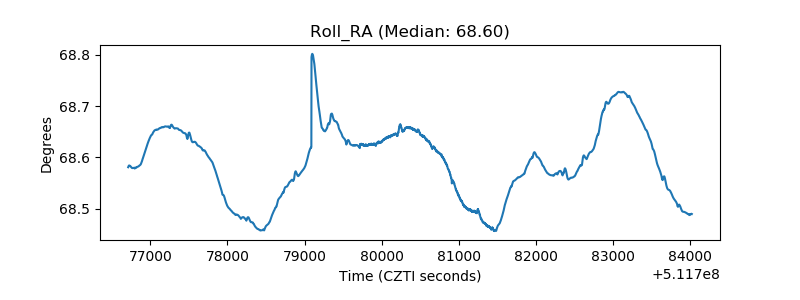

| _Roll_RA |  |
| Veto Counter |  |
