| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56693cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56693cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,807,040 | 91,938,240 |
| Size | 420.4 MB | 87.7 MB |
| Events in quadrant A | 3,907,606 | 598,642 |
| Events in quadrant B | 3,052,630 | 648,888 |
| Events in quadrant C | 5,344,316 | 542,837 |
| Events in quadrant D | 3,518,176 | 549,434 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16292 | 1 |
| B | 0 | 13602 | 1 |
| C | 0 | 20386 | 1 |
| D | 0 | 15069 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6358 | 215 | 3.381567% |
| B | 6357 | 119 | 1.871952% |
| C | 6358 | 683 | 10.742372% |
| D | 6358 | 143 | 2.249135% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7288 | 6359 | 101 | 101 | 1.39% | 1.59% |  |
| B | 7287 | 6358 | 39 | 39 | 0.54% | 0.61% |  |
| C | 7288 | 6359 | 652 | 652 | 8.95% | 10.25% |  |
| D | 7288 | 6359 | 80 | 80 | 1.10% | 1.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 477080 | 2831.61 | 676 | 660 | 168.3 |
| A | 7 | 64 | 237418 | 1407.18 | 676 | 660 | 168.3 |
| A | 4 | 249 | 206117 | 1221.14 | 676 | 660 | 168.3 |
| B | 7 | 252 | 109262 | 755.21 | 671 | 646 | 143.8 |
| B | 10 | 247 | 55772 | 383.29 | 671 | 646 | 143.8 |
| B | 4 | 21 | 51094 | 350.77 | 671 | 646 | 143.8 |
| C | 15 | 230 | 1788805 | 10138.68 | 639 | 633 | 176.4 |
| C | 13 | 3 | 821075 | 4651.79 | 639 | 633 | 176.4 |
| C | 6 | 223 | 114300 | 644.48 | 639 | 633 | 176.4 |
| D | 2 | 249 | 401069 | 2151.27 | 660 | 630 | 186.1 |
| D | 7 | 96 | 104953 | 560.45 | 660 | 630 | 186.1 |
| D | 8 | 240 | 68619 | 365.26 | 660 | 630 | 186.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

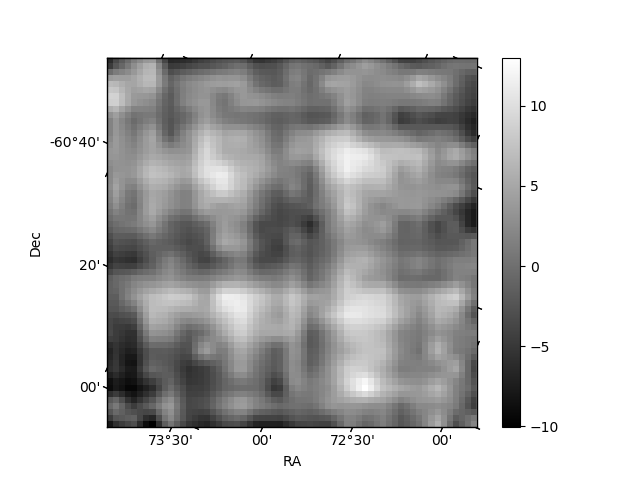

| Plot type | Count rate plots | Images |
|---|---|---|

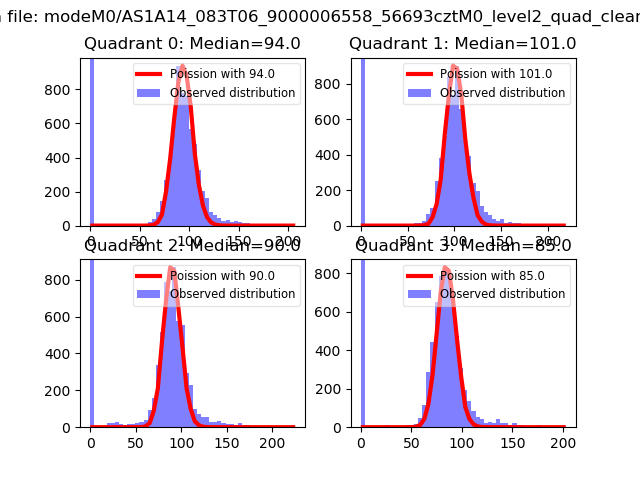

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

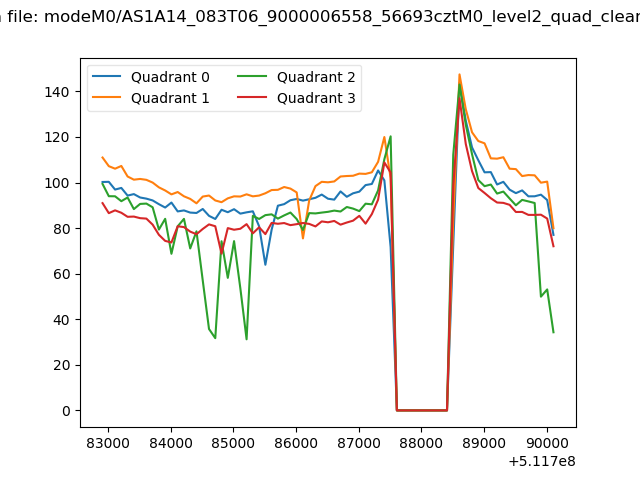

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

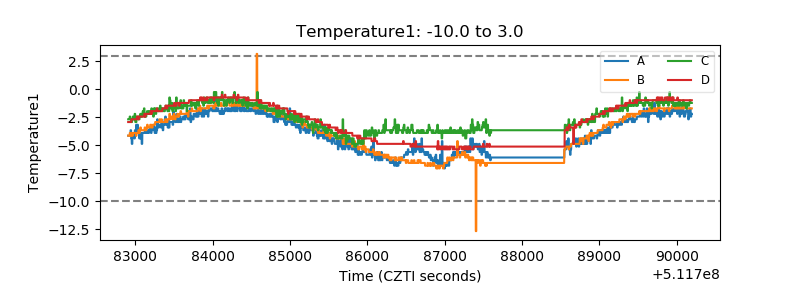

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

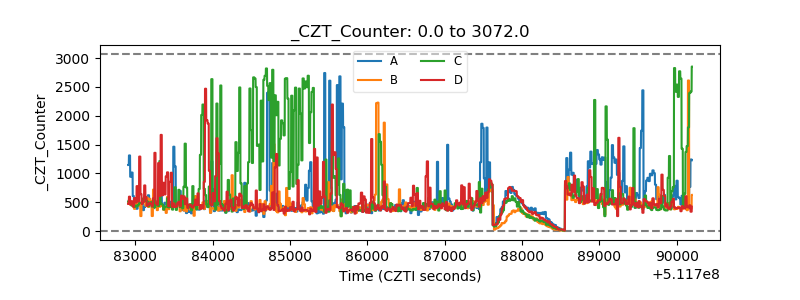

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

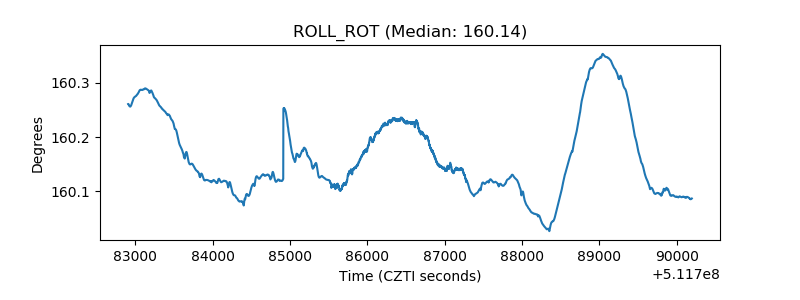

| _ROLL_ROT |  |
| _Roll_DEC |  |

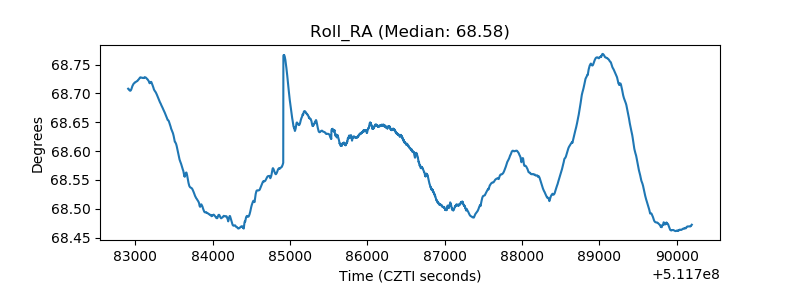

| _Roll_RA |  |
| Veto Counter |  |
