| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56705cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56705cztM0_level2_quad_clean.evt |
| Size (bytes) | 574,784,640 | 91,123,200 |
| Size | 548.2 MB | 86.9 MB |
| Events in quadrant A | 4,910,064 | 613,435 |
| Events in quadrant B | 6,546,713 | 593,748 |
| Events in quadrant C | 5,309,466 | 543,373 |
| Events in quadrant D | 3,988,991 | 540,240 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19129 | 1 |
| B | 0 | 24161 | 1 |
| C | 0 | 20572 | 1 |
| D | 0 | 16724 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6715 | 344 | 5.122859% |
| B | 6715 | 1081 | 16.098287% |
| C | 6716 | 787 | 11.718285% |
| D | 6716 | 349 | 5.196546% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

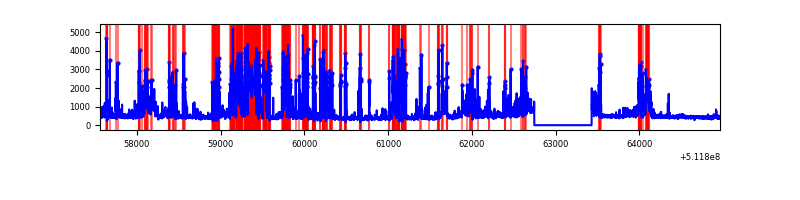

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7400 | 6715 | 182 | 182 | 2.46% | 2.71% |  |
| B | 7400 | 6715 | 766 | 766 | 10.35% | 11.41% |  |
| C | 7401 | 6716 | 550 | 550 | 7.43% | 8.19% |  |
| D | 7401 | 6716 | 263 | 263 | 3.55% | 3.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1529054 | 8711.08 | 711 | 691 | 175.5 |
| A | 3 | 62 | 351873 | 2001.6 | 711 | 691 | 175.5 |
| A | 8 | 26 | 127364 | 721.99 | 711 | 691 | 175.5 |
| B | 5 | 185 | 3454988 | 23626.62 | 679 | 653 | 146.2 |
| B | 10 | 247 | 73111 | 495.59 | 679 | 653 | 146.2 |
| B | 0 | 63 | 66699 | 451.73 | 679 | 653 | 146.2 |
| C | 13 | 3 | 2300864 | 12572.78 | 664 | 655 | 183.0 |
| C | 12 | 252 | 158634 | 863.5 | 664 | 655 | 183.0 |
| C | 15 | 230 | 94354 | 512.15 | 664 | 655 | 183.0 |
| D | 3 | 12 | 750952 | 3862.53 | 690 | 660 | 194.2 |
| D | 2 | 249 | 330108 | 1696.01 | 690 | 660 | 194.2 |
| D | 5 | 173 | 59253 | 301.64 | 690 | 660 | 194.2 |

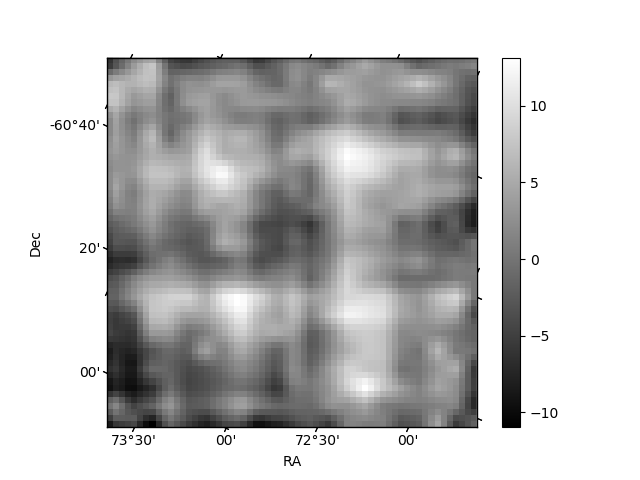

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

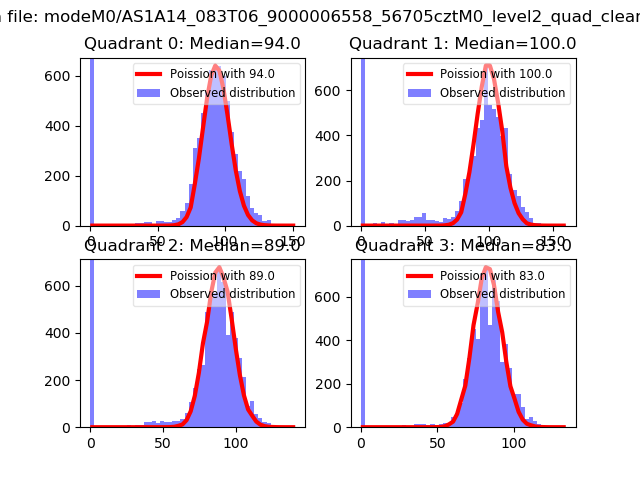

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

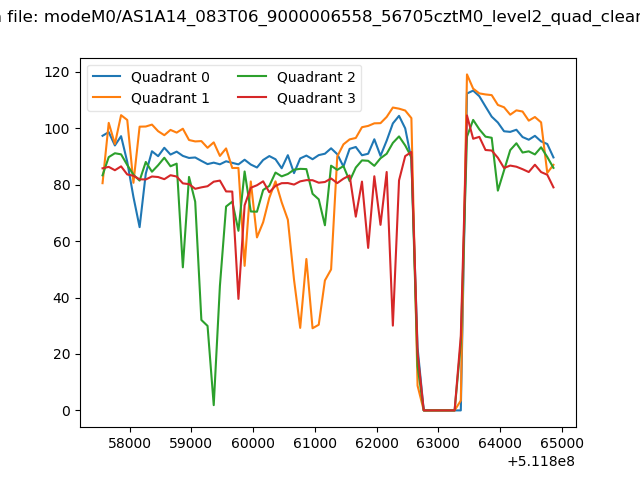

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

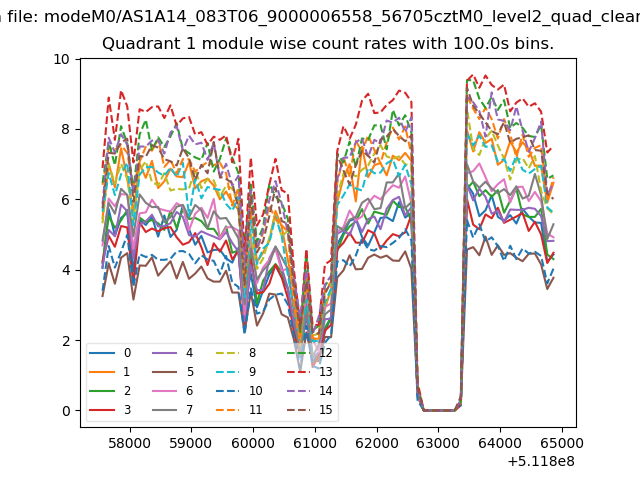

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

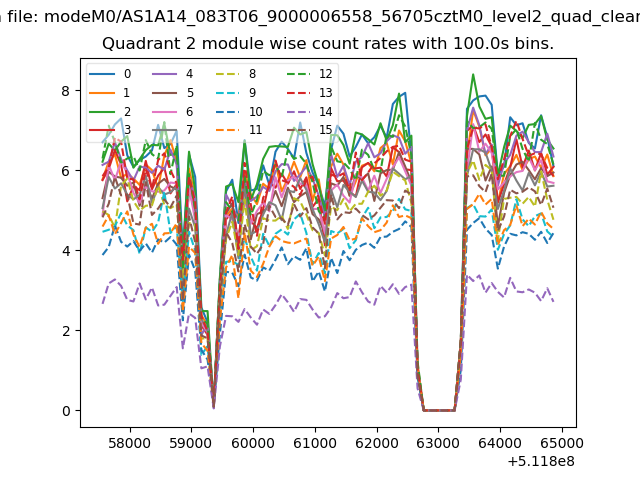

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

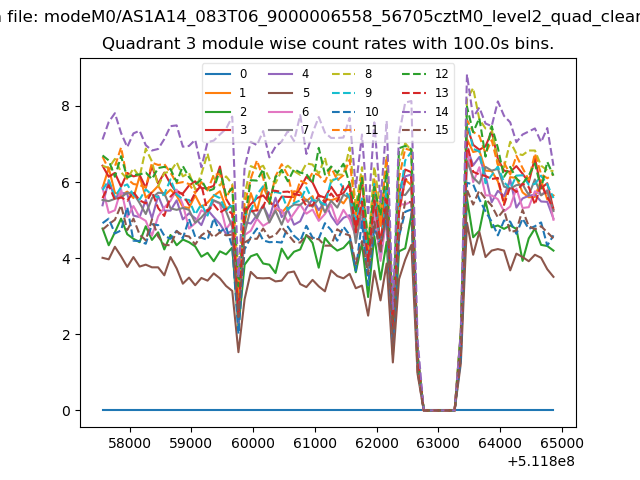

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

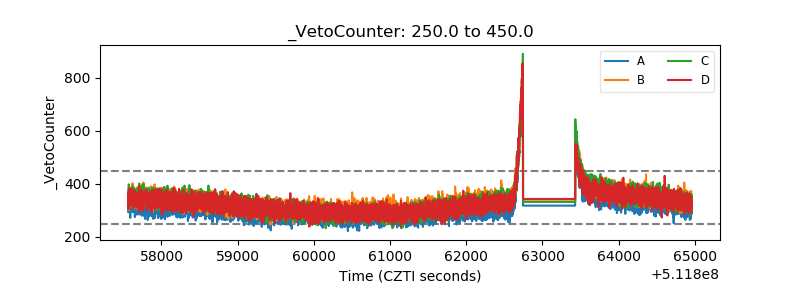

| Veto Counter |  |
