| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56709cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56709cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,604,160 | 83,033,280 |
| Size | 482.2 MB | 79.2 MB |
| Events in quadrant A | 3,909,267 | 545,003 |
| Events in quadrant B | 5,474,808 | 556,650 |
| Events in quadrant C | 5,641,163 | 498,470 |
| Events in quadrant D | 3,232,602 | 502,143 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15816 | 1 |
| B | 0 | 20240 | 5 |
| C | 0 | 20935 | 1 |
| D | 0 | 13861 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5900 | 382 | 6.474576% |
| B | 5898 | 714 | 12.105799% |
| C | 5901 | 539 | 9.134045% |
| D | 5901 | 177 | 2.999492% |

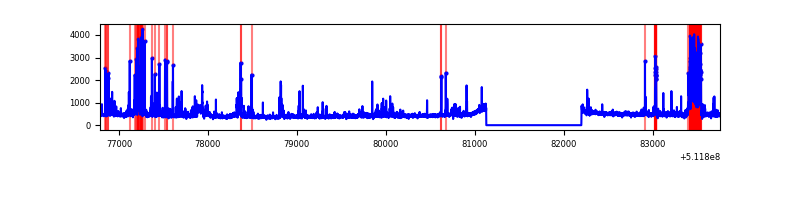

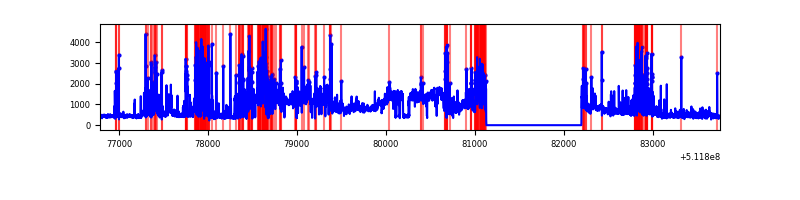

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6970 | 5901 | 280 | 280 | 4.02% | 4.74% |  |
| B | 6970 | 5901 | 566 | 566 | 8.12% | 9.59% |  |
| C | 6971 | 5902 | 329 | 329 | 4.72% | 5.57% |  |
| D | 6971 | 5902 | 125 | 125 | 1.79% | 2.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 1271486 | 8310.23 | 616 | 599 | 152.9 |
| A | 10 | 251 | 131768 | 857.7 | 616 | 599 | 152.9 |
| A | 8 | 26 | 36910 | 237.43 | 616 | 599 | 152.9 |
| B | 5 | 185 | 2755778 | 21274.63 | 606 | 586 | 129.5 |
| B | 10 | 247 | 92272 | 707.97 | 606 | 586 | 129.5 |
| B | 2 | 249 | 60486 | 462.53 | 606 | 586 | 129.5 |
| C | 9 | 38 | 2005000 | 12503.9 | 581 | 573 | 160.3 |
| C | 13 | 3 | 998550 | 6225.52 | 581 | 573 | 160.3 |
| C | 12 | 252 | 103068 | 639.38 | 581 | 573 | 160.3 |
| D | 2 | 249 | 484020 | 2846.08 | 602 | 576 | 169.9 |
| D | 2 | 252 | 78615 | 459.42 | 602 | 576 | 169.9 |
| D | 5 | 173 | 53366 | 310.78 | 602 | 576 | 169.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

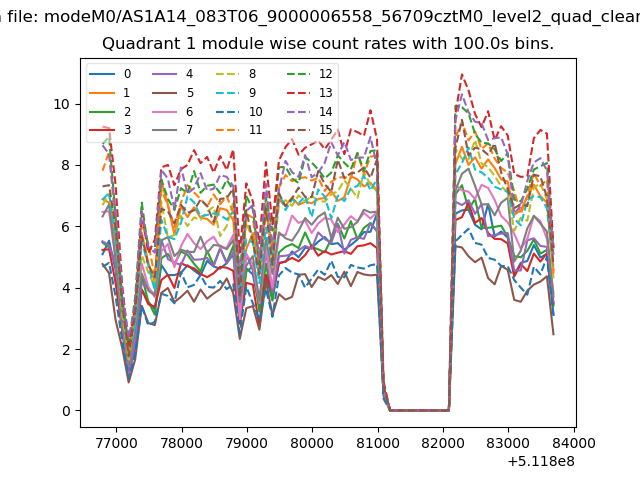

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

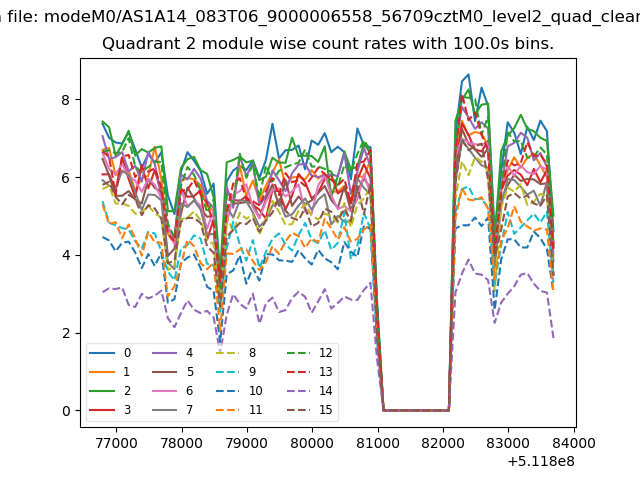

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

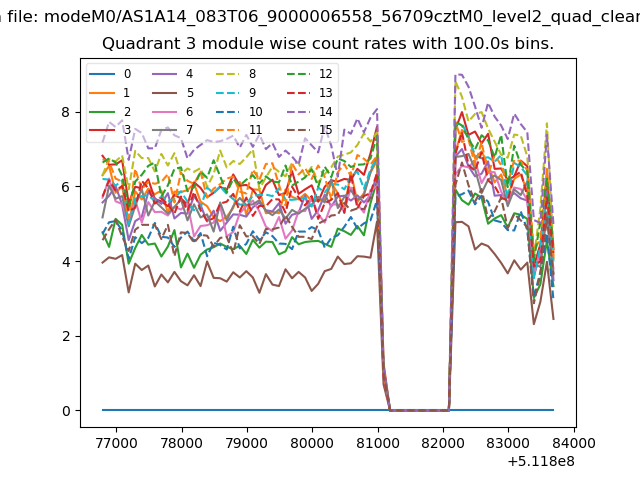

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

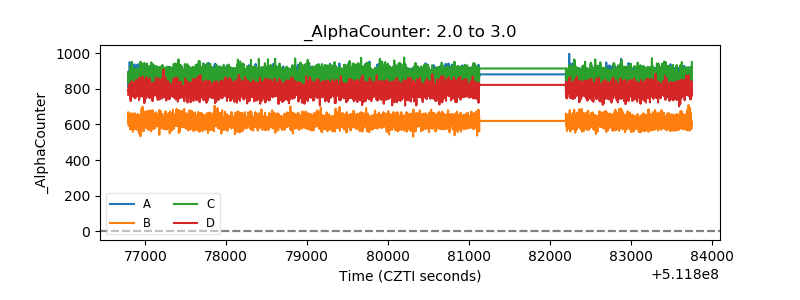

| Alpha Counter |  |

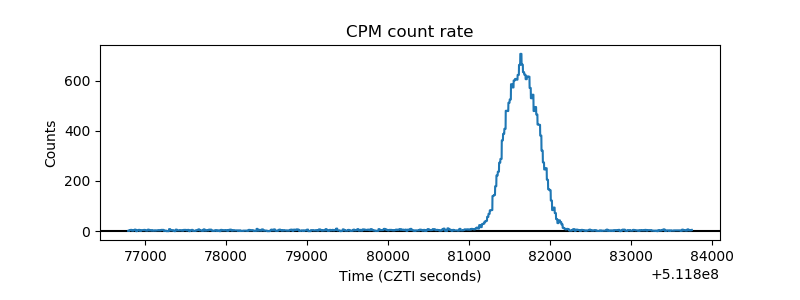

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

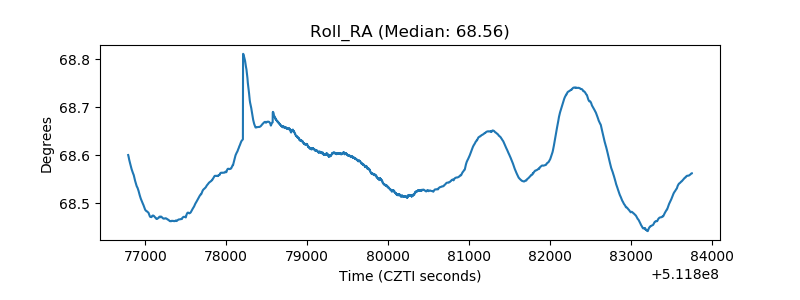

| _Roll_RA |  |
| Veto Counter |  |
